82PAR1MEGLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 82PAR1MEGLF

82PAR1MEGLF: DescriptionPotentiometer, Cermet, 0.5W, 1000000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 2818,; CategoryPassive components The resistor; File Size743KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

82PAR1MEGLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82PAR1MEGLF	-	-	View	Buy Now

82PAR1MEGLF Overview

Potentiometer, Cermet, 0.5W, 1000000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 2818,

82PAR1MEGLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	763694624
Reach Compliance Code	compliant
Country Of Origin	Mexico
YTEOL	7.6
Actuator direction	HORIZONTAL
Actuator type	SCREW
Other features	RATED AC VOLTAGE (V): 200
structure	Rectangular
gang number	1
JESD-609 code	e3
Lead diameter	0.432 mm
Lead length	6.35 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	9.14 mm
Package length	7.11 mm
Package form	PCB Mount
Package width	4.669 mm
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	1000000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	220 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

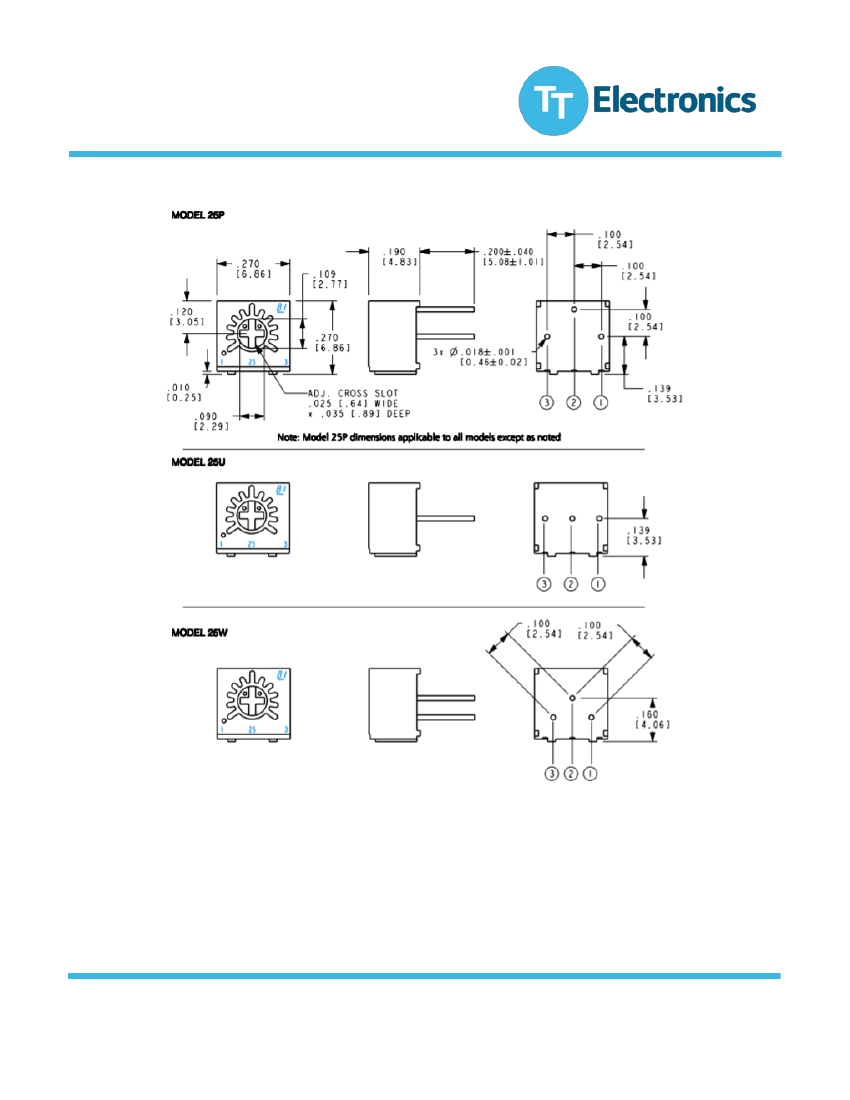

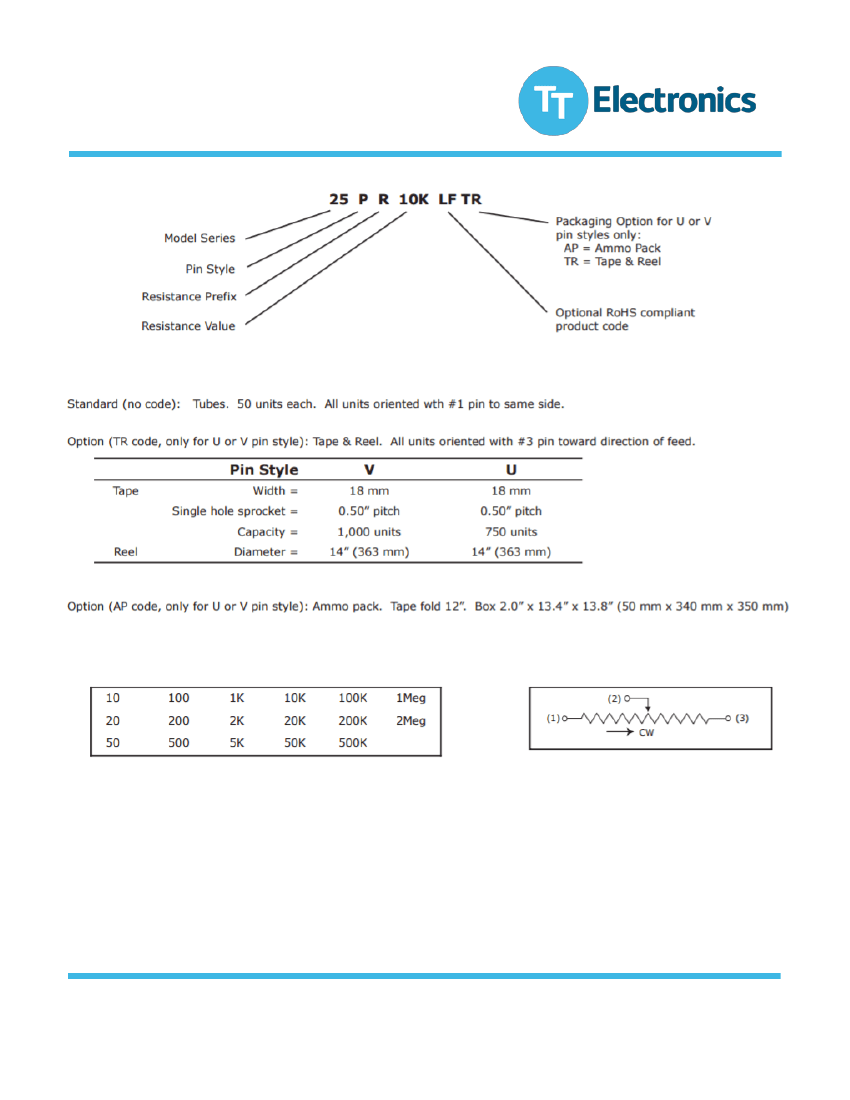

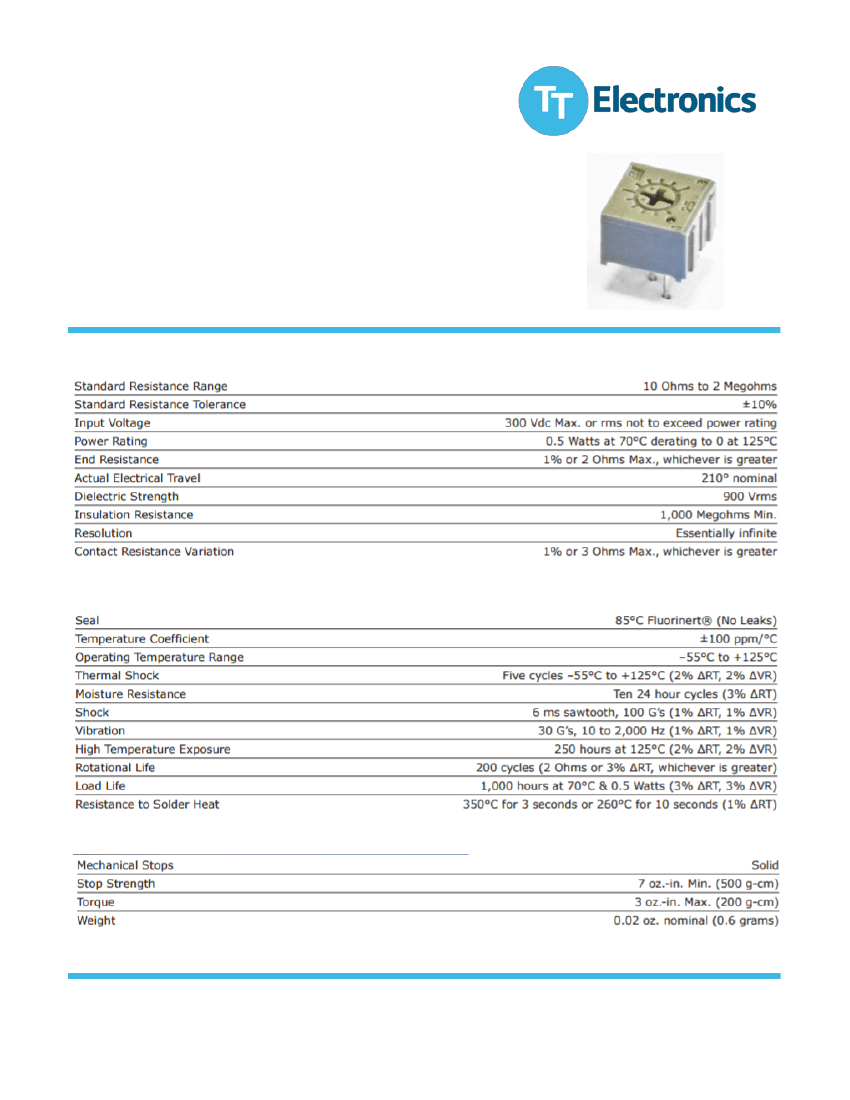

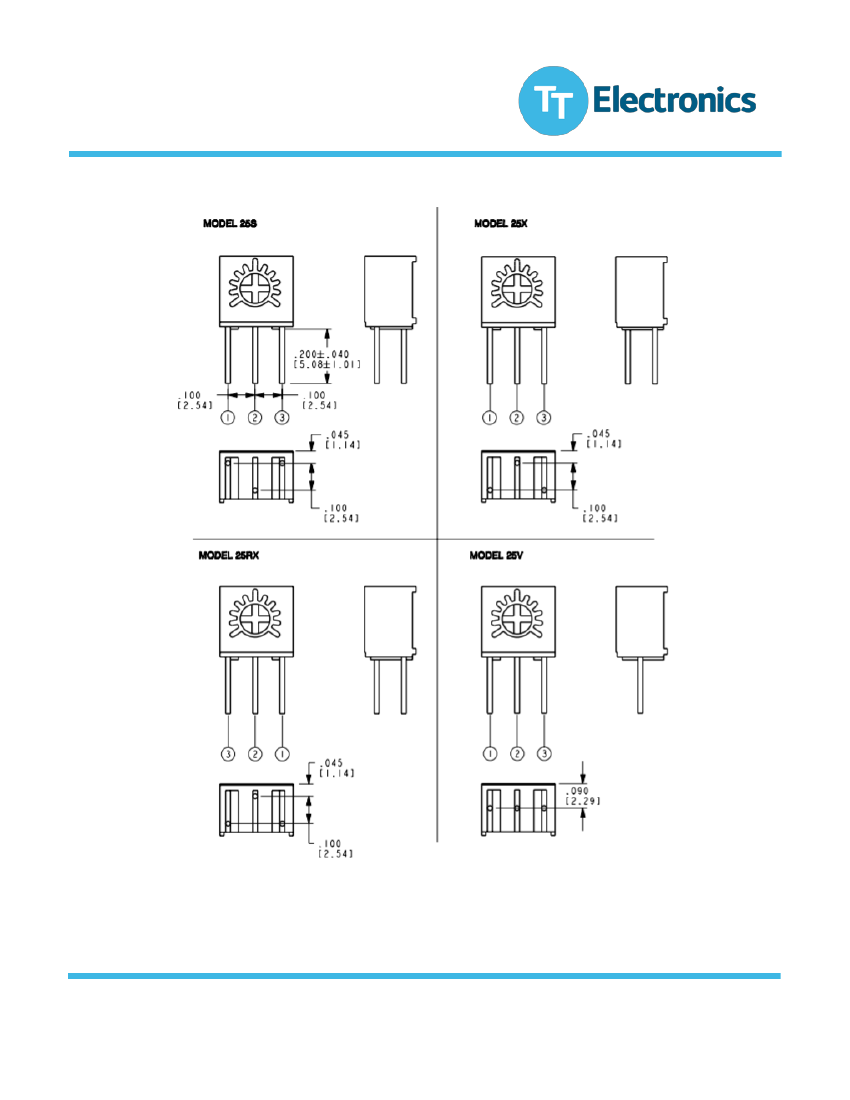

Single Turn Trimmer

Model 25

Features:



1/4” square



Sealed single turn



Cermet



Through-hole

Electrical

Environmental

Mechanical

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
