M85049-77-16N05 datasheet, PDF

Datasheet> All Categories > The connector> M85049-77-16N05

M85049-77-16N05: DescriptionCircular MIL Spec Backshells EMI/RFI ENV SHLL SH SZ16 CLMP SZ05 NI; CategoryThe connector; File Size120KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-77-16N05 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-77-16N05	-	-	View	Buy Now

M85049-77-16N05 Overview

Circular MIL Spec Backshells EMI/RFI ENV SHLL SH SZ16 CLMP SZ05 NI

M85049-77-16N05 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Glenair
Product Category	Circular MIL Spec Backshells
MIL Type	MIL-DTL-38999 I, II
Product	Environmental EMI/RFI Backshells
Shell Style	45 Deg
Shell Size	16
Shell Plating	Electroless Nickel
Shell Material	Aluminum Alloy
Mounting Angle	45 Deg
Mating Style	Rotatable Coupling
Factory Pack Quantity	1

Preview

Download Datasheet

View All

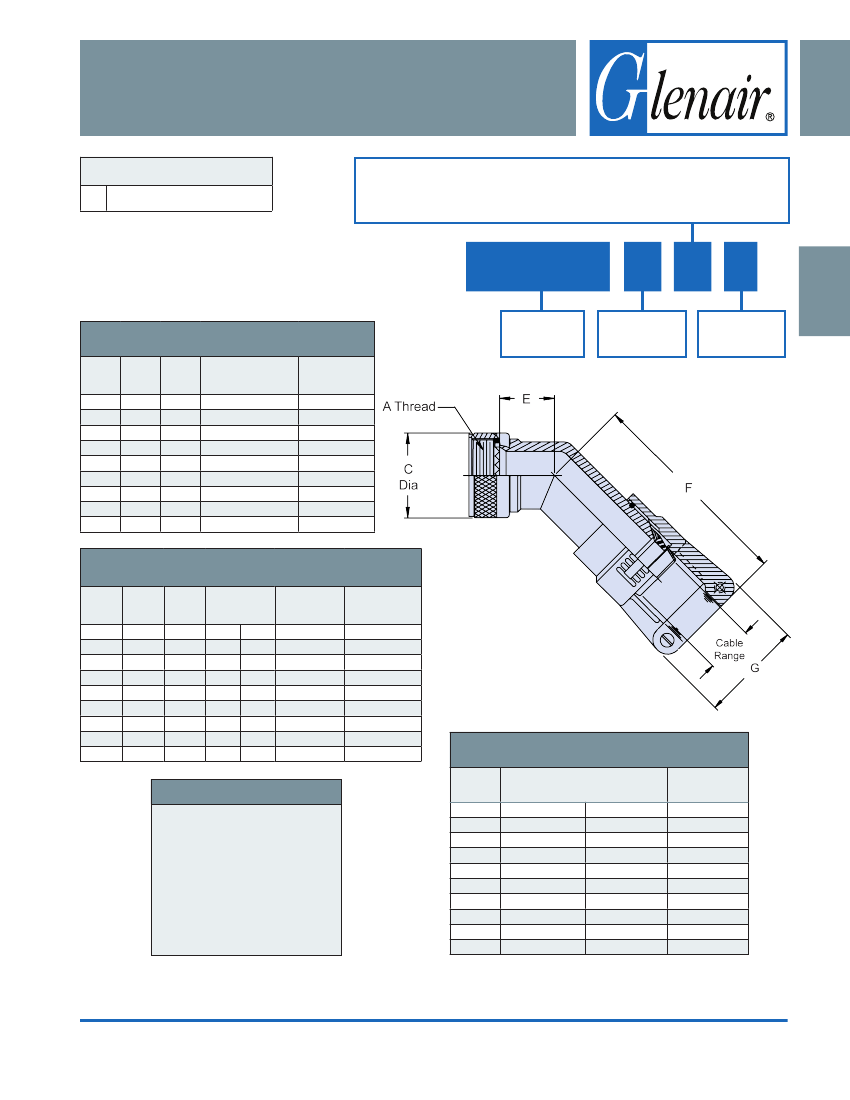

AS85049/77

45° EMI/RFI Environmental Backshell

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab

over Electroless Nickel

Finish

= Aluminum, Nickel Flurocarbon Polymer

= Aluminum, Zinc-Nickel, Black

M85049/77

TABLE I: Shell Size,

Thread and Dimensions

Dash

No.

Series I

Clamp Size

(Tables II & III)

Basic

Part Number

C Dia

Max

Dash Number

(Table I)

Shell

Size

Series II

Shell

Size

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

.750

.850

1.000

1.150

1.250

1.400

1.550

1.650

1.850

(19.1)

(21.6)

(25.4)

(29.2)

(31.8)

(35.6)

(39.4)

(41.9)

(47.0)

TABLE II: Shell Size, Series 1 Reference,

Clamp Size and Dimensions

Dash

No.

Series I

Shell

Size

Series II

Shell

Size

Clamp Size

Min Max

±.062 (1.6)

.398

.458

.518

.588

.678

.868

.958

(10.1)

(11.6)

(13.2)

(14.9)

(17.2)

(22.0)

(24.3)

±.062 (1.6)

3.088

3.148

3.208

3.298

3.408

3.598

3.748

(78.4)

(80.0)

(81.5)

(83.8)

(86.6)

(91.4)

(95.2)

Clamp

Size

TABLE III: Clamp Size,

Cable Range and Dimensions

Min

.062

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

Cable Range

Max

.125

.250

.375

.500

.625

.750

.875

1.000

1.125

1.250

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

(31.8)

Max

.800

1.000

1.100

1.200

1.250

1.400

1.500

1.650

1.750

1.900

(20.3)

(25.4)

(27.9)

(30.5)

(31.8)

(35.6)

(38.1)

(41.9)

(44.5)

(48.3)

(1.6)

(3.2)

(6.4)

(9.5)

(12.7)

(15.9)

(19.1)

(22.2)

(25.4)

(28.6)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as

the accommodation range

for the wire bundle or cable.

Dimensions shown are not

intended for inspection criteria.

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-91

E-Mail: sales@glenair.com
