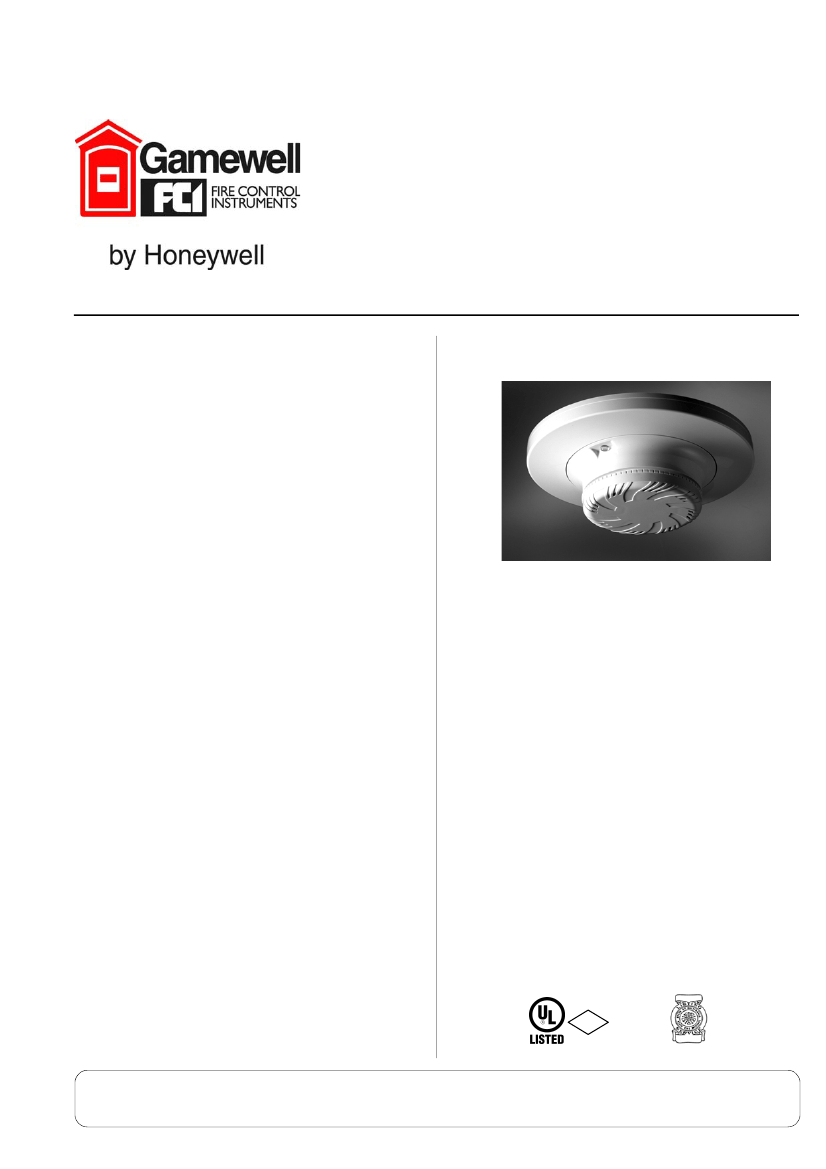

Velociti™ Series
ASD-FILTREX-F
Description
The Gamewell-FCI Velociti™ Series, ASD-FILTREX-F
photoelectronic analog addressable smoke sensor pro-
vides early warning smoke sensing in harsh environments
where traditional smoke sensors are impractical.
The ASD-FILTREX-F sensor combines traditional smoke
photoelectronic sensing technology with a unique smoke
sampling system. A small intake fan draws air and smoke
into the sensing chamber where a filter removes airborne
contaminants and water mist from the air. Two (2), high
density filters remove particulate as small as 25 microns.
One filter can be removed for field cleaning, while the sec-
ond filter is permanent and provides sensor protection dur-
ing cleaning. The fan cycles on and off in a 15% duty cycle
to increase service life and reduce current consumption.
The air delivery system is fully supervised, with internal
circuitry to detect a clogged filter, fan failure, loss of power
or communications. If a filter clogs, the user is alerted to
service the unit. Power-up is automatic when the unit is
cleared.
The Velociti™ Series use a communication protocol that
substantially increases the speed of communication
between the sensors and certain Gamewell-FCI analog
addressable fire alarm controls. These devices operate in
a grouped fashion. If one of the devices in the group has a
status change, the panel’s microprocessor stops the group
poll and concentrates on the single device. The net effect
is response speed up to five times greater than earlier
designs.
This feature allows the sensor to sense smoke while
remaining unaffected by dust, dirt or occasional water
over-spray encountered in hostile environments, which
otherwise would create nuisance alarms or “very dirty”
indications in regular analog sensors. The rugged con-
struction makes the sensor resistant to water spray where
occasional hosing-down cleaning is performed.
Harsh Environment Analog Addressable
Photoelectronic Smoke Sensor
ASD-FILTREX-F
Features
• Suited for harsh environments.
• High performance filter removes particulate of 25
microns.
• Compatible with most Gamewell-FCI analog address-
able series fire control panels.
• Bicolor LEDs flash green whenever the sensor is
addressed, and light steady red on alarm.*
Note: Only the red LED is operative in panels that do not operate
in Velociti™ mode.
Ordering Information
Model
Description
ASD-FILTREX-F Analog PE Smoke Sensor for Harsh
Environments
ADB-FILTREX-F Sensor Base, Flanged
RF-FTX
Replacement filters/caps for detector
(6-pack)
An ISO 9001-2000 Company
SIGNALING
FM
MEA
Velociti™ and E3 Series™ are trademarks of Honeywell International Inc.
S1913
APPROVED
Approved
3023594 219-02-E Vol.VI 07272-0694:263
GAMEWELL-FCI
Specifications are for information only, are not intended for installation purposes, and are subject to change without notice. No responsibility is assumed by Gamewell-FCI for their use.
©2007 Honeywell International Inc. All rights reserved.
www.gamewell-fci.com
9020-0621 Rev. C1 page 1 of 2
12 Clintonville Road, Northford, CT 06472-1610 USA • Tel: (203) 484-7161 • Fax: (203) 484-7118
Description (Continued)
While providing a solution for many hostile environments,
the ASD-FILTREX-F is not considered applicable for use
in corrosive, hazardous or explosive areas or conditions
exceeding the ambient conditions specified in the table.
Sensitivity is tested via a magnet placed against the hous-
ing per the Installation Instructions.
Specifications
Operating Voltage:
Standby Current
(SLC):
Alarm Current (SLC):
Current (Auxiliary):
15 - 32 VDC
.00036 A
.007 A
.006 A standby,
.060 A checking for smoke,
.080 A when checking for airflow.
Operating/Installation
Temperature:
32° to 120° F (0 to 49° C)
Operating Humidity:
10 to 93% (non-condensing)
Dimensions:
4 1/2” H x 4” W x 1 1/4”
(11.4 x 10.1 x 3.2 cm)
GAMEWELL-FCI
12 Clintonville Road, Northford, CT 06472-1610 USA • Tel: (203) 484-7161 • Fax: (203) 484-7118
www.gamewell-fci.com
9020-0621 Rev. C1 page 2 of 2
