Power Entry Modules with Line Filter
https://www.schurter.com /PG06
KFA

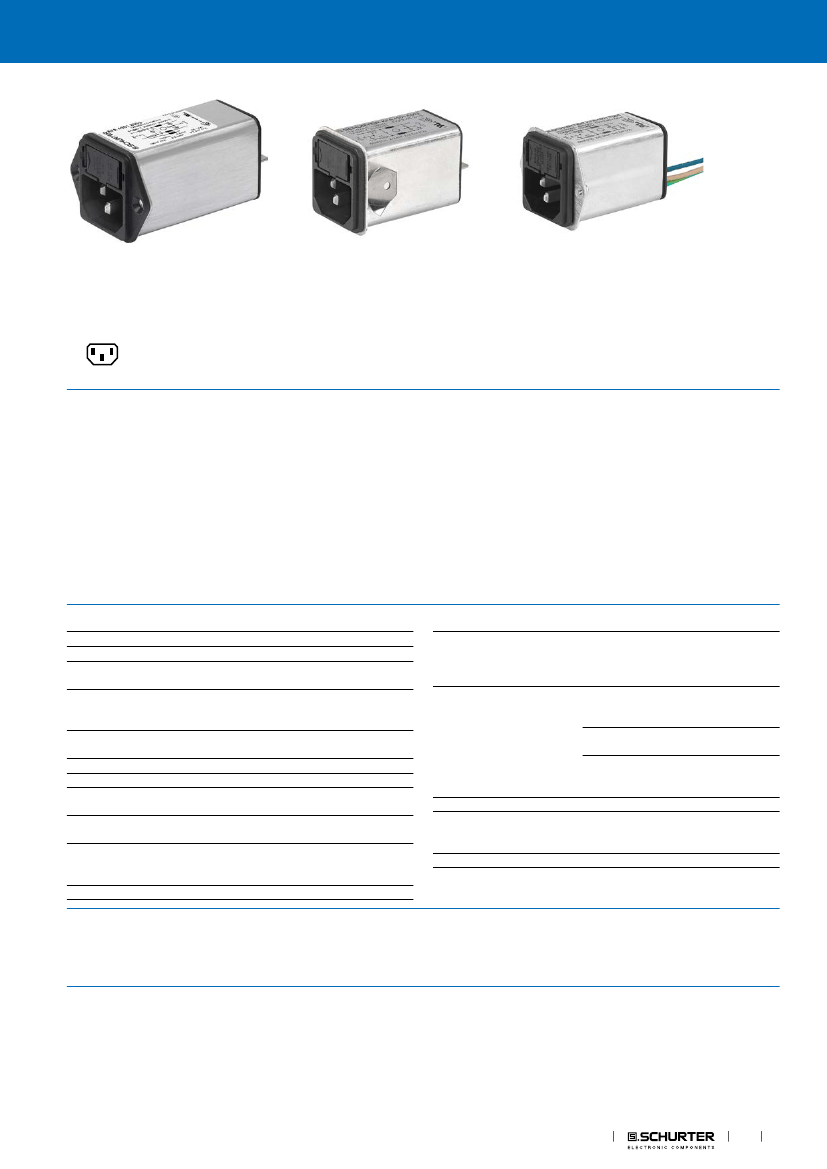

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, optional Voltage Selector (step switch)
Screw-on mounting from front side
Version with ground line choke
without voltage selector
Fuse drawer must be ordered separately (see
accessories).
Snap-in mounting from front side
without voltage selector
Fuse drawer must be ordered separately (see
accessories).
Screw-on mounting from rear side
without voltage selector
Fuse drawer must be ordered separately (see
accessories).
C14
Approvals and Compliances
70° C
See below:
Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side
- 4 Functions :
Appliance Inlet Protection class I , Fuseholder for fuse-links 5 x 20 mm
1- or 2-pole , with or without voltage selector (step switch) , Line filter
in standard and medical version
- V-Lock notch standard
- Quick connect terminals or wires
Characteristics
- Rear side mounting for efficient costsaving assembly
Suitable for assembly in metal plated plastic housings
- All single elements are already wired
- Plug removal necessary for fuse-link replacement
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
- Capacity CX 100 nF
Unique Selling Proposition
-
-
-
-
References
Weblinks
Reduces noise on the ground wire
Interrupts ground loops
High asymmetrical attenuation
V-Lock cord retaining
Alternative: version without line filter
KEA
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Flexible wire AWG18, 150 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 3 mm
Thermoplastic, black, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
1 or 2 pole, Shocksafe category PC2
acc. to IEC 60127-6,
for fuse-links 5 x 20 mm
5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per
pole
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
optional, step, 3 pos.
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 1'700'000 h acc. to MIL-HB-217 F
Fuseholder
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Rated Power Acceptance @
Ta 23 °C
Power Acceptance @ Ta >
23°C
Voltage Selector
Line Filter
MTBF
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
KFA
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: KFA
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
Certificate Number: 40004665 (FKE, FKF, FKV, FKW)
UL File Number: E72928 (FKE, FKF, FKV, FKW)
CCC Certificate Number:
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
KFA

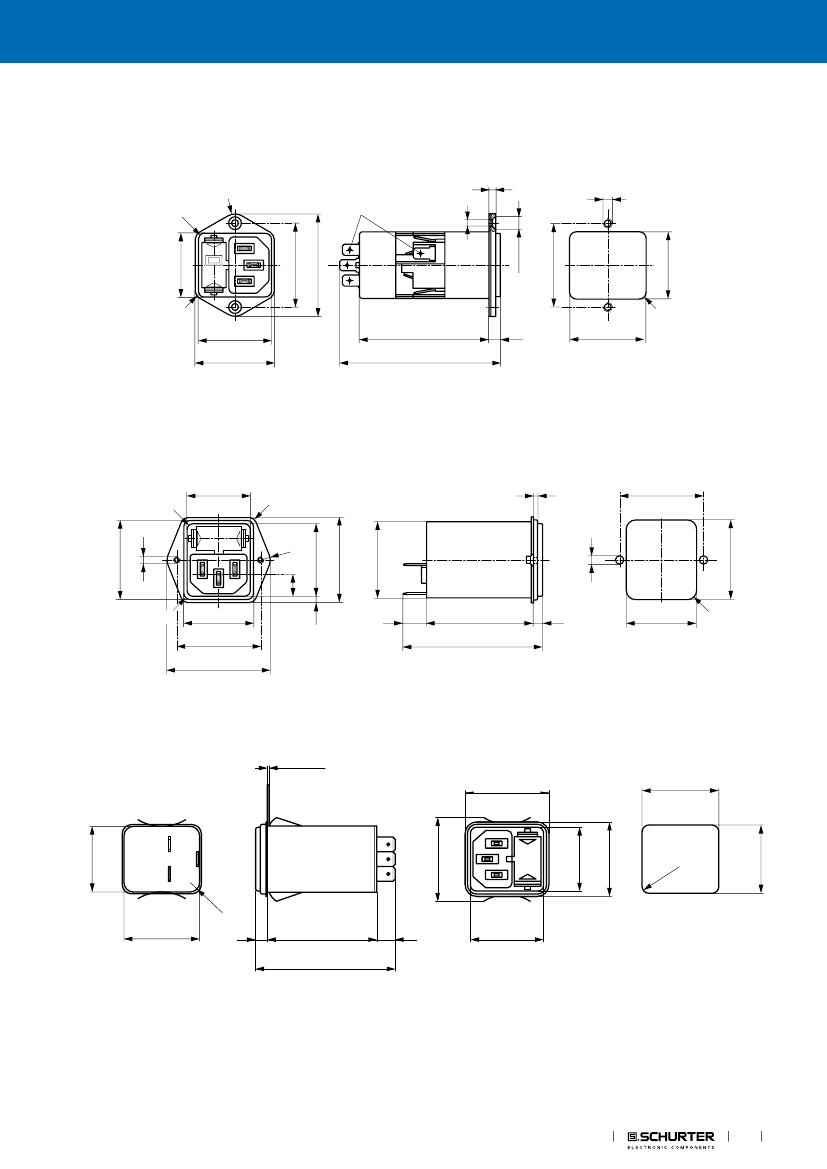

Dimensions [mm]
Screw-on mounting from front side
2.8
R6
R3.1
ø 3.2
6.3x0.8**
4.8x0.8*
M3/ø3.6
ø 6.3x90°
36
±0.15
36
44
230
R4.5
31.2
34
56* 46.2**
69* 60.5**
4.8
33
+0.3
0
R3
-0.2
* with voltage selector
** without voltage selector
Screw-on mounting from rear side
27.2
R 2.5
R5
2.2
36
±0.15
29
±0.3
0
27.2
9.6
2.65
R4
30
36
44.3
9.5
46.8
60.5
4.2
30.3
+0.20
0
R4
Snap-in mounting
0.8 - 3
37 max.
0.15
33
+ 0.00
34.3
0
M3
31.2
36.5
3.6
R4
32.8 x 28.5
34
+0.20
R3
±0
.1
R4
.
1
32.8
5
46
60.5
9.5
(31.4)
EMC Products
3
0.15
29.35
+ 0.00
37 max.
33 max.
(28.8)
(27.4)
KFA
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Screw-on mounting from front side with ground line choke
44
R5
Ø
6.3
36
±0.15
M3 x 0.5
31.2
34
Ø
3.25
R4
27.2
36
9.5
56.2
61
4.8
29
±0.3
R3
-0.2
0
Technical Data of Filter-Components
Rated Current [A]
1
2
4
6
10
1
2
4
6
10
1
2
4
6
10
1
2
4
6
10
1
2
4
6
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version with Ground Line Choke
Standard Version with Ground Line Choke
Standard Version with Ground Line Choke
Standard Version with Ground Line Choke
Standard Version with Ground Line Choke
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Medical Version (M80)
Medical Version (M5) with Ground Line Choke
Medical Version (M5) with Ground Line Choke
Medical Version (M5) with Ground Line Choke
Medical Version (M5) with Ground Line Choke
Medical Version (M5) with Ground Line Choke
Inductance L1/
L2 [mH]
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
2 x 10
2x4
2 x 1.5
2 x 0.8
2 x 0.3
Inductance L3
[mH]
-
-
-
-
-
0.6
0.6
0.6
0.6
0.6
-
-
-
-
-
-
-
-
-
-
0.15
0.6
0.6
0.6
0.15
Capacitance CX
[nF]
68
68
68
68
68
100
100
100
100
100
68
68
68
68
68
68
68
68
68
68
100
100
100
100
100
Capacitance CY
[nF]
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
0.47
0.47
0.47
0.47
0.47
-
-
-
-
-
R [MΩ]
-
-
-
-
-
-
-
-
-
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
EMC Products
33
+0.3
0
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
KFA

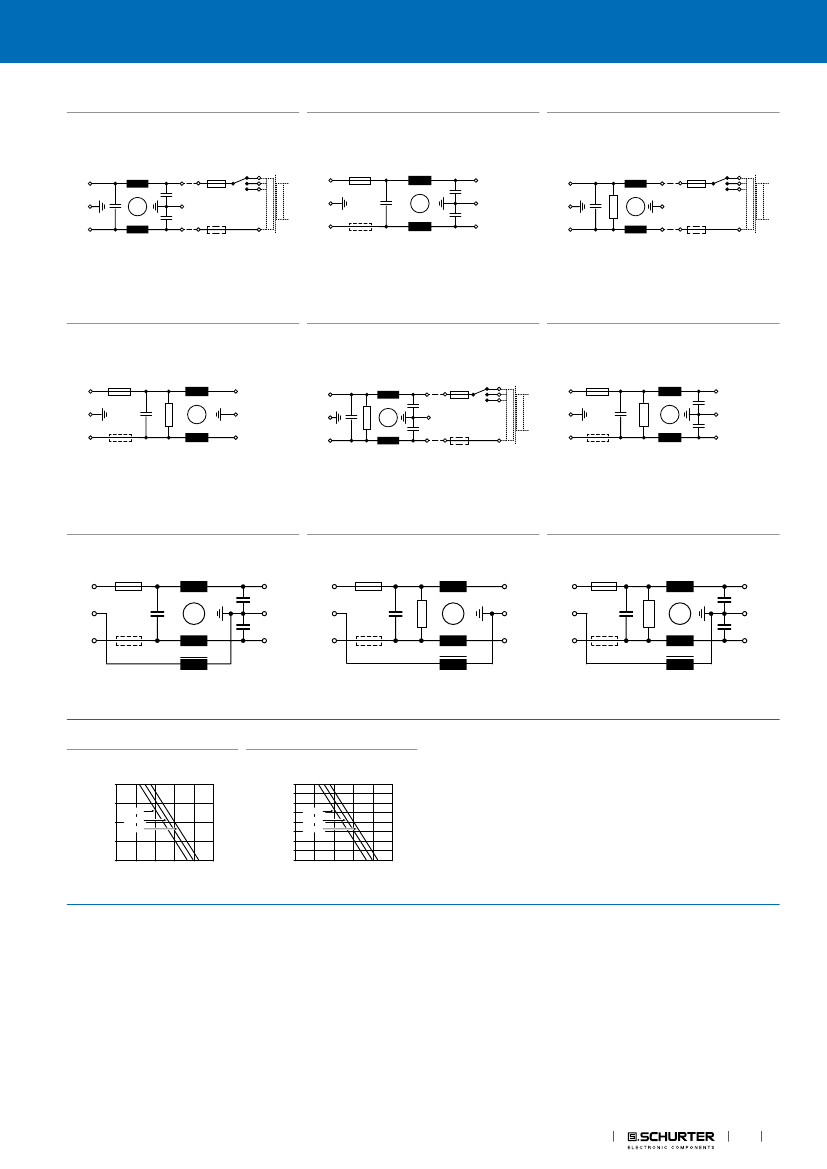

Diagrams
Standard version
with voltage selector
3
2
1
Standard version
without voltage selector
Medical version (M5)
with voltage selector
3
2
1
L
1)
PE
N
Cx
X)
L1
Cy
L2
Cy
F1
L
2)
1)
PE
N
F1
F2
Cx
L’
L1
Cy
L2
Cy
2)
PE’
N’
L
1)
PE
N
Cx
R
X)
L1
F1
2)
PE’
X)
F2
5
PE’
L2
X)
F2
5
x) external connection to be made by the customer
1) Line
2) Load
1) Line
2) Load
x) external connection to be made by the customer
1) Line
2) Load
Medical version (M5)
without voltage selector
Medical version (M80)
with voltage selector
3
2
1
Medical version (M80)
without voltage selector
L
1)
PE
N
F1
F2
Cx
R
L’
L1
2)
PE’
L
1)
PE
N
R
Cx
X)
L1
Cy
L2
Cy
F1
L
2)
1)
PE
N
F1
F2
Cx
R
L’
L1
Cy
L2
Cy
2)
PE’
N’
PE’
X)
F2
5
L2
N’
1) Line
2) Load
x) external connection to be made by the customer
1) Line
2) Load
1) Line
2) Load
Standard version with ground line choke
L
1)
PE
N
F2
L’
L1
Cy
Cx
L2
L3
Cy
Medical version (M5) with ground line choke
L
2)
PE’
N’
1)
PE
N
F2
L’
L1
Cx
R
L2
Medical version (M80) with ground line choke
L
2)
1)
PE
N
F2
L’
L1
Cx
R
L2
L3
Cy
Cy
F1
F1
F1
2)
PE’
N’
PE’
N’
L3
1) Line
2) Load
1) Line
2) Load
1) Line
2) Load
Derating Curves
1-pole
Admissible power
acceptance in Watt
2.0
2-pole
Admissible power
acceptance in Watt
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
1.5
I = 1.0 I
n
1.0
I = 0.7 I
n
I = < < I
n
0.5
0.0
0
20
40
60
80
100
Ambient air temperature T
a
°C
Ambient air temperature T
a
°C
EMC Products
5
Power technology
京公网安备 11010802033920号
EEWORLD
