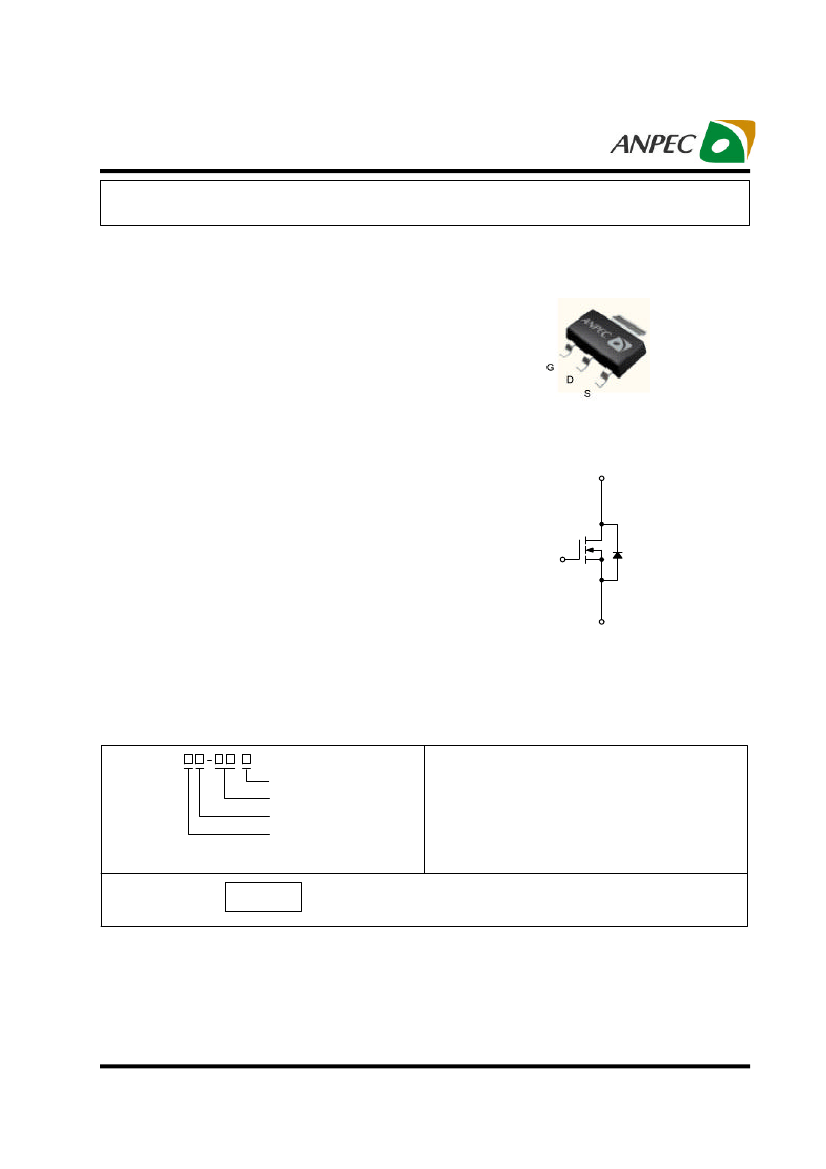

APM2054NV

N-Channel Enhancement Mode MOSFET

Features

•

20V/5A,

DS(ON)

= 35mΩ (typ.) @ V

= 10V

DS(ON)

= 45m

Ω

(typ.) @ V

= 4.5V

DS(ON)

= 110m

Ω

(typ.) @ V

= 2.5V

Pin Description

•

Super High Dense Cell Design

Reliable and Rugged

Lead Free Available (RoHS Compliant)

Top View of SOT-223

(2)

Applications

•

Switching Regulators

Switching Converters

(1)

(3)

N-Channel MOSFET

Ordering and Marking Information

APM2054N

Lead Free Code

Handling Code

Temp. Range

Package Code

V : SOT-223

Operating Junction Temp. Range

C : -55 to 150

Handling Code

TU : Tube

TR : Tape & Reel

Lead Free Code

L : Lead Free Device Blank : Original Device

XXXXX - Date Code

APM2054N V :

APM2054N

XXXXX

Note: ANPEC lead-free products contain molding compounds/die attach materials and 100% matte tin plate

termination finish; which are fully compliant with RoHS and compatible with both SnPb and lead-free soldiering

operations. ANPEC lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J STD-020C

for MSL classification at lead-free peak reflow temperature.

ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise

customers to obtain the latest version of relevant information to verify before placing orders.

ANPEC Electronics Corp.

Rev. B.2 - Apr., 2005

www.anpec.com.tw
