BL-S1126 datasheet, PDF - EEWORLD Datasheet

BL-S1126: DescriptionVisible LED, Diffused; CategoryLED optoelectronic/LED photoelectric; File Size380KB，3 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

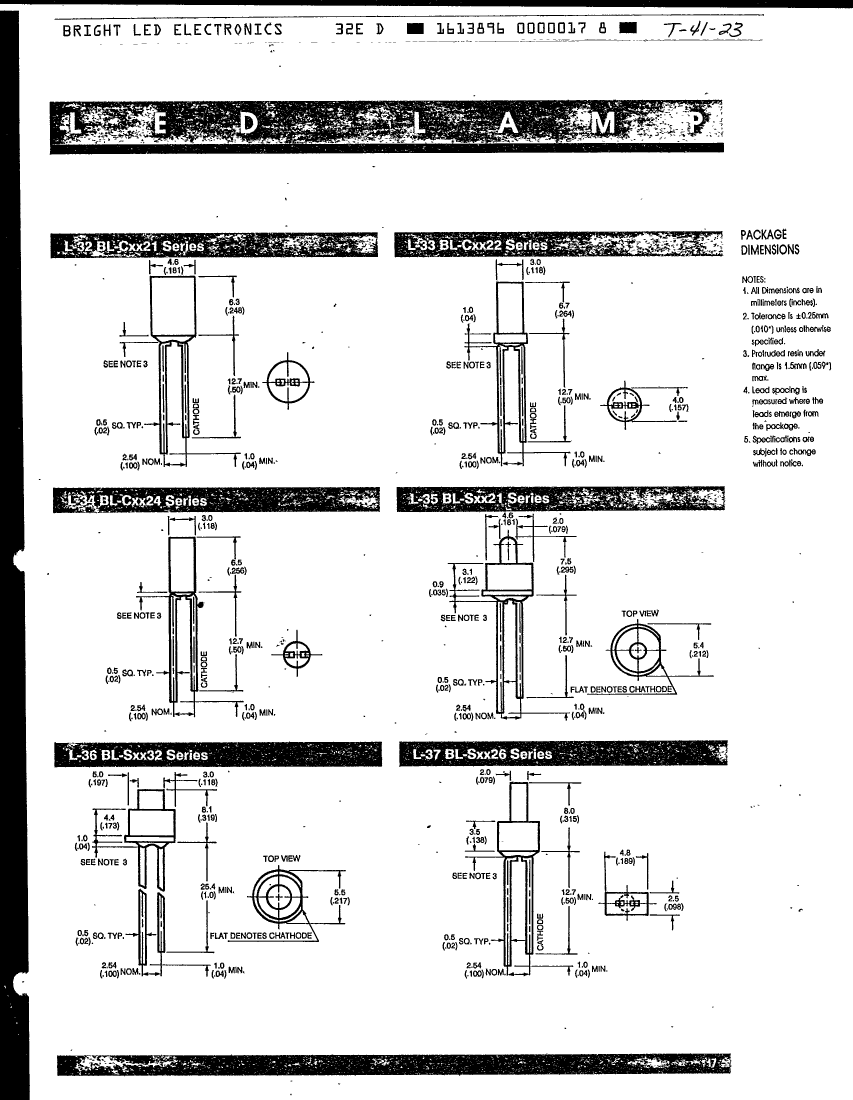

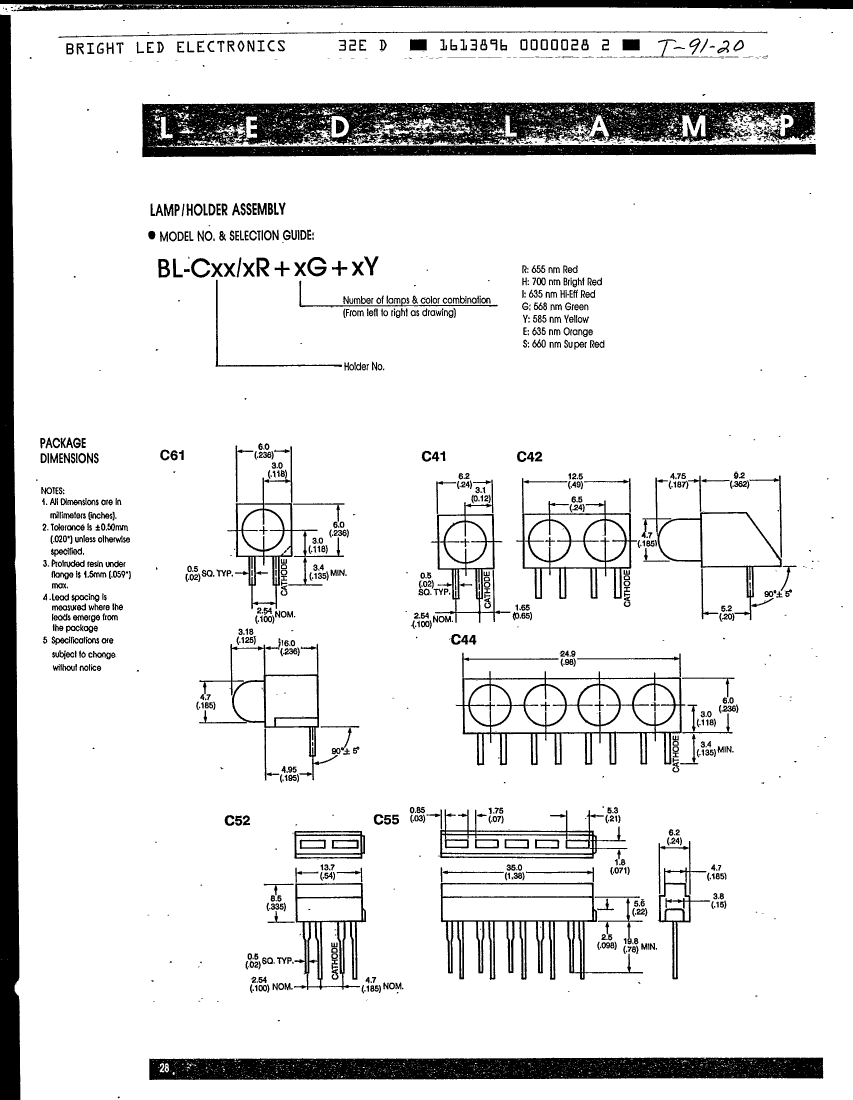

BL-S1126 Overview

Visible LED, Diffused

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	BRIGHT
Reach Compliance Code	unknown
color@wavelength	Red
Maximum forward voltage	2 V
JESD-609 code	e0
Lens type	DIFFUSED
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
total height	9.5 mm
peak wavelength	655 nm
Terminal surface	Tin/Lead (Sn/Pb)
perspective	120 deg
Base Number Matches	1

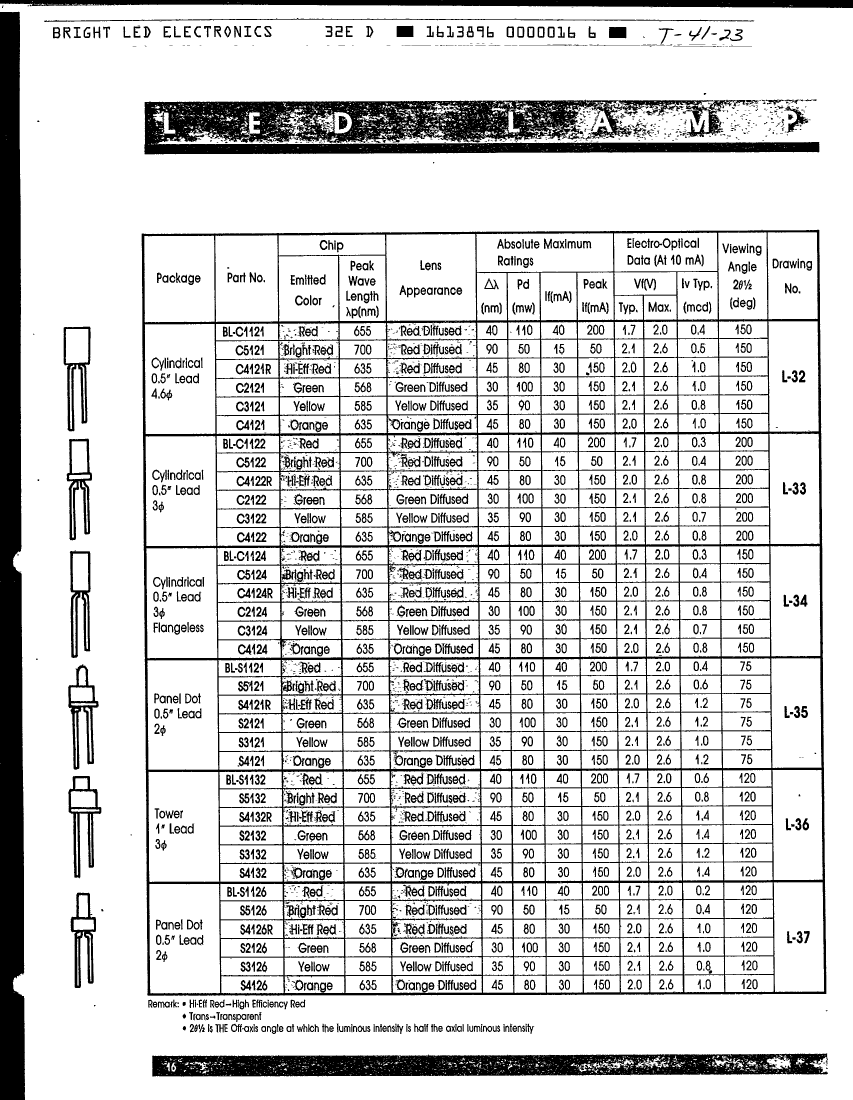

	BL-S1126	BL-S1121	BL-C2124	BL-C1124	BL-C2122	BL-C2121	BL-S4121	BL-S4121R	BL-S5126	BL-C1122
Description	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused	Visible LED, Diffused
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color@wavelength	Red	Red	Green	Red	Green	Green	Amber	Red	Red	Red
Maximum forward voltage	2 V	2 V	2.6 V	2 V	2.6 V	2.6 V	2.6 V	2.6 V	2.6 V	2 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
total height	9.5 mm	9 mm	7.8 mm	7.8 mm	8.2 mm	7.8 mm	9 mm	9 mm	9.5 mm	8.2 mm
peak wavelength	655 nm	655 nm	568 nm	655 nm	568 nm	568 nm	635 nm	635 nm	700 nm	655 nm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
perspective	120 deg	75 deg	150 deg	150 deg	200 deg	150 deg	75 deg	75 deg	120 deg	200 deg
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	-	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT
Base Number Matches	1	1	1	1	1	1	-	-	-	-
