HD36-24-47SE-072

Description
PL HD30 24 SHL 47 WY E SEAL ADP
CategoryThe connector    The connector
File Size229KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

HD36-24-47SE-072 Online Shopping

Suppliers Part Number Price MOQ In stock
HD36-24-47SE-072 - - View Buy Now

HD36-24-47SE-072 Overview

PL HD30 24 SHL 47 WY E SEAL ADP

HD36-24-47SE-072 Parametric

Parameter NameAttribute value
Brand NameDEUTSCH
Is it Rohs certified?conform to
Objectid7258591211
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionPLG, 47P, AL, E, THD ADPT DRAIN, 16/20,S
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2023-07-25 07:22:25
Back shell typeSOLID
body width1.942 inch
subject depth1.942 inch
body length2.57 inch
Body/casing typePLUG
Connector typeCIRCULAR CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact styleRND PIN-SKT
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
Minimum insulation diameter0.04 inch
MIL complianceNO
Power Connector Ratings115/230VAC
Mixed contactsNO
Installation option 2W/STRAIN RELIEF
Installation typeCABLE
Number of connectorsONE
Number of ports1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
polarization keyPOLARIZED
Rated current (signal)13 A
Rated voltage250 V
Shell materialALUMINUM ALLOY
Total number of contacts47
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
3
2015
LOC
2
DIST
1
C
COPYRIGHT 2015
BY TE CONNECTIVITY
-
-
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
NC
NEW RELEASE PER E.O. P19972
REVISED PER E.O. P21009
REVISED PER ECO-15-001798
REVISED PER PCN :E-17-011464
14AUG2008
19JUL2011
19MAR2015
18AUG2017
-
-
PV
DD
RDR
RDR
DM
DM
D
A1
A2
A
D
MAIN POLARIZING KEY
(2.570 )
[65.28 ]
C
1.942
+.000
-.100
+0.00
49.32
-2.54
OVER KNURL
HD36-24-XXP/SX-072
3D VIEW
C
[
]
B
ADAPTER
3.
MATERIAL:
PLUG HOUSING: AL 6000 SERIES
ADAPTER: AL 6000 SERIES
THE CONNECTOR MATES WITH HD34-24-XXS/PX-XXXX
X = SEAL DESIGNATION, XX = NUMBER OF CAVITIES,
XXXX = MODIFICATION DESIGNATION.
FOR ARRANGEMENT OF CONTACT LOCATION SEE DRAWING 0425-014-2400.
MATERIAL
B
3
1.4375-18UNEF-2A
2.
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
INCHES[mm]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
1.
NOTES:
SEE NOTE
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
FINISH
-
PRODUCT SPEC
-
-
0425-016-0000
-
APPLICATION SPEC
.01 [ # 0.254]
-
0425-015-0000
0 $ 30'0"
WEIGHT
30JUL2008
I.GRANTCHAROVA
CHK
14AUG2008
B. BAYFORD
APVD
12AUG2008
S. BEARD
DWN
TE Connectivity
NAME
-
Customer Drawing
1470-19 (3/11)
A3
SIZE
CAGE CODE

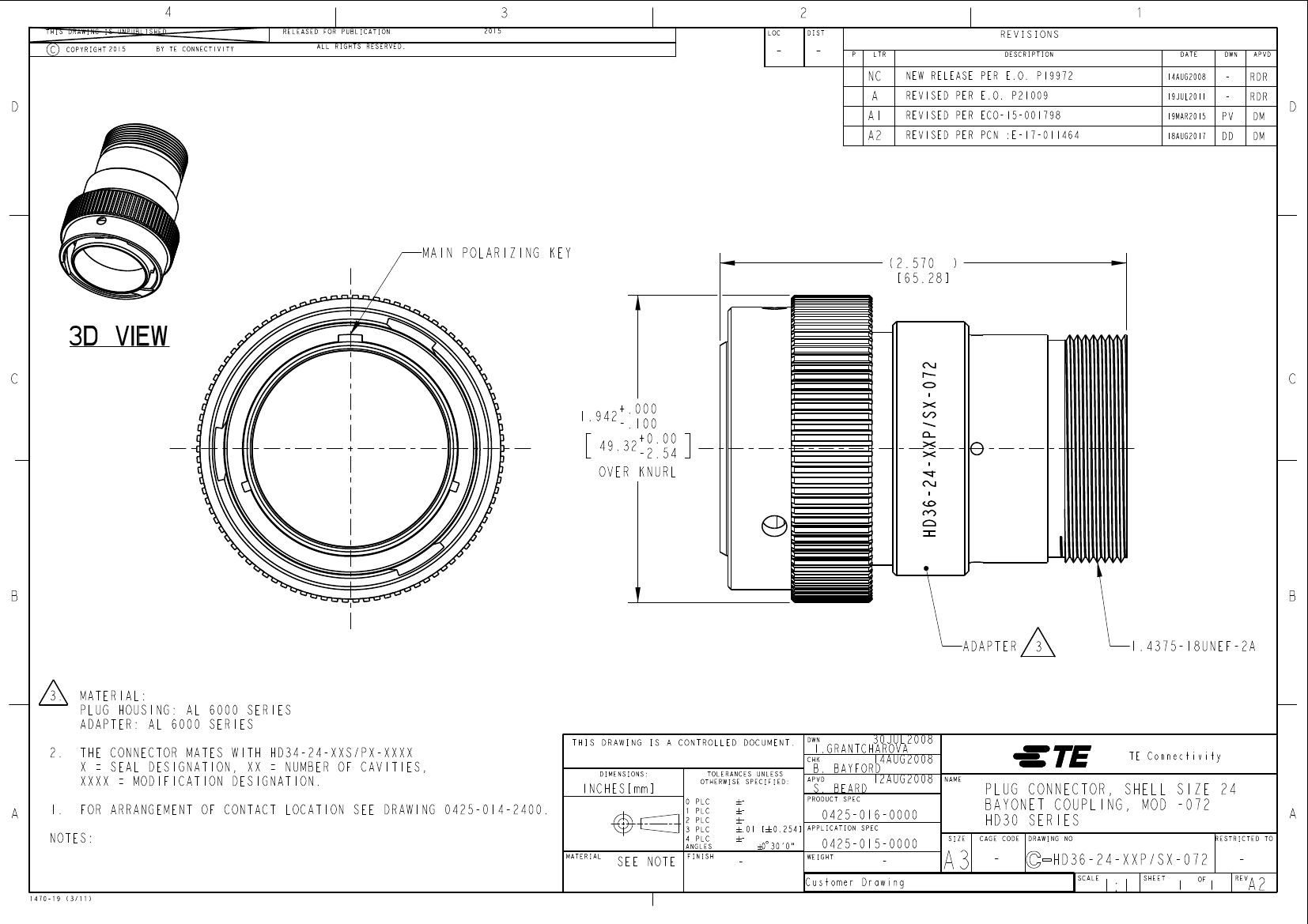

PLUG CONNECTOR, SHELL SIZE 24
BAYONET COUPLING, MOD -072
HD30 SERIES
DRAWING NO
A
RESTRICTED TO
-
HD36-24-XXP/SX-072
SCALE
1:1
SHEET
1
OF
1
REV
-
A2
