DWDCA-1046100-5/5

Description
Wide Band Low Power Amplifier, 0MHz Min, 100MHz Max,
CategoryWireless rf/communication    Radio frequency and microwave
File Size29KB,1 Pages
ManufacturerMITEQ Inc
Download Datasheet Parametric View All

DWDCA-1046100-5/5 Overview

Wide Band Low Power Amplifier, 0MHz Min, 100MHz Max,

DWDCA-1046100-5/5 Parametric

Parameter NameAttribute value
MakerMITEQ Inc
Reach Compliance Codeunknown
Other featuresBNC-F/SMA-F
Characteristic impedance50 Ω
structureCOAXIAL
Gain46 dB
Maximum operating frequency100 MHz
Minimum operating frequency
RF/Microwave Device TypesWIDE BAND LOW POWER
Base Number Matches1

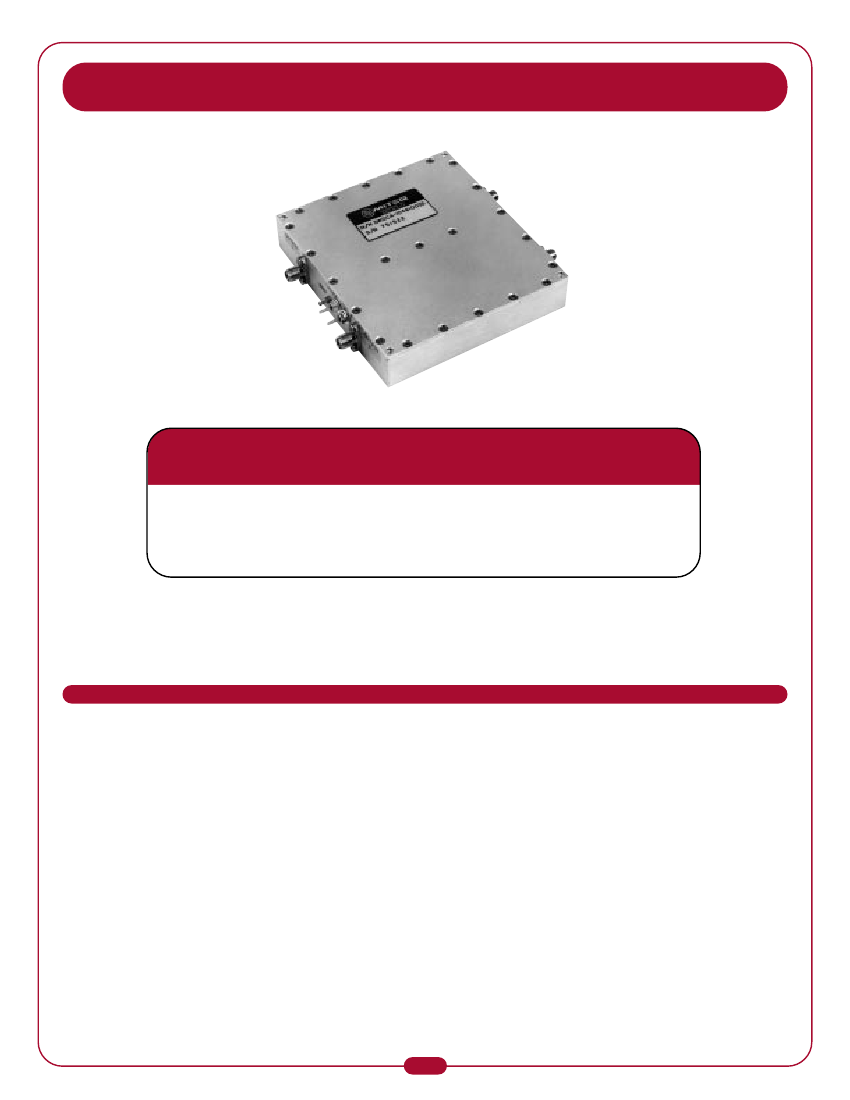

DUAL-CHANNEL GAIN/DELAY-MATCHED WIDEBAND
DC-COUPLED AMPLIFIER
DWDCA SERIES
MODEL
NUMBER *
DWDCA-1046100-I/O
DWDCA-1040200-I/O
DWDCA-1020500-I/O
BANDWIDTH
(MHz)
0 – 100
0 – 200
0 – 500
GAIN
(dB)
46
40
20
OUTPUT
POWER
(dBm)
10
10
10
INPUT
OFFSET
(mV)
<1
<1
< 2.5
GAIN
DELAY
FLATNESS VARIATION
(dB)
(ps)
< 0.75
<1
<1
< 400
< 300
< 200
IN/OUT
IMPEDANCE
(ohms)
50 or 75
50 or 75
50 or 75
* I = Input impedance; O = Output impedance.
For impedance of 75 ohms, I or O = 7; for impedance of 50 ohms, I or O = 5.
PRIMARY POWER REQUIREMENTS
Current/voltage .................................................... < ±300 mA @ ±15 volts
MECHANICAL SPECIFICATIONS
PHYSICAL
Dimensions .......................................................... 4.13” x 3.73” x .79”
CONNECTORS
Input/output.......................................................... SMA or BNC female available
DC power............................................................. Feedthru terminal
Housing ground ................................................... 2-56 terminal
19
