Semiconductor
DN200F
NPN Silicon Transistor
Features
•
Extremely low collector-to-emitter saturation voltage
( V
CE(SAT)
= 0.2V Typ. @I
C
/I
B
=1A/50
㎃)
•
Suitable for low voltage large current drivers
•
Complementary pair with DP200F
•
Switching Application
Ordering Information
Type NO.
DN200F
Marking
N04
Package Code
SOT-89
Outline Dimensions
unit :
mm
PIN Connections
1. Base
2. Collector
3. Emitter
KST-2125-002
1
DN200F
Absolute maximum ratings
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-Base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature
* : When mounted on 40×40×0.8mm ceramic substate
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
P
C
*
T
J
T
stg
Ratings
15
12
5
2
0.5
2
150
-55~150
Unit
V
V
V
A
W
°C
°C
Electrical Characteristics
Characteristic
Collector-Base breakdown voltage
Collector-Emitter breakdown voltage
Emitter-Base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-Emitter saturation voltage
Base-Emitter saturation voltage
Transition frequency
Collector output capacitance
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE1
h
FE2
V
CE(sat)
V
BE(sat)
f
T
C
ob
Test Condition
I
C
=50
㎂
, I
E
=0
I
C
=1
㎃
, I
B
=0
I
E
=50
㎂
, I
C
=0
V
CB
=12V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=1V, I
C
=100
㎃
V
CE
=1V, I
C
=2A
I
C
=1A, I
B
=50
㎃
I
C
=1A, I
B
=50
㎃
V
CE
=5V, I
C
=50
㎃
V
CB
=10V, I
E
=0, f=1
㎒
Min. Typ. Max.
15
12
5
-
-
200
40
-
-
-
-
-
-
-
-
-
-
-
-
-
260
5
-
-
-
0.1
0.1
450
-
0.3
1.2
-
-
Unit
V
V
V
㎂
㎂
-
-
V
V
㎒
㎊
KST-2125-002
2
DN200F

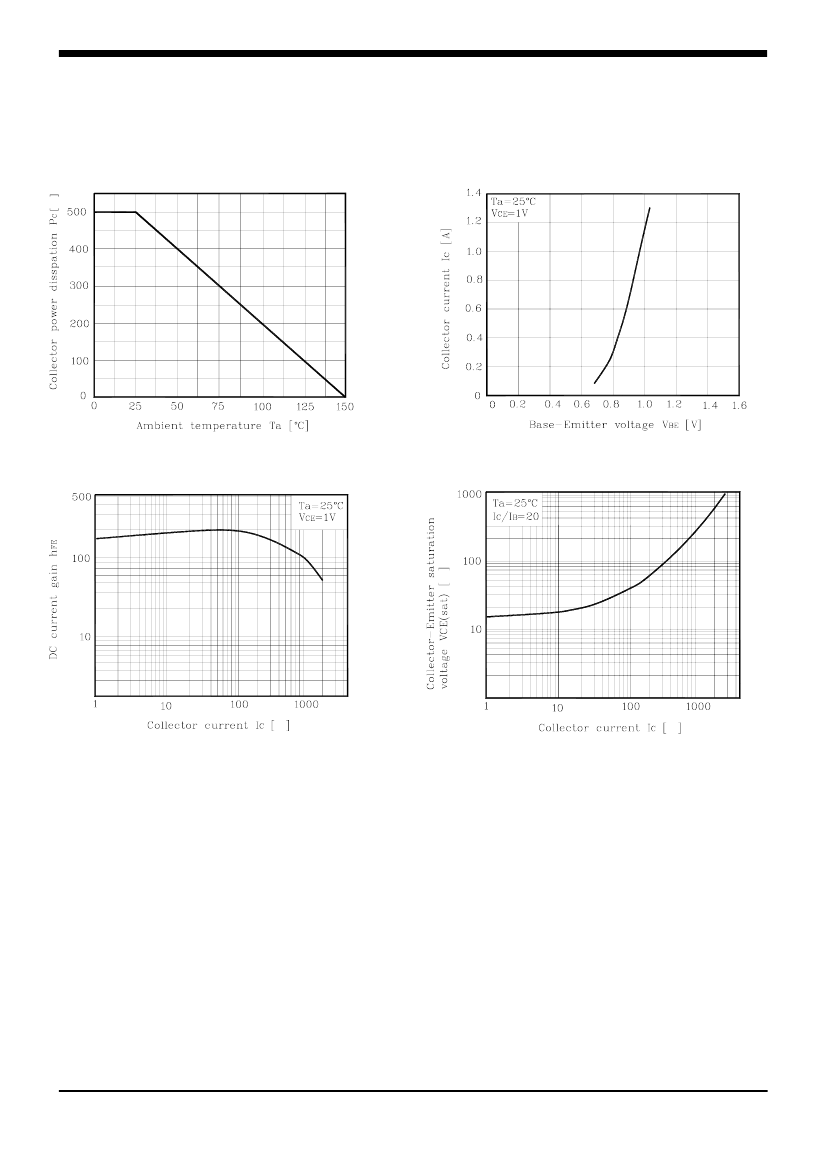

Electrical Characteristic Curves
Fig. 1 P
C
- T
a
½
Fig. 2 I
C
- V
BE
Fig. 3 h
FE-
I
C
Fig. 4 V
CE(sat)-
I
C
㎃
㎷
㎃
KST-2125-002
3
DN200F
These AUK products are intended for usage in general electronic equipments(Office and
communication equipment, measuring equipment, domestic electrification, etc.).
Please make sure that you consult with us before you use these AUK products in equipm-
ents which require high quality and/or reliability, and in equipments which could have
major impact to the welfare of human life(atomic energy control, airplane, spaceship, traffic
signal, combustion central, all types of safety device, etc.).
AUK cannot accept liability to any damage which may occur in case these AUK products
were used in the mentioned equipments without prior consultation with AUK.
KST-2125-002
4
