R125512000W datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> R125512000W

Preview

R125512000W: DescriptionRF Connectors / Coaxial Connectors SMA SQ FLNG JACK REC W/ SHOULDER CONTACT; CategoryThe connector; File Size24KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R125512000W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	R125512000W	-	-	View	Buy Now

R125512000W Overview

RF Connectors / Coaxial Connectors SMA SQ FLNG JACK REC W/ SHOULDER CONTACT

R125512000W Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Radiall
Product Category	RF Connectors / Coaxial Connectors
Product	Connectors
RF Series	SMA
Gender	Receptacle
Impedance	50 Ohms
Maximum Frequency	18 GHz
Orientation	Straight
Mounting Type	Flange Mount, 4-Hole
Body Material	Stainless Steel
Body Style	Straight
Contact Plating	Gold
Contact Type	Pin (Male)
Voltage Rating	350 V
Contact Material	Beryllium Copper
Body Finish	Gold
Insulation Resistance	5000 MOhms
Mating Cycles	500 Cycles
Maximum Operating Temperature	+ 165 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

TECHNICAL DATA SHEET – COAXIAL RECEPTACLES & IN SERIES ADAPTORS

1/2

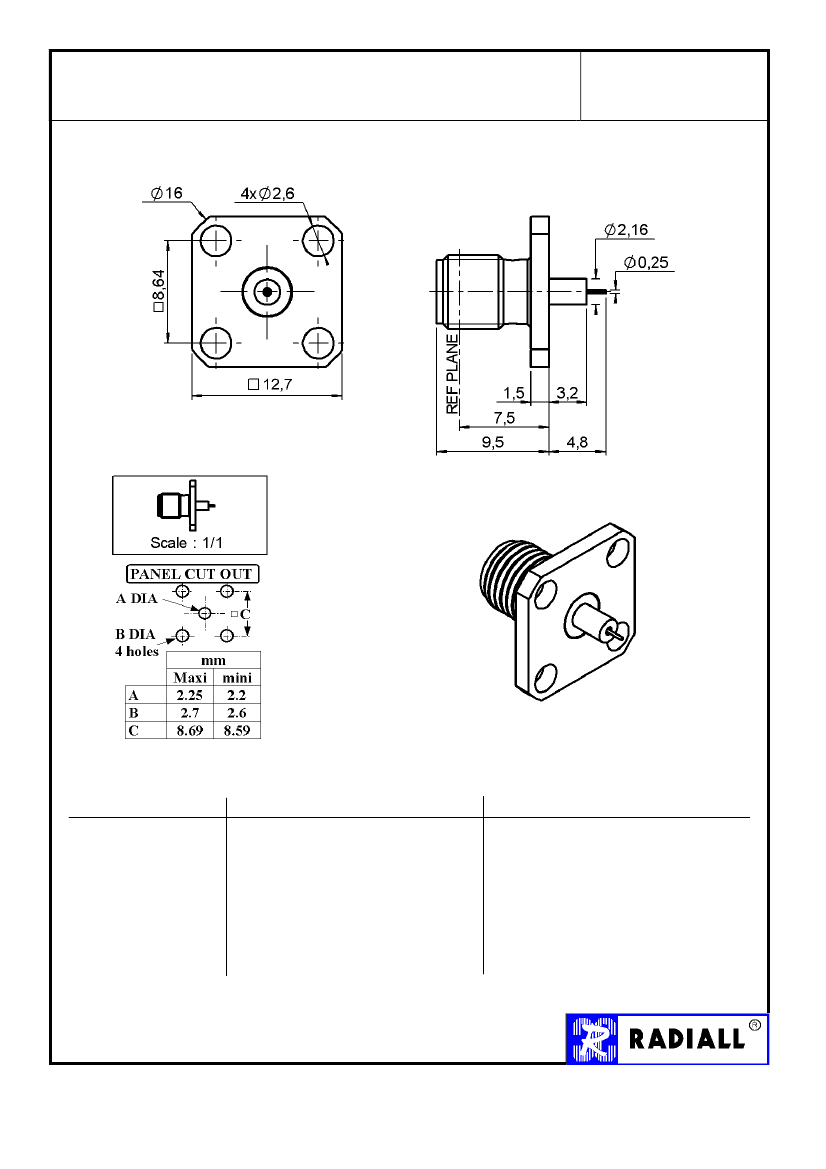

SQUARE FLANGE JACK RECEPTACLE

WITH SHOULDER CONTACT

R125.512.000

Series :

SMA

All dimensions are in mm.

COMPONENTS

BODY

CENTRE CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

-

MATERIALS

STAINLESS STEEL

BERYLLIUM COPPER

-

PTFE

-

PLATING

GOLD 0.5 OVER NICKEL 2

µ

m

GOLD 1.3 OVER NICKEL 2

µ

m

-

µ

m

-

µ

m

-

Edition : 9840 U

Design changes may be in order to improve the product.
