DESCRIPTION:
MODEL NUMBER:

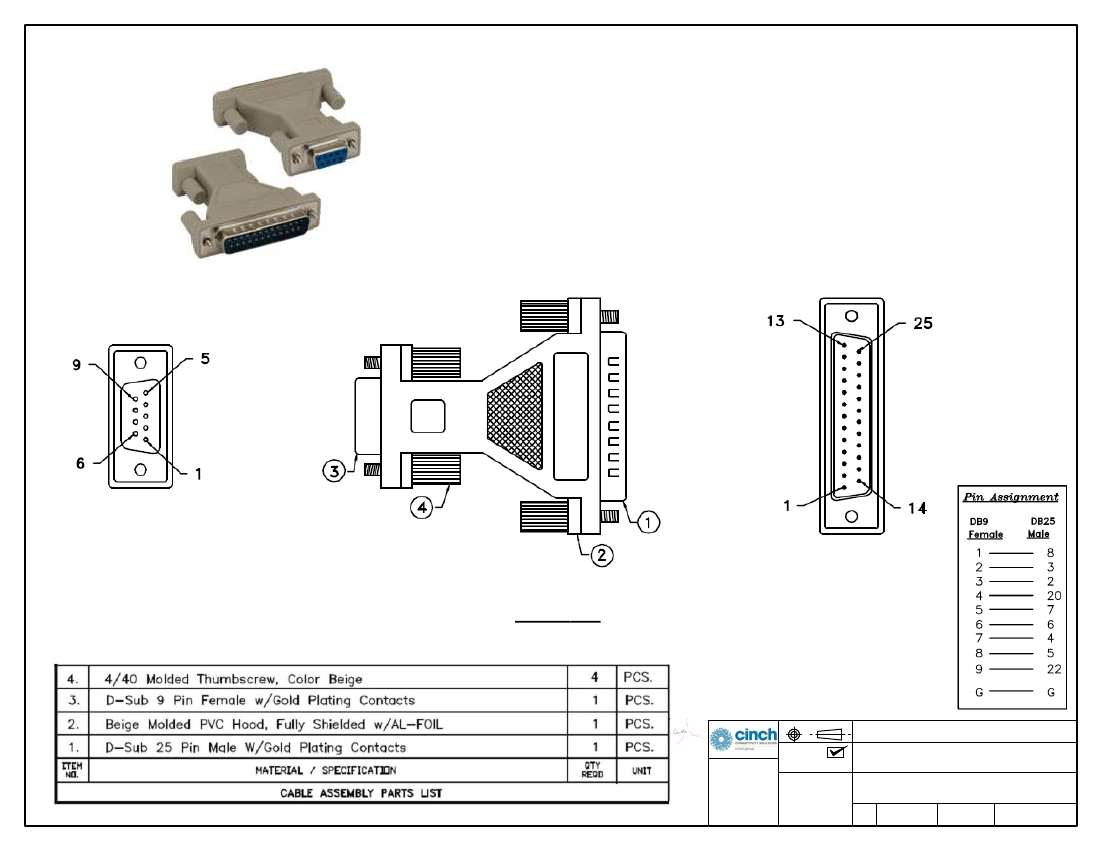

GENDER ADAPTER DB9 (F) to DB25 (M)
30-9516
DIM OUTLINE
数字签名人
Lin Ma
DN：cn=Lin Ma，
c=CN，o=Cinch
Connectivity Solutions
(Shanghai) Co. Ltd，
email=lin.ma@cn.
cinch.com
日期：2015.11.12
09:40:47 +08'00'
3RD ANGLE PROJECTION
AIM-Cambridge
Title:
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: METRIC
GENDER ADAPTER DB9 (F) to DB25 (M)
Model No.
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
.X
u
.2
.XX
u
.07
ANGLES
u
2
v
30-9516
Size
A
DO NOT SCALE
Date:
11/10/2015
DRAWING
Sheet 1 of 1
