Semiconductor
STA124N
PNP Silicon Transistor
Features
•
Suitable for low voltage large current drivers
•
High DC current gain and large current capability
•
Complementary pair with STC128N
Ordering Information
Type NO.
STA124N
Marking
STA124
Package Code
TO-92N
Outline Dimensions
unit :
mm
4.20~4.40
4.20~4.40
2.25 Max.
0.52 Max.
13.50~14.50
0.90 Max.
1.27 Typ.
2.14 Typ.
1 2 3
3.55 Typ
3.09~3.29
0.40 Max.
PIN Connections
1. Emitter
2. Collector
3. Base
KSD-T0C018-001
1
STA124N
Absolute Maximum Ratings
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
J
T
stg
Rating
-15
-12
-6.5
-1
400
150
-55~150
Unit
V
V
V
A
mW
°C
°C
Electrical Characteristics
Characteristic
Collector-emitter breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter voltage
Transition frequency
Collector output capacitance
(Ta=25°C)
Symbol
BV
CEO
I
CBO
I
EBO
h
FE
V
CE(sat)
V
BE
f
T
C
ob
Test Condition
I
C
=-1mA, I
B
=0
V
CB
=-15V, I
E
=0
V
EB
=-6.5V, I
C
=0
V
CE
=-1V, I
C
=-100mA
I
C
=-500mA, I
B
=-50mA
V
CE
=-1V, I
C
=-100mA
V
CE
=-5V, I
C
=-50mA
V
CB
=-10V, I
E
=0, f=1MHz
Min. Typ. Max.
-12
-
-
200
-
-
-
-
-
-
-
-
-0.2
-0.7
260
5
-
-0.1
-0.1
450
-0.4
-0.9
-
-
Unit
V
µA
µA
-
V
V
MHz
pF
KSD-T0C018-001
2
STA124N

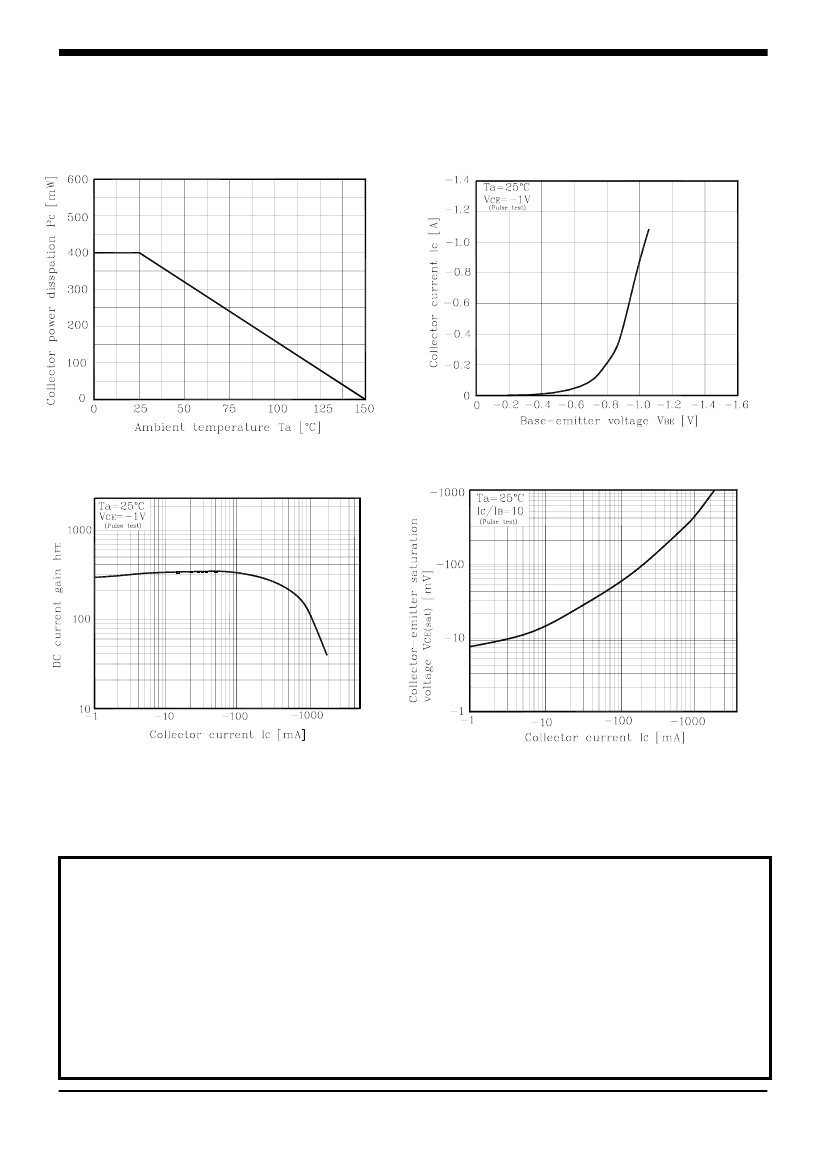

Fig. 1 P
C
- T
a
Fig. 2 I
C
- V
BE
Fig. 3 h
FE-
I
C
Fig. 4 V
CE(sat)-
I
C
The AUK Corp. products are intended for the use as components in general electronic equipment
(Office and communication equipment, measuring equipment, home appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products in equipments
which require high quality and / or reliability, and in equipments which could have major impact to the
welfare of human life(atomic energy control, airplane, spaceship, transportation, combustion control, all
types of safety device, etc.). AUK Corp. cannot accept liability to any damage which may occur in case
these AUK Corp. products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T0C018-001
3
