ROHS COMPLIANT
PRODUCT DATA DRAWING
.125 3.18
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
A
B
DCN 39189
DCN 39367
DCN 40225
07/12
09/12
12/13
FSG
STW
FSG
2X .083 2.11
.131 3.33
4X .206 5.23
RP
4X .075 1.91
2X
.012 0.29
A
CONTACT FLUSH TO
.005 BELOW -A-
2X .113 2.87
2X .048±.001 1.22±0.03
4° B
2X .028 0.71
.020 0.51
B
2X
.057 1.45
.085 2.16
.125 3.18
MATERIAL:
BODY:
CONTACT:
INSULATOR:
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
BRASS PER ASTM B16, ALLOY UNS No. C36000
TORLON 4203
4X
.020 0.51
.130 3.30
.215 5.46
.255 6.48
FINISH:
BODY &
CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
PERFORMANCE:
IMPEDANCE:
50 OHMS
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994

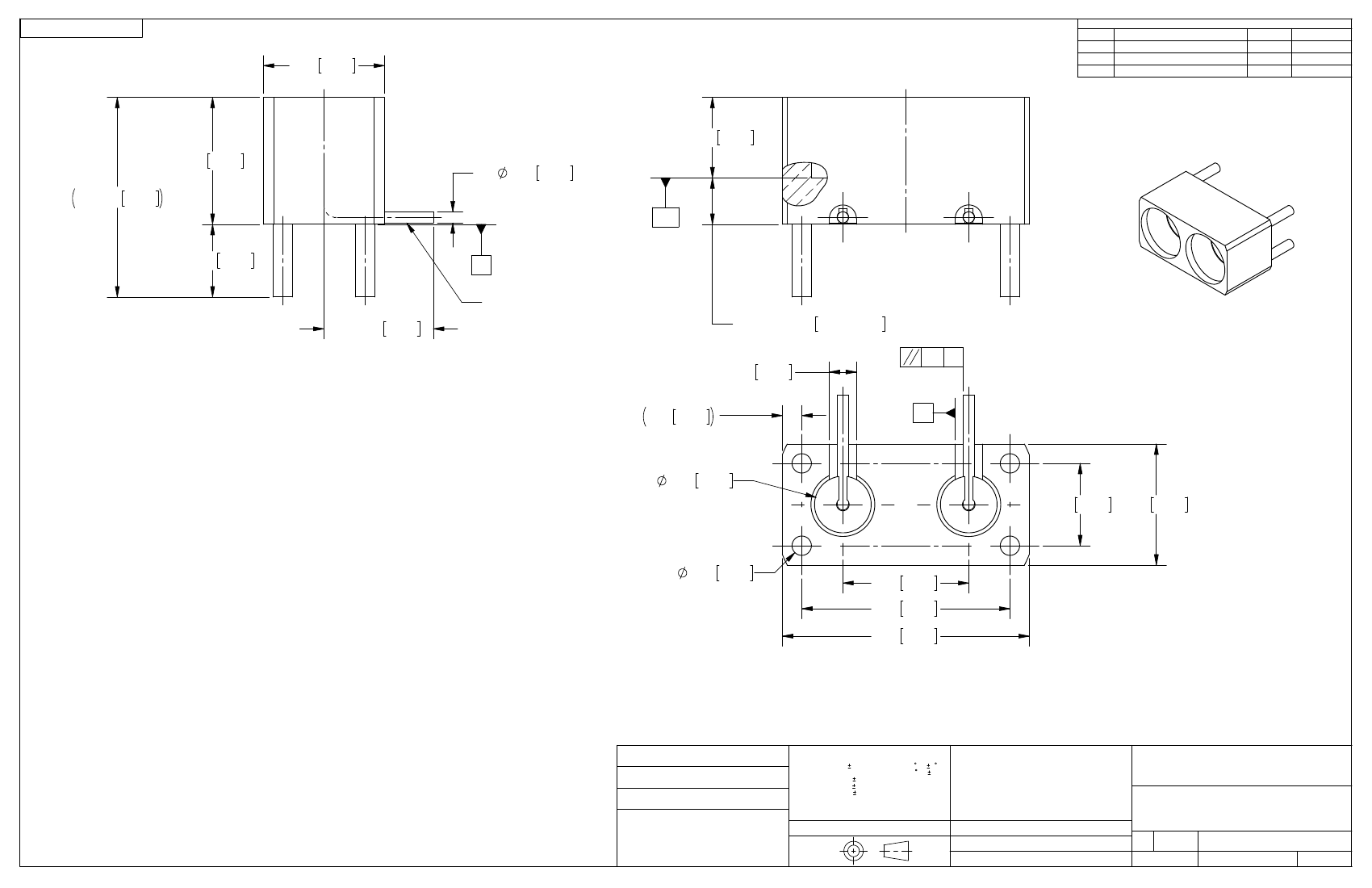

2-PORT SMPM MALE FD
R/A CONTACT PCB MOUNT
95077
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FSG 07/05/12
FSG 07/05/12
FSG 07/05/12
SIZE CAGE CODE DWG. NO.
B
3211-40024
SHEET 1 OF 1
SCALE: 12:1
