TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT PIN: BRASS (CuZn)
SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
MECHANICAL
PITCH: 5.08MM
SOLDERING: WAVE PROCESS ONLY
PACKAGING: BOX
SERIE 312
CERTIFICATION
cULus
VDE
20A
20A
300VAC
300VAC
1.6KV
2.5KV
20 mOhm MAX
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
23-OCT-14
29-OCT-08
31-OCT-07
DATE
MATERIAL
CHARACTERISTICS
PDF
FILE
AS
JP
EC
BY
APPROVAL: FBr
SCALE:
SHEET: 1/2
DRAW: AS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

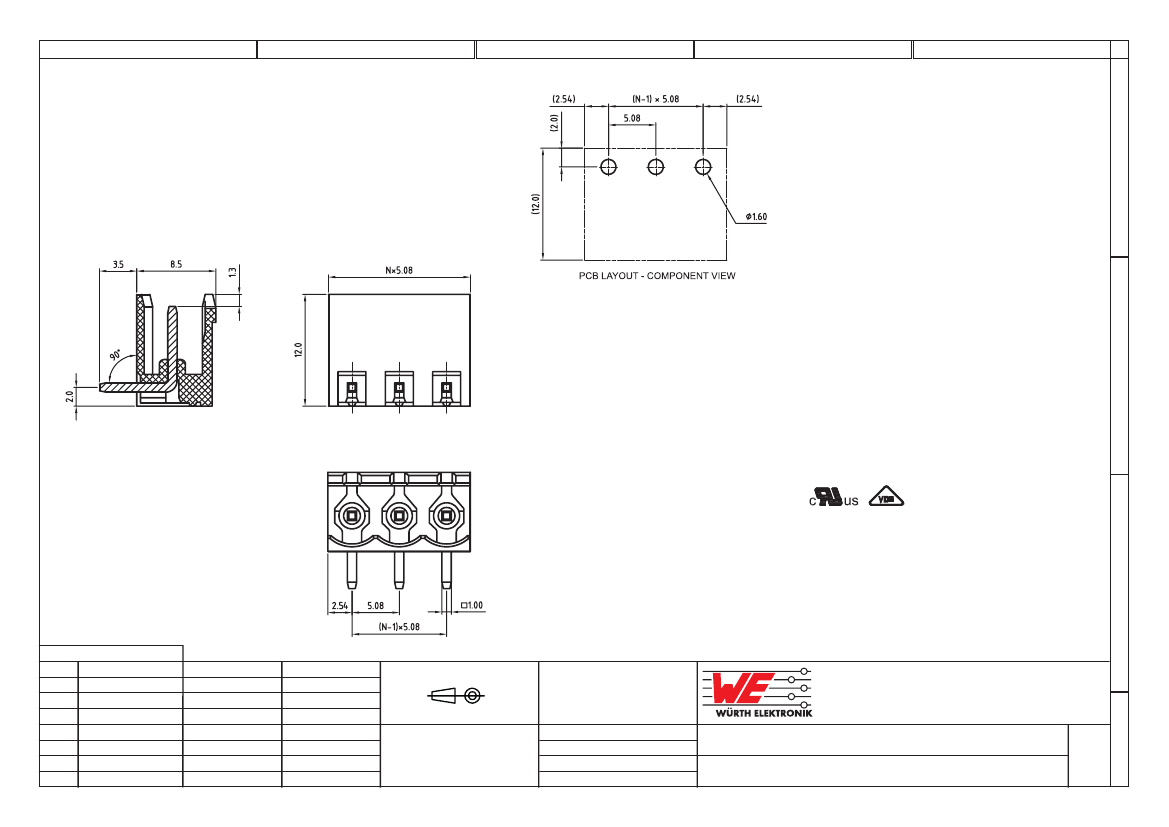

DESCRIPTION: SERIE 312 - 5.08MM OPEN HORIZONTAL PCB HEADER
WR-TBL
WERI PART NO: 691 312 510 0xx
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET:
2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
