5-794677-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5-794677-2

Preview

5-794677-2: Description22POS MICRO MNL ASSY,R/A,THRU; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-794677-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-794677-2	-	-	View	Buy Now

5-794677-2 Overview

22POS MICRO MNL ASSY,R/A,THRU

5-794677-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	MATE-N-LOK
Board mount options	SPLIT BOARD LOCK
body width	0.341 inch
subject depth	0.469 inch
body length	1.457 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Plug information	2-794617-2
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.118 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0
Evacuation force-minimum value	.695 N
Base Number Matches	1

Preview

Download Datasheet

View All

4

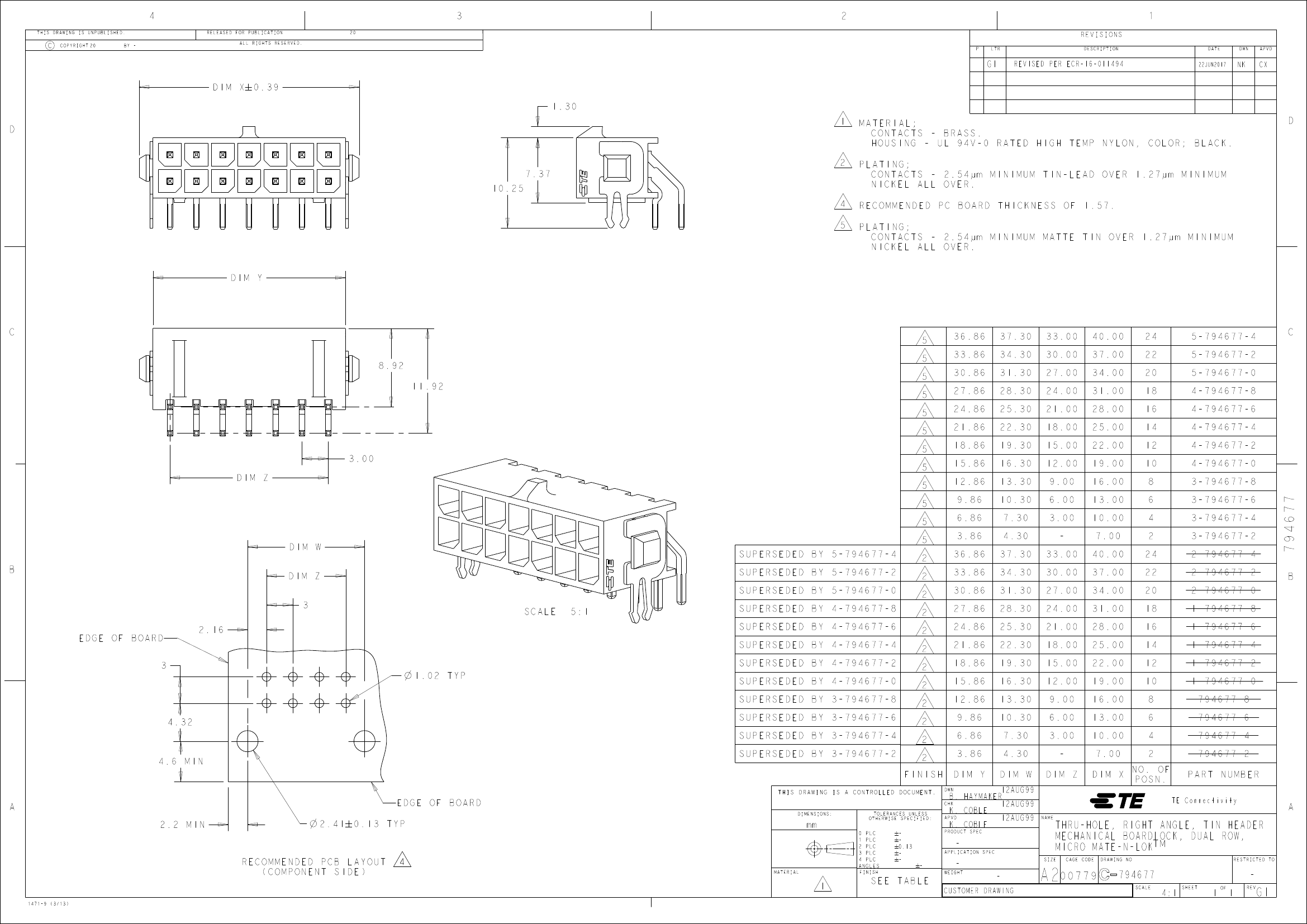

THIS DRAWING IS UNPUBLISHED.
