929975-01-25-RK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 929975-01-25-RK

Preview

929975-01-25-RK: DescriptionHeaders & Wire Housings 25 CON STR BRDMNT SKT; CategoryThe connector The connector; File Size882KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric View All

929975-01-25-RK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	929975-01-25-RK	-	-	View	Buy Now

929975-01-25-RK Overview

Headers & Wire Housings 25 CON STR BRDMNT SKT

929975-01-25-RK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	3M
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (100)
Contact completed and terminated	MATTE TIN OVER NICKEL (100)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	929
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

3M

™

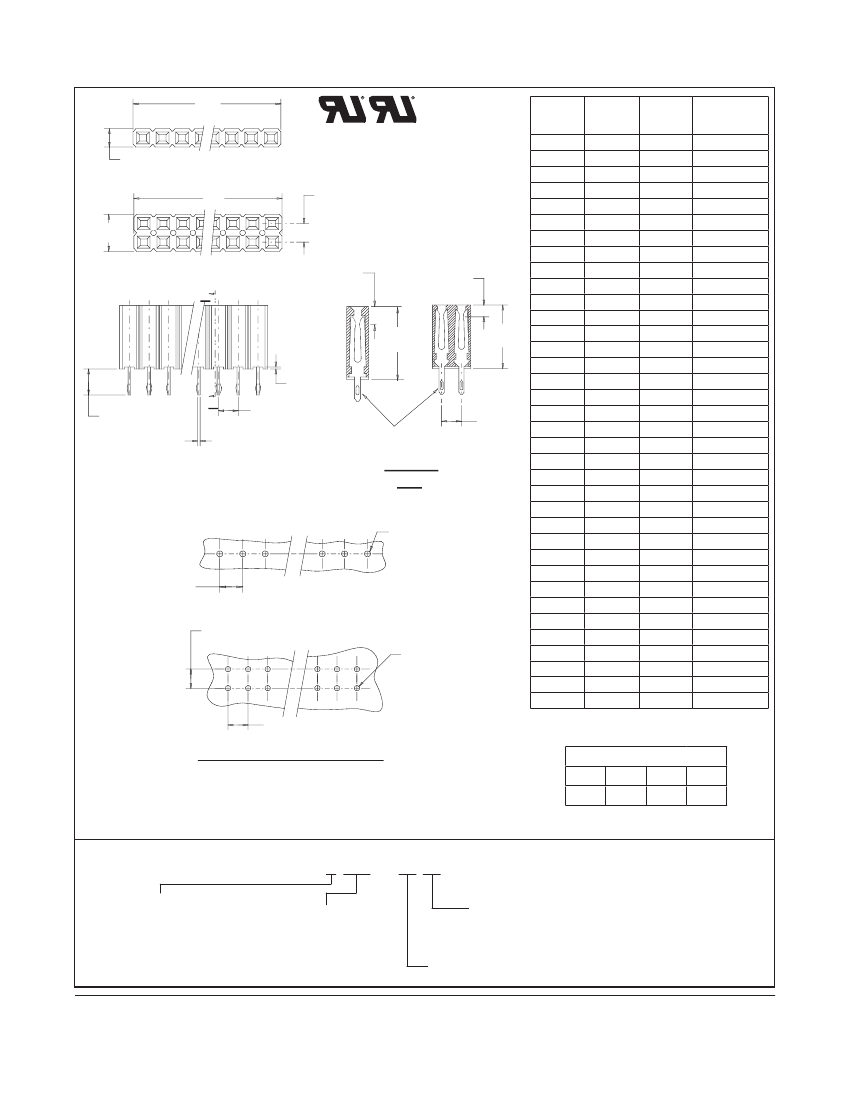

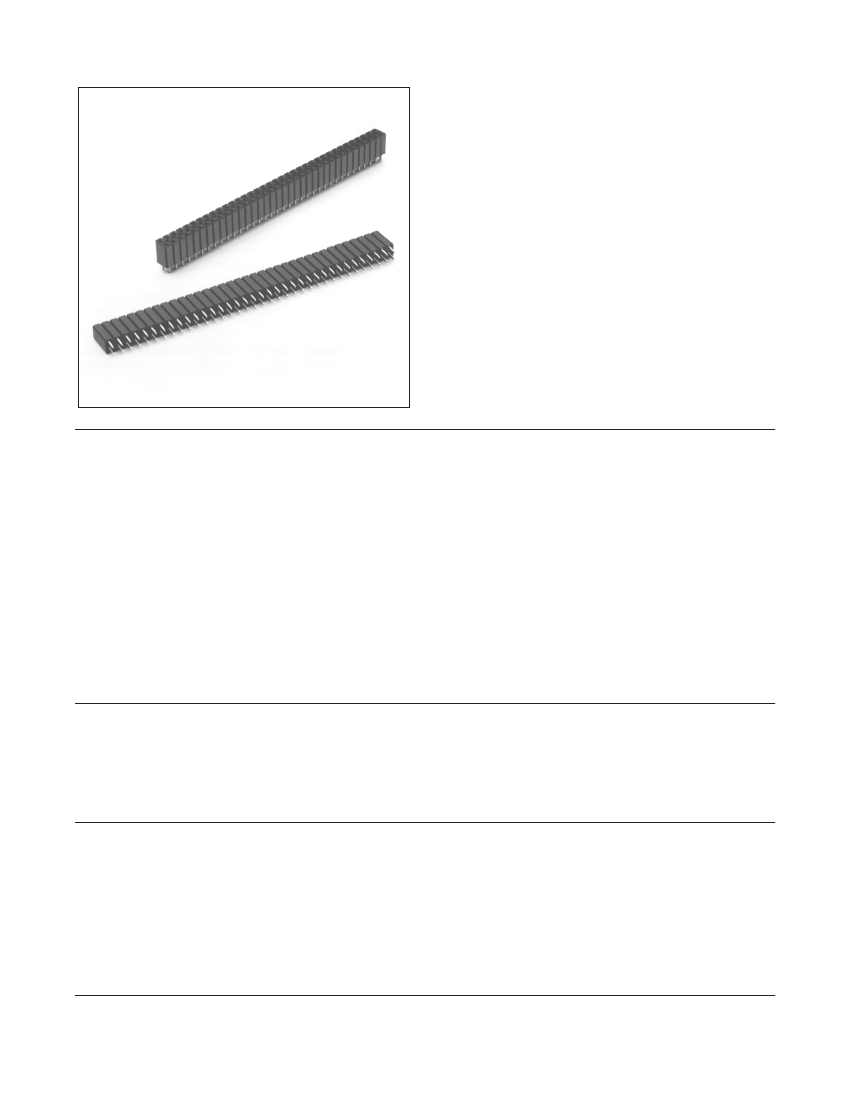

Boardmount Socket

.100" and .100"

×

.100" Straight, Solder Tails

•

1-40 contacts on single row, 2-80 contacts on two row

Tuning fork contact design

Solder standoffs facilitate production wave soldering

Optional board retention feature

See the Regulatory Information Appendix (RIA) in

the RoHS compliance section of www.3mconnectors.

com for compliance information

(RIA E1 & C1 apply)

929 Series

Date Modified: June 27, 2013

TS-0815-E

Sheet 1 of 2

Physical

Insulator:

Flammability: UL 94V-0

Color: Black

Material: Glass Filled Polyester (PCT)

Contact Material: Copper Alloy

Underplating: 100 μ" [ 2.54 μm ] Nickel

Plating:

Wiping Area: See ordering information options for thickness

Solder Tails: Tin Lead or Matte Tin (See ordering information)

Marking:

None

Electrical

Current Rating:

2 amps maximum all lines energized at 65ºC maximum ambient

Insulation Resistance:

> 5

×

10

9

Ω

at 500 V

DC

Withstanding Voltage:

1,500 V

RMS

at Sea Level

Environmental

Temperature Rating:

-40ºC to +105ºC

Process Rating:

260ºC (per J-STD-020C)

(PBT Insulator version), Maximum molded insulator temperature 191ºC

(Solder Wave Process Only)

UL File No.: E68080

3

Electronic Solutions Division

Interconnect Solutions

http://www.3Mconnectors.com

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
