C-13-F04M-PD-SLCM/APC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> C-13-F04M-PD-SLCM/APC

C-13-F04M-PD-SLCM/APC: DescriptionReceiver, 1100nm Min, 1360nm Max, 622Mbps, LC/APC Connector, Through Hole Mount-right Angle; CategoryWireless rf/communication Optical fiber; File Size597KB，5 Pages; ManufacturerSource Photonics

Download Datasheet Parametric View All

C-13-F04M-PD-SLCM/APC Overview

Receiver, 1100nm Min, 1360nm Max, 622Mbps, LC/APC Connector, Through Hole Mount-right Angle

C-13-F04M-PD-SLCM/APC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Source Photonics
Reach Compliance Code	unknown
body height	25.5 mm
Body length or diameter	6.35 mm
Built-in features	AMPLIFIER
Connection Type	LC/APC CONNECTOR
data rate	622 Mbps
Emitter/Detector Type	LASER DIODE, PIN PHOTODIODE
Fiber optic equipment types	RECEIVER
Fiber type	9/125, SMF
Installation features	THROUGH HOLE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1360 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1310 nm
Receive type	DIGITAL
Sensitivity	-33 dBm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

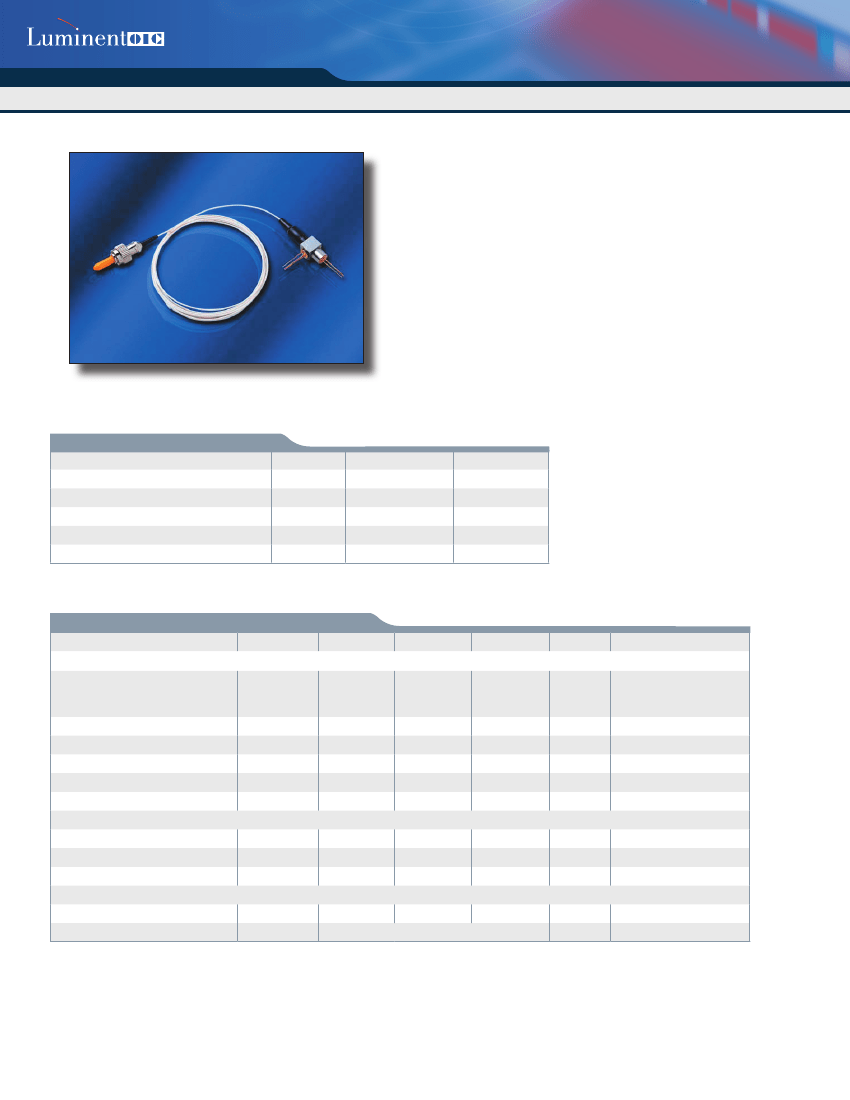

1550nm Emitting,1310nm Receiving(PIN-TIA,5pin-out,3.3V)

Bi-directional Diplexer Optical Module

C-15/13-FXXM-PX-XXXX/XXX-XX

Features

• Single ﬁber bi-directional operation

• Laser diode with multi-quantum- well structure

• Low threshold current

• InGaAs/InP PIN Photodiode with trans-impedance ampliﬁer

• High sensitivity with AGC*

• Differential ended output

• Single +3.3V Power Supply

• Integrated WDM coupler

• Un-cooled operation from -40ºC to +85ºC

• Hermetically sealed active component

• SM/MM ﬁber pigtailed with optional

FC/ST/SC/MU/LC/- connector

• Design for ﬁber optic networks

• RoHS Compliant available

Absolute Maximum Rating (Tc=25ºC)

Parameter

Fiber Output Power

LD Reverse Voltage

PIN-TIA Voltage

Operating Temperature

Storage Temperature

L/M/H

Symbol

RLD

opr

stg

Value

0.6(L)/1(M)/2(H)

4.5

-40 to +85

Unit

ºC

(All optical data refer to a coupled 9/125µm SM ﬁber & 50/125µm SM ﬁber)

Optical and Electrical Characteristics( Tc=25ºC)

Parameter

Laser Diode

Optical Output Power

Peak Wavelength

Spectrum Width (RMS)

Threshold Current

Forward Voltage

Rise/Fall Time

Symbol

∆λ

DARK

∆P

CRT

Min

0.2

0.5

1530

100

-1.5

Typical

1.6

1550

1.2

< -45

Max

0.5

1570

1.5

0.5

0.1

1.5

Unit

Test Condition

µA

CW, I

+ 25mA , kink free

CW, P

(Min)

CW, P

(Min)

CW, P

(Min)

bias=

,10% ~ 90%

CW, Pf=Pf(Min),VRPD=2V

RPD

=5V

RPD

=5V, f=1MHz

APC, -40 to +85ºC

Monitor Diode

Monitor Current

Dark Current

Capacitance

Module

Tracking Error

Optical Crosstalk

Note:

1.Pin assignment can be customized.

2.Speciﬁcations subject to change without notice.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS1557-APR1106

rev. A.0

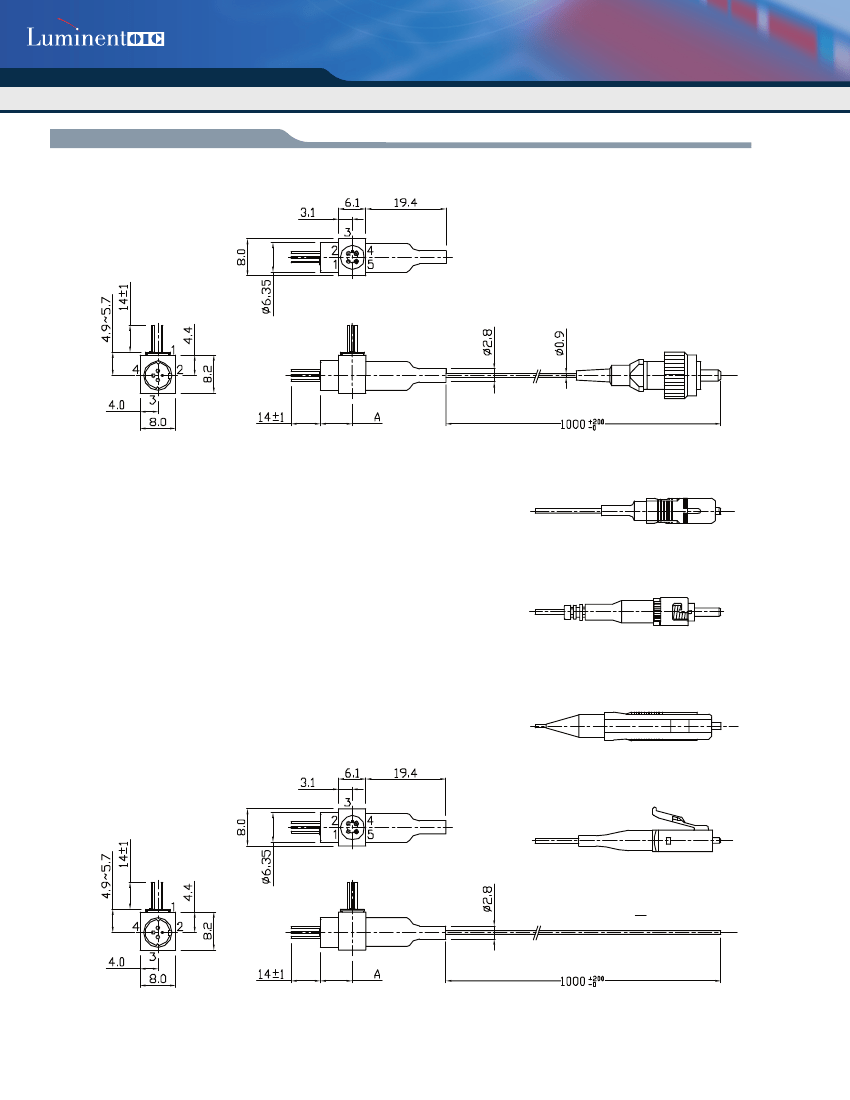

1550nm Emitting,1310nm Receiving(PIN-TIA,5pin-out,3.3V)

Bi-directional Diplexer Optical Module

C-15/13-FXXM-PX-XXXX/XXX-XX

Ordering Information

C-15/13-FXXM-PX-XXXX/XXX-XX

1550nm Transmitter

1310nm Receiver

M = with 5 pinout

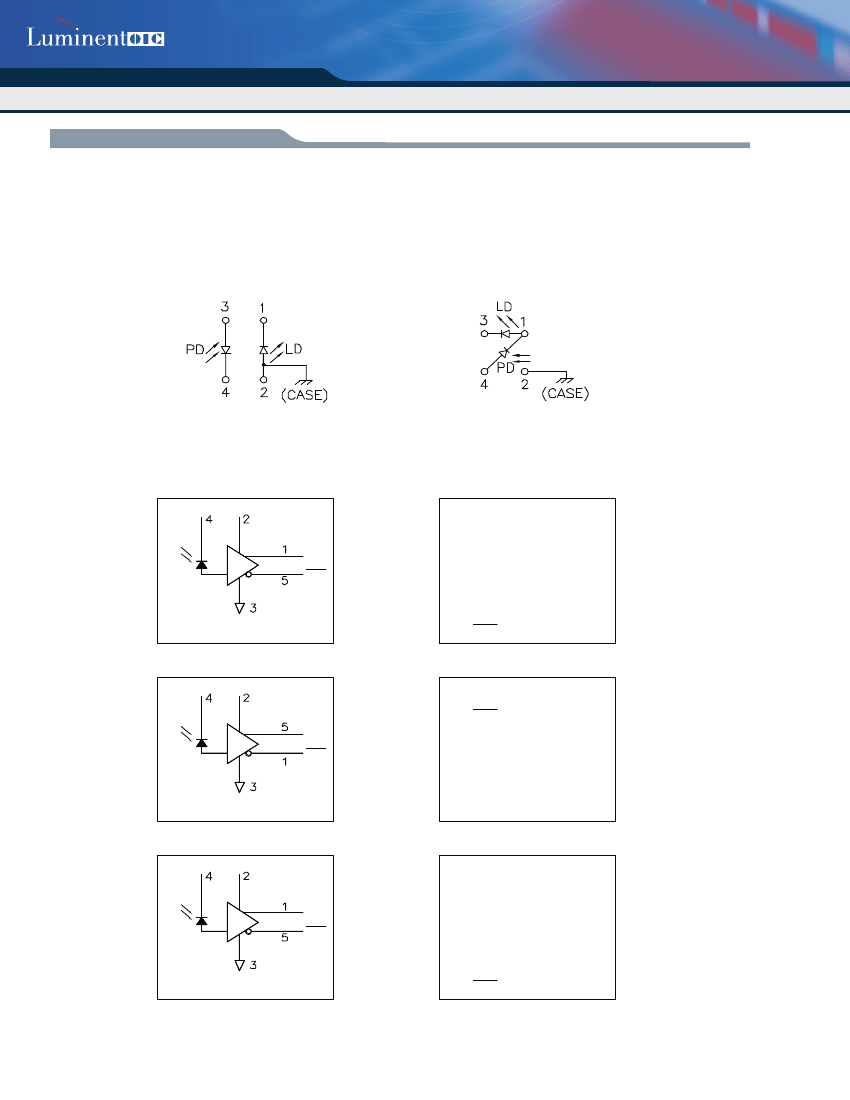

Pin Assignment

"-"=A Type

D =D Type

Fiber Output Power

L/M/H

Connector

FC/ST/SC/MU/LC/-

" - " = PC Fiber

APC = APC Fiber

(for single mode)

-/G5/GR

02: 155 Mb/s PIN-TIA+3.3V

04: 622 Mb/s PIN-TIA+3.3V

06:1250 Mb/s PIN-TIA+3.3V

S=SM 9/125µm

M=MM 50/125µm

Fiber Application

RoHS Compliant

Blank = RoHS non-compliant product

G5 = RoHS 5/6-compliant product (lead exemption)

GR = Full RoHS compliant product (no exemption)

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow

guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at LuminentOIC＇s sole and absolute discretion.

LuminentOIC warrants performance of its products to current specifications only in accordance with the company＇s standard one-year

warranty; however, specifications designated as “preliminary＂ are given to describe components only, and LuminentOIC expressly dis-

claims any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability,

fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company＇s Terms and Conditions of

Sale for further warranty information.

LuminentOIC assumes no liability for applications assistance, customer product design, software performance, or infringement of pat-

ents, services, or intellectual property described herein. No license, either express or implied, is granted under any patent right,

copyright, or intellectual property right, and LuminentOIC makes no representations or warranties that the product(s) described here-

in are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in

implantation or other life support applications where malfunction may result in injury or death to persons. LuminentOIC customers

using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify LuminentOIC

for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that LuminentOIC is not liable for any

actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this

document. Customer must contact LuminentOIC to obtain the latest version of this publication to verify, before placing any order,

that the information contained herein is current.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS1557-APR1106

rev. A.0
