Worldwide Performan
The Company
Amphenol-Tuchel Electronics GmbH is a global
company and a leading manufacturer of electri-
cal connector solutions.
The superior quality of our product line is a
result of state of the art engineering and tech-
nology in conjunction with leading edge pro-
duction methods.
Our worldwide production and sales channels
provide local competence in a global market-
place.
Amphenol has set standards in electrical
connector technology with many inventions
and patents. These solutions are appreciated
features in product applications such as
industrial machine tool, automotive, telecom as
well as datacom markets.
System
description
2
The connectors of the Amphenol product series
C 148 U are characterised by a robust and
compact design, simple handling, and high
mechanical and electrical strength. These con-
nectors, designed for use in control systems
and servo-drives, thus meet all requirements
demanded of a decentralised plug-connector
system for use under rough operating condi-
tions. They are suitable for wire sizes of
0.5 mm
2
to 10 mm
2
and cover about 95% of
all possible applications.
The modular usability of the individual compo-
nents reduces the amount of stock which has
to be kept. A further advantage is the simple,
quick and reliable assembly of connectors for
equipment and cables. No special tools are
needed for inserting the contacts into the insu-
lated body.
The proven crimp technology is very suitable for
connecting wires to contacts for systems sub-
ject to vibration stresses. All of the connectors
are designed for use in electromagnetic interfer-
ence fields. The EMI protection is ensured by
the metallic construction and the full connection
of the cable shield within the connectors.
The application sector for the C 148 U series
extends from mechanical engineering to drive
solutions and decentralised control systems
with power buses.
nce
Main features
•
•
•
•
•
•
•
•
•
•
•
•
•
•

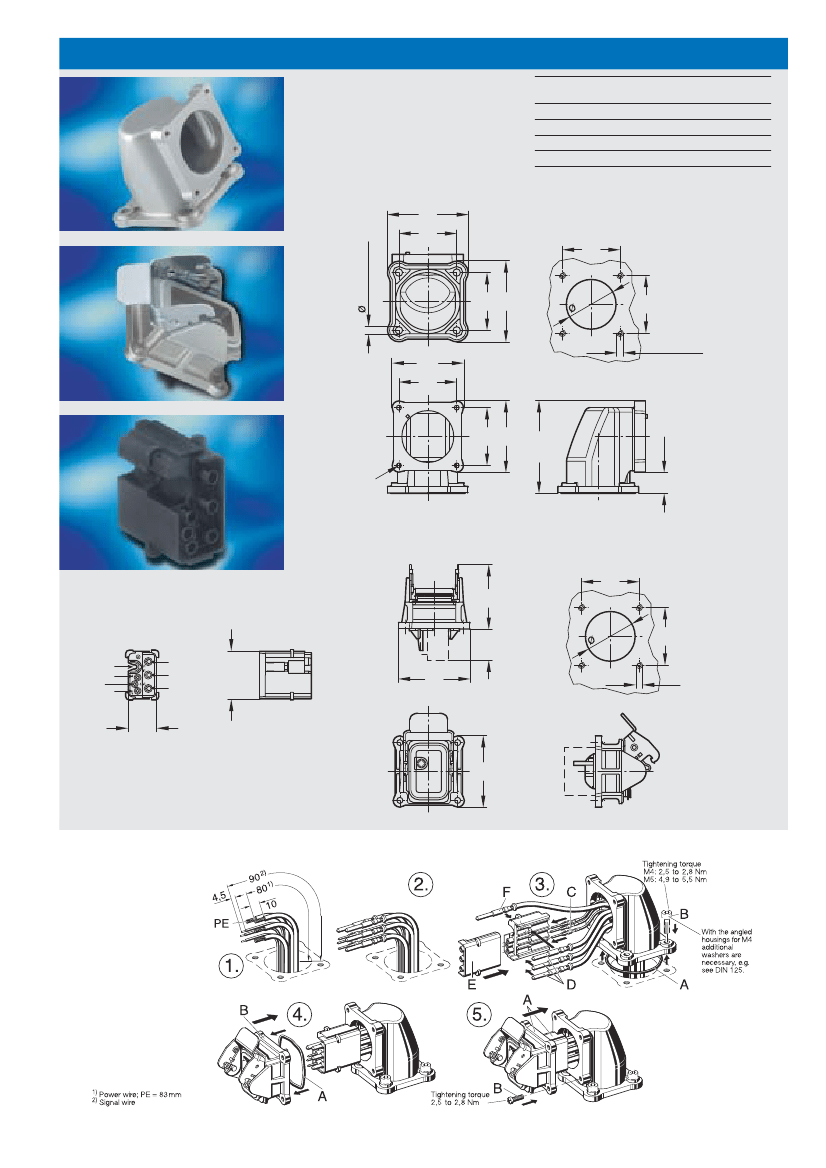

Right angled and straight connectors
Robust metal construction
Meets IP 65 and IP 67 specifications
Locking levers coupling
Number of contacts 3 + PE (power contacts)
+ 3 (signal contacts)
630 V rated voltage
60 A rated current at T
U
40°C
Cable strain relief with cable clamp
Cable dia. 8 - 23 mm
EMI protected in mated and locked condition
Crimp termination
Excellent cost/value ratio
Premating earth contact
Cable and panel connector connected with premating
earth conctact
3
C 148 U Technical Data
General Characteristics
No. of contacts
Termination
Wire size power contacts
Wire size signal contacts
Coupling
Flammability
Electrical Characteristics
Rated voltage
Rated impulse voltage
Material group
Contact resistance
Insulation resistance
Current carrying capacity (power contacts)
Current carrying capacity (signal contacts)
Climatic Conditions
Climatic category
Lower temperature limit
Upper temperature limit
Mechanical Characteristics
Insertion and withdrawed forces
Mechanical life cycle
Locking force
Protection class
Materials
Contact insert
Contacts
Contact plating
Housing
Housing plating
Technical data refer to connectors in mated and locked condition.
PA 6.6
Cu-alloy
Ag
Zn die cast
Ni
IEC 60 512-7, Test 13 b
IEC 60 512-5, Test 9 a
IEC 60 512-7, Test 13 a
IEC 60 529
≤
30 N
≥
100 mating cycles
≤
150 N
IP 65 / IP 67
IEC 60 068-1
IEC 60 512-6, Test 11 j
IEC 60 512-6, Test 11 i
IEC 60 664-1
IEC 60 664-1
IEC 60 664-1
IEC 60 512-2, Test 2 a
IEC 60 512-2, Test 3 a
IEC 60 512-3, Test 5 b
IEC 60 512-3, Test 5 b
630 V AC/DC (500 V AC/DC signal contacts)
6.0 KV
II
≤
3 mΩ (≤ 5 mΩ signal contacts)
≥
10
8
Ω
approx. 60 A (see derating curves)
5A
Contact Inserts
25 / 125 / 21
-25 °C / 16 h
+125 °C / 1000 h
Housing
25 / 100 / 21
-25 °C / 16 h
+100 °C / 1000 h
UL 94
Standard
Value
3 + 3 + PE
crimp
1.5 - 10 mm
2
; 16 - 8 AWG
0.5 - 1.5 mm
2
; 20 -16 AWG
Locking levers
V-0
C 148 U Derating curves power contacts
80
70
60
50
I [A]
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
T
A
contacts [°C]
100
110
120
130
1
2
3
4
5
1
2
3
4
5
10 mm
2
6 mm
2
4 mm
2
2.5 mm
2
1.5 mm
2
Contact carrying capacity at:
- temperature of motor casing approx. 110 °C
- ambient temperature approx. 40 °C
