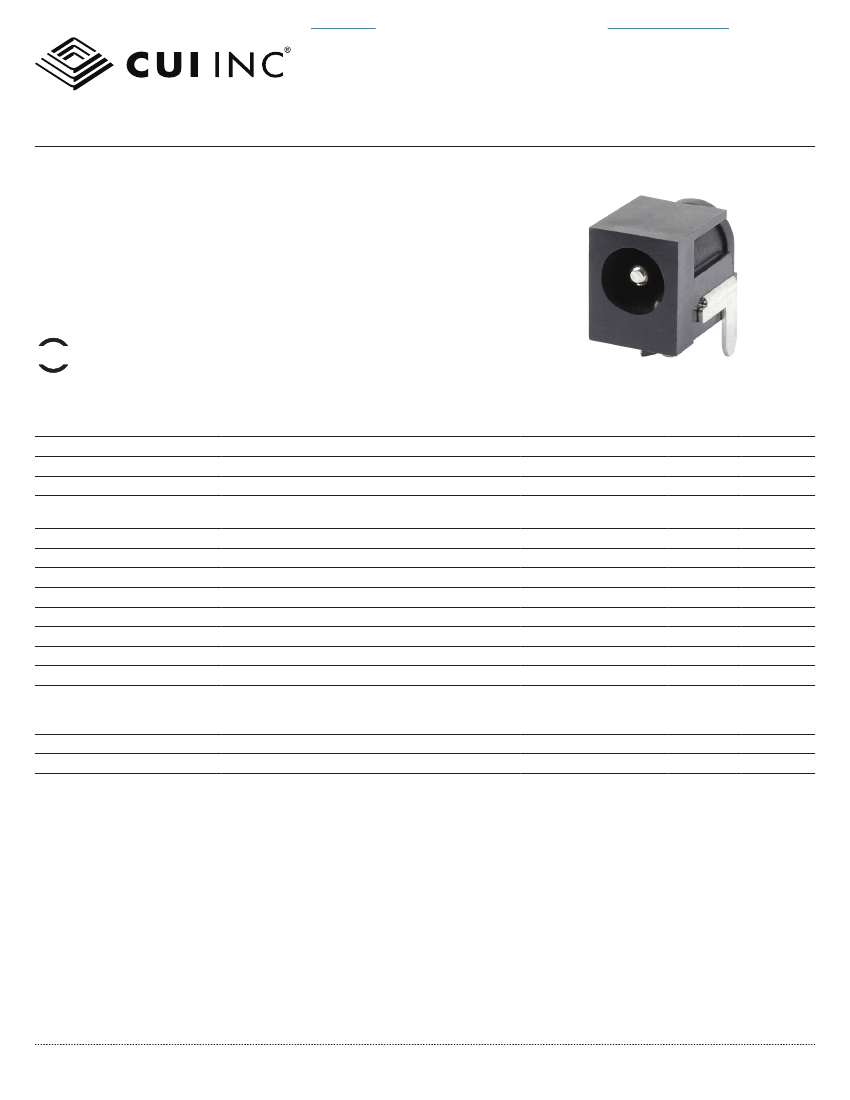

1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-057B
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016│
page
2 of 3

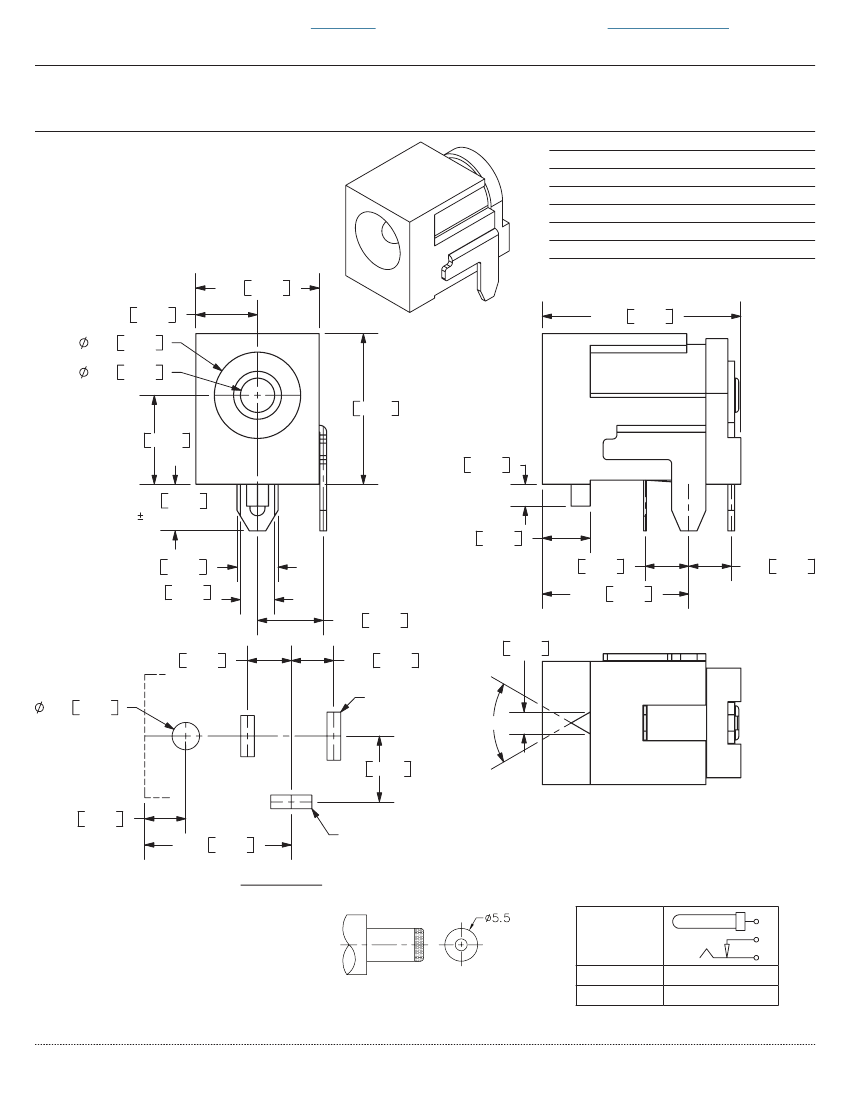

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PBT
PLATING
nickel
tin
tin
tin
9.0 0.354
4.50 0.177
6.30 0.248
2.50 0.098
11.0 0.433
6.50 0.256
1.60 0.063
3.4 0.134
0.3 (3 PLCS)
3.50 0.138
3.00 0.118
2.50 0.098
(2 PLCS)
3.2 0.126
10.7 0.421
4.8 0.189
3.1 0.122
1.00X3.50
60°
2
3
3.00 0.118
10.7 0.421
PCB LAYOUT
TOP VIEW
SCHEMATIC
Model
Center Pin
PJ-057B
Ø2.5 mm
14.5 0.571
2
3
1
3.1 0.122
3.2 0.126
2.00 0.079
1
1.60 0.063
4.8 0.189
1.00X3.00
(2 PLCS)
1
3
2
MATING PLUG
Jack Insertion Depth: 9.15 mm
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-057B
│
DESCRIPTION:
DC POWER JACK
date
04/14/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
applied new spec template
increased voltage rating
date
07/30/2007
09/27/2013
04/14/2016
The revision history provided is for informational purposes only and is believed to be accurate.
