DDB-SJS-QR2-1: DescriptionSingle Color LED, Blue, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size1MB，15 Pages; ManufacturerDOMINANT; Websitehttp://www.dominant-semi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DDB-SJS-QR2-1 Overview

Single Color LED, Blue, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2

DDB-SJS-QR2-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	BLUE
color@wavelength	Blue
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	3.65 V
Nominal luminous intensity	112.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.75 mm
method of packing	TAPE AND REEL 7\"
peak wavelength	470 nm
Maximum reverse voltage	5 V
shape	ROUND
surface mount	YES
Terminal pitch	3 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

DOMINANT

Innovating Illumination

DATA SHEET:

Opto Technologies

DomiLED

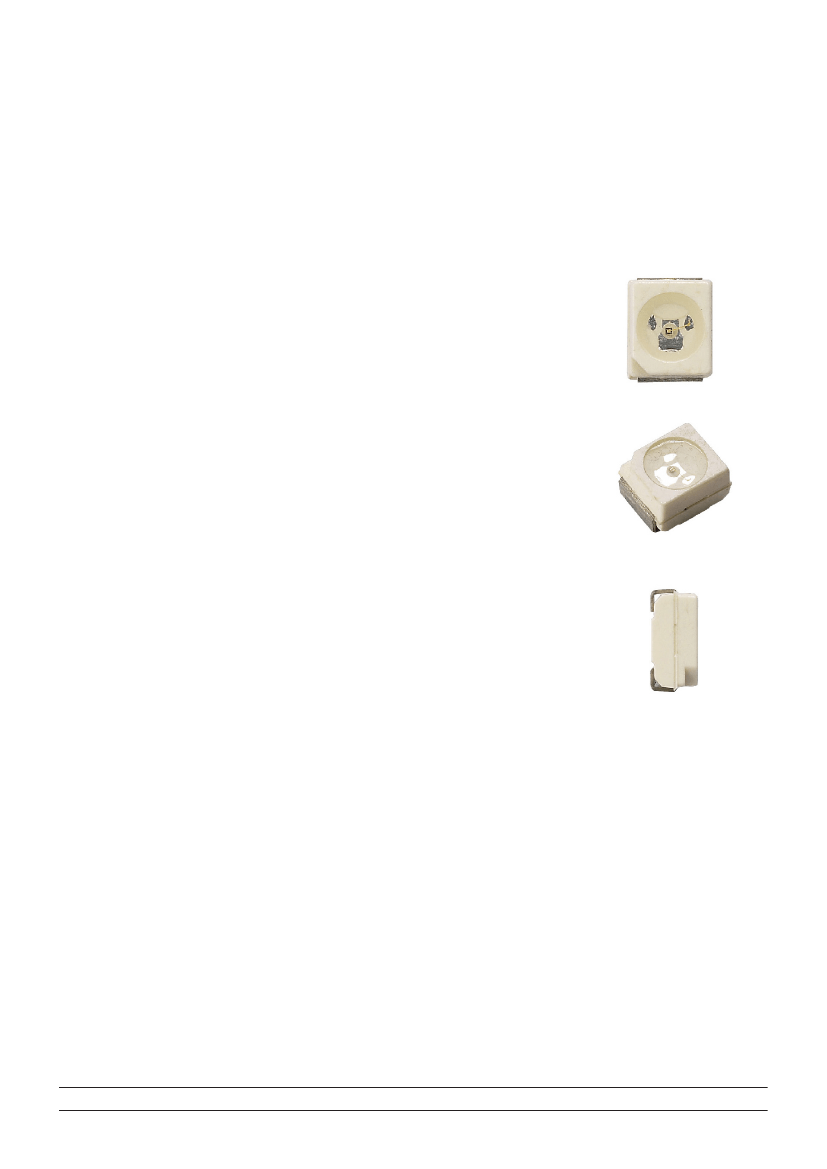

InGaN : DDx-xJx

DomiLED

Synonymous with function and performance, the

DomiLED

series is

perfectly suited for a variety of cross-industrial applications due to its

small package outline, durability and superior brightness.

Features:

High brightness surface mount LED.

Based on InGaN technology.

120° viewing angle.

Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.

Qualified according to JEDEC moisture sensitivity Level 2.

Compatible to IR reflow soldering.

Environmental friendly; RoHS compliance.

Applications:

Automotive: interior applications, eg: switches, telematics,

climate control system, dashboard, etc.

Consumer appliances: LCD illumination as in PDAs, LCD TV.

Communication: indicator and backlight in mobilephone.

Display: full color display video notice board.

Industrial: white goods (eg: Oven, microwave, etc.).

10/09/2013 V21.0

DDB-SJS-QR2-1 Related Products

	DDB-SJS-QR2-1	DDB-CJS-PQ2-1	DDT-SJS-ST2-1	DDT-UJS-T2V1-1	DDT-UJS-TU2-1	DDT-CJS-ST2-1	DDB-UJS-RS1-1
Description	Single Color LED, Blue, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Blue, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, True Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED	Single Color LED, True Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, True Green, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Blue, 3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color@wavelength	Blue	Blue	Blue-Green	Green	Blue-Green	Green	Blue
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	3.65 V	3.65 V	3.65 V	4 V	3.65 V	4 V	3.65 V
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.75 mm	1.75 mm	1.75 mm	1.85 mm	1.75 mm	1.75 mm	1.75 mm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maker	DOMINANT	DOMINANT	-	-	-	DOMINANT	DOMINANT
package instruction	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	-	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2	3.20 X 2.80 MM, 1.80 MM HEIGHT, ROHS COMPLIANT, PLASTIC PACKAGE-2
color	BLUE	BLUE	TRUE GREEN	-	TRUE GREEN	TRUE GREEN	BLUE
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
Nominal luminous intensity	112.5 mcd	71.5 mcd	285.0 mcd	-	450.0 mcd	285.0 mcd	180.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	-	1	1	1
Number of terminals	2	2	2	-	2	2	2
method of packing	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7"	-	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
peak wavelength	470 nm	470 nm	525 nm	-	525 nm	-	470 nm
shape	ROUND	ROUND	ROUND	-	ROUND	ROUND	ROUND
surface mount	YES	YES	YES	-	YES	YES	YES
Terminal pitch	3 mm	3 mm	3 mm	-	3 mm	3 mm	3 mm
Base Number Matches	1	1	1	1	1	-	-
