PCSB600-10-1Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> PCSB600-10-1Y

PCSB600-10-1Y: DescriptionTerminals Multi-Tap Conn Double-Sided Clear; CategoryThe connector terminals; File Size147KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PCSB600-10-1Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCSB600-10-1Y	-	-	View	Buy Now

PCSB600-10-1Y Overview

Terminals Multi-Tap Conn Double-Sided Clear

PCSB600-10-1Y Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panduit
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	10
Rated voltage	600 V
safety certificate	UL; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

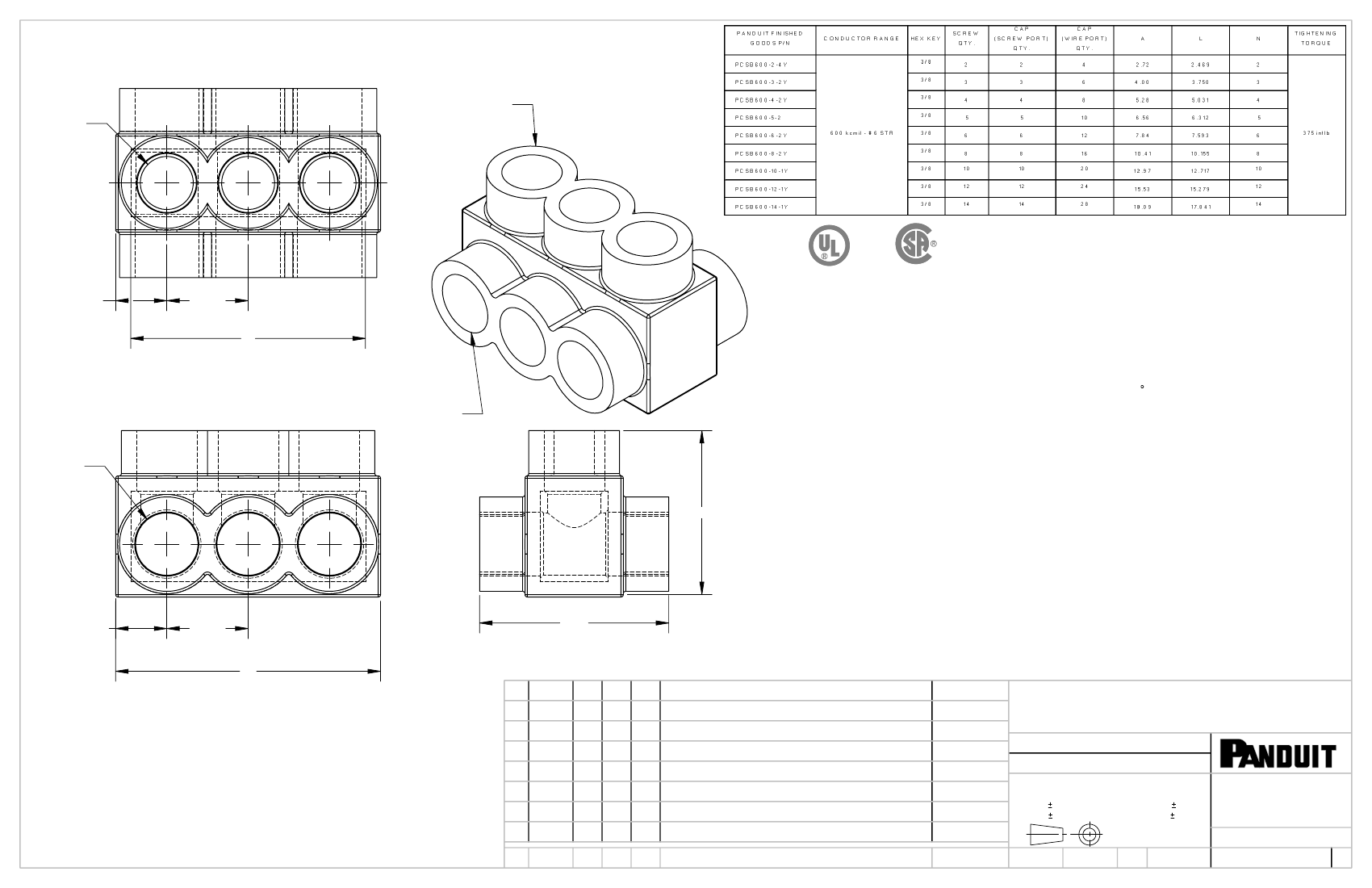

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

CLAMPING SCREW

ACCESS PORT (TYP.)

"N" PLCS

NOTES:

1. UL486A-UL486B LISTED, DUAL RATED CU9AL FOR ALUMINUM

OR COPPER CONDUCTORS. MEETS OR EXCEEDS ANSI C119.4

LISTED

CERTIFIED

2. SEE TABLE FOR WIRE RANGE.

3. STRIP LENGTH: 1.06 +.06/-0

.59

1.28

(TYP.)

4. FOR TIGHTENING TORQUE SEE TABLE

5. VOLTAGE RATING: 600 V. MAX. BUILDING WIRE,

1000 V. MAX. IN SIGNS & FIXTURES.

CONDUCTOR

PORT (TYP.)

THREE PORT CONNECTOR BLOCK SHOWN

WITH PLASTIC CLOSURE PLUGS REMOVED.

SEE TABLE FOR DIMENSIONS OF PARTS

WITH ADDITIONAL PORTS

6. TEMPERATURE RATING: 90 C (CU9AL).

7. CONNECTOR BLOCK BODY ARE MADE FROM ALUMINUM.

CONDUCTOR PORTS IN CONNECTOR BLOCK

ARE PREFILLED WITH AN OXIDE-INHIBITING COMPOUND.

8. CONNECTOR TO INCLUDE TIN PLATED ALUMINUM CLAMPING

SCREWS FOR EACH CONDUCTOR PORT.

1.36

"N" PLCS

9. INSULATION MATERIAL IS CLEAR PVC.

10. CLAMPING SCREW ACCESS PORTS AND ALL WIRE ENTRY PORTS ARE

PROVIDED WITH REMOVABLE PLASTIC CLOSURE PLUGS.

11. ALL DIMENSIONS SHOWN ARE NOMINAL.

12. ONLY ONE CONDUCTOR PER PORT ALLOWED.

.59

1.28

(TYP.)

1.56

13. PACKAGE QTY: -12 = 12 PCS.

-6 = 6 PCS.

-4 = 4 PCS.

14. THIS PART IS RoHS COMPLIANT.

TITLE

MULTI-TAP INSULATED CONNECTORS

PCSB600 SERIES

CUSTOMER DRAWING

N41530BB-C41531/07

C41530/07.SLDDRW

MATERIAL

ITEM REVISION NAME

DATASET FILE NAME

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XXX

.XX

.02

ANGLES

2/13

JHNU JHNU RGB

DRAWING RELEASED

N41530BB-C41544

SEE NOTES

DRAWING NUMBER

THIRD ANGLE

PROJECTION

DRAWN BY

C41530_07

SIZE

REV

DATE

CHK APR

DESCRIPTION

ECN

DATE

8/99

CHK

RLS

SCALE

NONE

SHEET 1 0F 1

PCSB600-10-1Y Related Products

	PCSB600-10-1Y	PCSB600-3-3Y	PCSB600-14-1Y	PCSB600-6-2Y
Description	Terminals Multi-Tap Conn Double-Sided Clear	Terminals Multi-Tap Conn Double-Sided Clear	Terminals Multi-Tap Conn Double-Sided Clear	Terminals Multi-Tap Conn Double-Sided Clear
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Panduit	Panduit	Panduit	Panduit
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	8 weeks	8 weeks	8 weeks	8 weeks
Fastening method	SCREW	SCREW	SCREW	SCREW
Installation type	CABLE	CABLE	CABLE	CABLE
Number of layers	1	1	1	1
Rows	1	1	1	1
Number of channels	10	3	14	6
Rated voltage	600 V	600 V	600 V	600 V
safety certificate	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Wire gauge	4 AWG	4 AWG	4 AWG	4 AWG
