Cobra
Sample Part Number
Mighty Mouse
805-061 triple-start with self-locking
coupling nut, exploded view

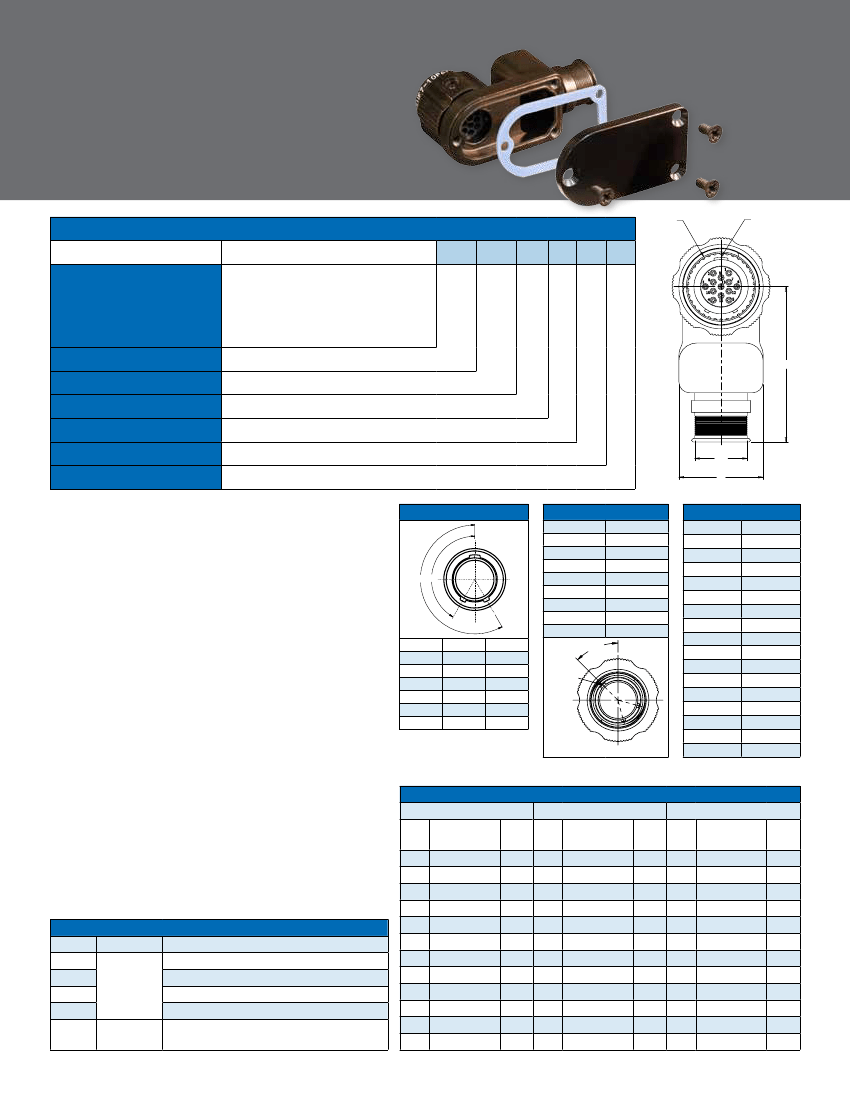

T E C H N I C A L S P E C I F I C AT I O N S
How To Order Mighty Mouse Cobra Plug Connector and Backshell Assemblies
B
Thread
Master
Key
801-069-26
801-069-26
Double-Start self-locking plug
with ratchet mechanism (the clicker)
804-066-06
QDC Push-Pull plug
805-061-16
Triple-Start plug with ratcheting
anti-decoupling mechanism
M, MT, NF, ZNU, Z1
- See Table I
ZNU
8-13
P
A
1
05
Connector Series and Mighty
Mouse Cobra Basic Part Number
Material/Finish
F
Shell Size - Contact Arrangement
See Table V - A: 801-069 B: 804-066 C: 805-061
Contact Style
Polarization Key Position
Cable Exit Direction
Cable Entry Size
A
= Pin, solder
B
= Socket, solder
P
= Pin, Crimp
S
= Socket, crimp
A, B, C, D, E, F
- See Table III
1, 2, 3, 4, 5, 6, 7, 8
- See Table IV
See Table VI
Table III: Key Positions
Table IV: Exit Direction
Direction
C°
1
0°
2
45°
3
90°
4
135°
5
180°
6
225°
7
270°
8
315°
C°
ØC
J
Table VI - Cable Entry
Code
Entry Size
02
.125
03
.188
04
.250
05
.313
06
.375
07
.438
08
.500
09
.563
B°
10
.625
210°
11
.688
Master
210°
12
.750
Key
230°
13*
.813
275°
14*
.875
275°
15*
.938
210°
16*
1.000
17*
1.063
Direction 2 Shown
* Entry codes 13-17 not available
for Series 804 Cobra
Table V - Shell Size/Contact Arrangements
Specifications
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Current Rating: #23 5 Amps
Test Voltage (DWV) #23: 500 VAC Sea Level
Insulation Resistance: 5000 megohms minimum
Contact Resistance: 73 millivolt drop at 5 Amp test current
Mating Cycles Series 801 and 804: 2000; Series 805: 500
Operating Temperature: -55° C. to +150° C.
Shielding Effectiveness: 50 dB min from 100MHz to 1000MHz.
Magnetic Permeability: 2.0µ
Vibration: 37g / Shock: 300g
Immersion, mated: 1meter water immersion for 1 hour
Contacts: Copper alloy, gold plated
Backshell Housing and Lid: Aluminum or Stainless Steel
Backshell Sealing Gasket and Interfacial Seal: Fluorosilicone
Screws: 300 Series Stainless Steel
Insulator: LCP
B° A°
Materials/finish
A
B
C
D
E
F
A°
150°
75°
95°
140°
75°
95°
• Rear insulator grommet not supplied.
• Cobra plug connectors mate with respective series receptacles
with same polarization and opposite contact gender.
• Hand crimp tool: P/N 809-015. Positioner for hand tool: P/N
809-005. Insertion/extraction tool P/N 809-088.
• Crimp barrel accommodates 22, 24, 26 and 28 gage wire.
• All Cobra plugs equipped with Size #23 contacts.
Symbol
M
NF
MT
ZNU
Z1
Stainless
Steel
Table I: Shell Material/Finish
Material
Finish
Aluminum
Alloy
Electroless Nickel (RoHS)
Cad/O.D. over Electroless Nickel
Nickel-PTFE (RoHS)
Black Zinc Nickel over Electroless Nickel (RoHS)
Passivate
Notes
A: 801-069
B: 804-066
C: 805-061
Shell
Contact
Max Shell
Contact
Max Shell
Contact
Max
Size Arrangement Entry Size Arrangement Entry Size Arrangement Entry
5
6
7
8
9
10
11
13
16
17
19
21
5-3
6-4, 6-6, 6-7
7-10
8-13
9-19
10-26
11-31
13-37
16-55
17-85
19-100
21-130
03
04
05
06
07
08
09
10
12
13
15
17
5
6
7
8
9
10
12
14
5-3
6-4, 6-6, 6-7
7-10
8-13
9-19
10-26
12-37
14-55
03
04
05
06
07
08
10
12
8
9
10
11
12
13
15
18
19
21
23
8-4, 8-6, 8-7
9-10
10-13
11-19
12-26
13-31
15-37
18-55
19-85
21-100
23-130
04
05
06
07
08
09
10
12
13
15
17

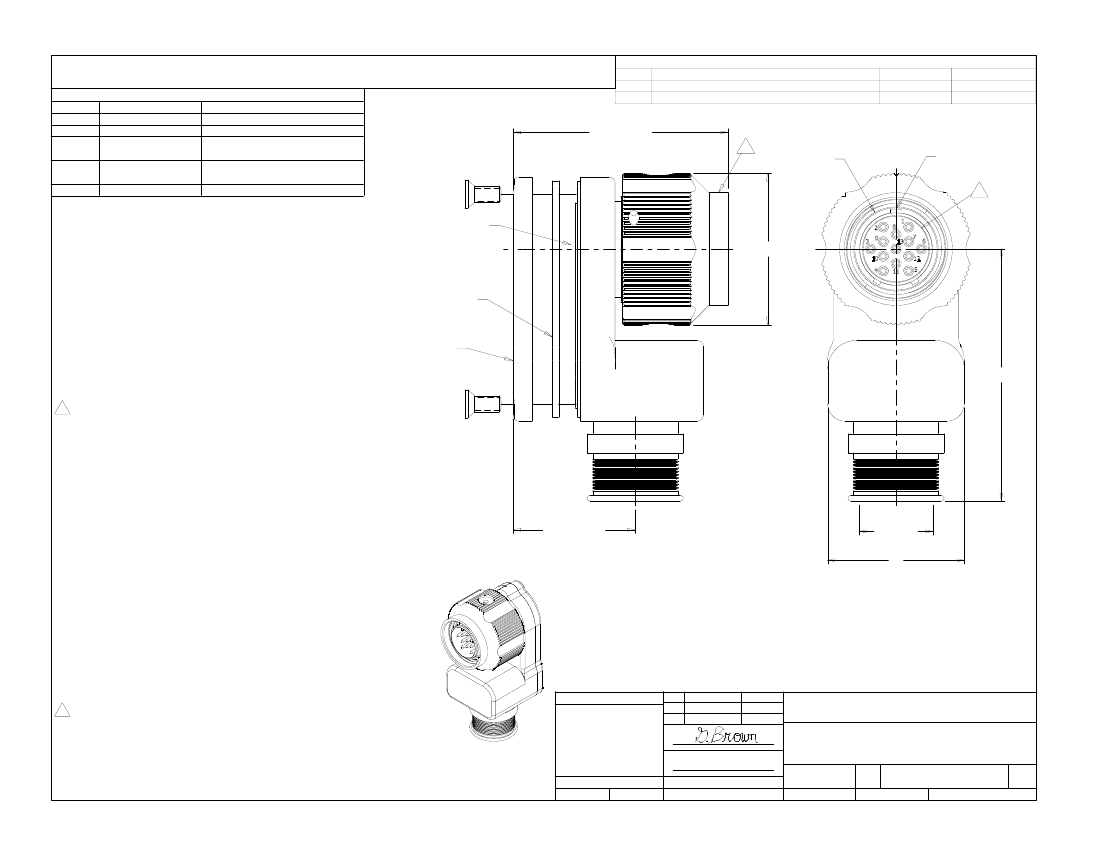

S:\part\s8\80\801-0691OF2.prt
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO BE DISCLOSED, REPRODUCED IN
WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT
WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING
EVALUATION AND INCORPORATION INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
CLASS
M
MT
NF
ZNU
Z1
CONTACT GLENAIR FOR ADDITIONAL FINISHES
TABLE I - MATERIAL / FINISH CLASS
SHELL MATERIAL
FINISH
ALUMINUM ALLOY ELECTROLESS NICKEL (RoHS)
ALUMINUM ALLOY NICKEL-PTFE (RoHS)
OLIVE DRAB CADMIUM OVER
ALUMINUM ALLOY
ELECTROLESS NICKEL
BLACK ZINC-NICKEL OVER
ALUMINUM ALLOY
ELECTROLESS NICKEL (RoHS)
STAINLESS STEEL PASSIVATE (RoHS)
REV
A
B
REVISION HISTORY
DESCRIPTION
PRODUCTION RELEASE
REVISED PER DCN #45302
801-069
DATE
10/09/12
02/12/13
APPROVED
EAG
EAG
D
MAX
ASSEMBLED
1
THREAD
B
MASTER
KEY
7
REAR INSULATOR
GROMMET NOT
SUPPLIED
øA
GASKET
COVER
NOTES:
UNLESS OTHERWISE SPECIFIED
F
1. ASSEMBLY TO BE IDENTIFIED WITH GLENAIR'S NAME, PART NUMBER,
AND DATE CODE, SPACE PERMITTING.
2. MATERIAL / FINISH:
PLUG BARREL, COUPLING NUT, HOUSING, COVER - ALUMINUM
ALLOY OR STAINLESS STEEL / SEE TABLE I
INSULATOR - LCP / NONE
INTERFACIAL SEAL, GASKET - FLUOROSILICONE / NONE
CONTACT - COPPER ALLOY / GOLD PLATE PER ASTM B 488, TYPE II,
CODE C, CLASS 1.25 (.00005 MIN THK), OVER A SUITABLE UNDERPLATE
CONTACT RETENTION CLIP - BERYLLIUM COPPER ALLOY / NONE
HARDWARE - STAINLESS STEEL / PASSIVATE OR BLACK OXIDE
RETAINING WIRE - TORLON / NONE
DETENT SPRING / RIVET - STAINLESS STEEL / PASSIVATE
3. CONTACTS ARE SIZE 23.
4. CONSULT FACTORY FOR ADDITIONAL CONTACT ARRANGEMENTS AND/OR SHELL
ORIENTATIONS.
5. CRIMP BARREL ACCOMMODATES 22, 24, 26, AND 28 GAGE WIRE.
6. CRIMP TOOL DATA:
A. HAND CRIMP TOOL: GLENAIR PART NO. 809-015.
B. POSITIONER FOR HAND TOOL: GLENAIR PART NO. 809-005.
C. INSERTION/EXTRACTION TOOL: GLENAIR PART NO. 809-088.
7. CONTACT ARRANGEMENT, CONTACT GENDER, KEY POSITIONS, AND SHELL
ORIENTATION SHOWN ARE FOR REFERENCE ONLY.
8. THIS CONNECTOR MATES WITH ALL QUICK COUPLING, HIGH DENSITY RECEPTACLE
CONNECTORS WITH SAME POLARIZATION AND OPPOSITE CONTACT GENDER
(801-003 THROUGH 801-006 AND 801-009 THROUGH 801-012).
9. REAR INSULATOR GROMMET NOT SUPPLIED.
ASSEMBLED
E
MAX
ENTRY
SIZE
J
FACE VIEW OF PLUG
AS VIEWED FROM ENGAGING END
(8-13PA1 SHOWN)
UNLESS OTHERWISE SPECIFIED DRAWN
CHECK
DIMENSIONS ARE IN INCHES
ENGR
TOLERANCES
FRACTIONS
DECIMALS
ANGLES
± 1/16
.XX
.XXX
± .03
EAG
GSB
EAG
APPROVED
APPROVED
03/05/12
03/05/12
03/05/12
TITLE
GLENAIR, INC.
PLUG CONNECTOR,
SERIES 801, RATCHETING,
COBRA STYLE
WEIGHT
1211 AIR WAY - GLENDALE - CALIFORNIA 91201
± 2°
± .015
B/F
10C5078
P/C
DO NOT SCALE THIS DRAWING
80
RELEASE DATE
ORIGINAL
RELEASE DATE
03/05/12
03/05/12
CODE IDENT. NO. SIZE DRAWING NO.
SCALE
06324 A
N.A.
N.A.
801-069
SHEET
REV.
1
OF
2
B
1 of 1
S:\part\s8\80\801-0692OF2.prt
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO BE DISCLOSED, REPRODUCED IN
WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT
WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING
EVALUATION AND INCORPORATION INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
REVISION HISTORY
SEE SHEET 1 OF 2
H
J
MAX ENTRY
1.23 [31.2] .500 [12.70]
03
1.25 [31.8] .560 [14.22]
04
1.27 [32.3] .650 [16.51]
05
1.28 [32.5] .710 [18.03]
06
1.31 [33.3] .770 [19.56]
07
08
1.35 [34.3] .835 [21.21]
T.B.D.
T.B.D.
09
10
1.63 [41.4] .950 [24.13]
T.B.D.
T.B.D.
12
13
1.78 [45.2] 1.180 [29.97]
T.B.D.
T.B.D.
15
T.B.D.
T.B.D.
17
TABLE IV-EXIT DIRECTION
C°
DIRECTION
1
0°
2
45°
3
90°
4
135°
5
180°
6
225°
7
270°
8
315°
MASTER
KEY
801-069
TABLE VI-CABLE ENTRY
CODE
ENTRY SIZE
02
.125
03
.188
.250
04
05
.313
06
.375
07
.438
08
.500
09
.563
10
.625
11
.688
12
.750
13
.813
.875
14
15
.938
16
1.000
17
1.063
SHELL SIZE
5
6
7
8
9
10
11
13
16
17
19
21
øA
.65 [16.5]
.65 [16.5]
.69 [17.5]
.79 [20.1]
.83 [21.1]
.92 [23.4]
T.B.D.
1.10 [27.9]
1.34 [34.0]
1.45 [36.8]
1.50 [38.1]
1.65 [41.9]
B THREAD
.3125-.05P-.1L-2B
.3750-.05P-.1L-2B
.4375-.05P-.1L-2B
.5000-.05P-.1L-2B
.5625-.05P-.1L-2B
.6250-.05P-.1L-2B
.6875-.05P-.1L-2B
.8125-.1P-.2L-2B
1.0000-.1P-.2L-2B
1.0625-.1P-.2L-2B
1.1875-.1P-.2L-2B
1.3125-.1P-.2L-2B
TABLE II - DIMENSIONAL DATA
F
D
E
.32 [8.1]
1.21 [30.7]
.84 [21.3]
.86 [21.8]
.34 [8.6]
1.24 [31.5]
.88 [22.4]
.39 [9.9]
1.28 [32.5]
.89 [22.6]
.42 [10.7] 1.31 [33.3]
.92 [23.4]
.45 [11.4] 1.34 [34.0]
.96 [24.4]
.48 [12.2] 1.37 [34.8]
T.B.D.
T.B.D.
T.B.D.
1.13 [28.7] .52 [13.2] 1.48 [37.6]
T.B.D.
T.B.D.
T.B.D.
1.28 [32.5] .63 [16.0] 1.78 [45.2]
T.B.D.
T.B.D.
T.B.D.
T.B.D.
T.B.D.
T.B.D.
G
1.40 [35.6]
1.42 [36.1]
1.44 [36.6]
1.45 [36.8]
1.48 [37.6]
1.52 [38.6]
T.B.D.
1.80 [45.7]
T.B.D.
1.92 [48.8]
T.B.D.
T.B.D.
MASTER
KEY
A°
B°
KEY POSITION
(POSITION A SHOWN)

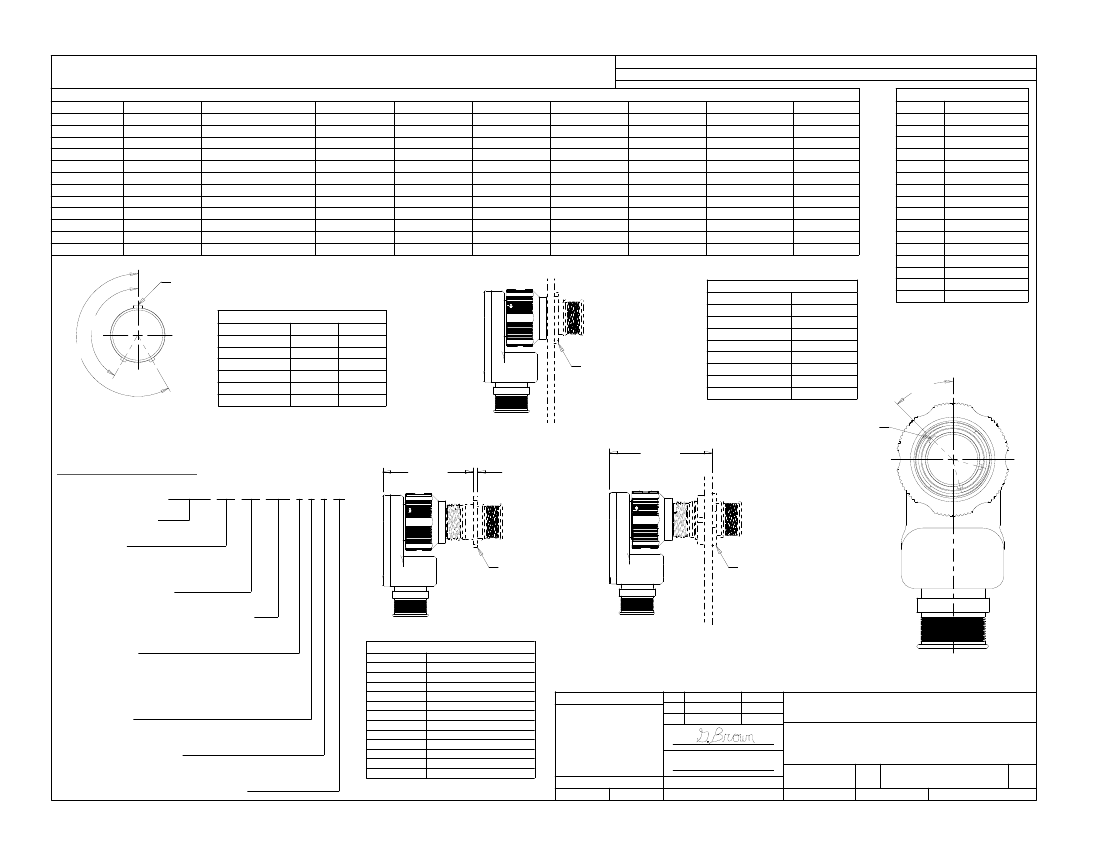

PART NUMBER DEVELOPMENT
EXAMPLE:
CONNECTOR SERIES
SHELL STYLE
TABLE III - KEY POSITION
POSITION
A°
B°
A (NORMAL)
150°
210°
B
75°
210°
C
95°
230°
D
275°
140°
E
75°
275°
F
95°
210°
REAR-MOUNTED
SQUARE FLANGE
RECEPTACLE
C°
SHOWN INSTALLED
H
MAX
.060
[1.52]
G
MAX
801-069 -26 ZNU 8-13 P A 1 05
-26 = SELF-LOCKING PLUG WITH RATCHET
MECHANISM (THE "CLICKER")
CLASS (SEE TABLE I)
SHELL SIZE - CONTACT ARRANGEMENT
(SEE TABLE V)
SQUARE FLANGE
RECEPTACLE
MATING SPACE
REQUIREMENT
TABLE V - AVAILABLE ARRANGEMENTS
SHELL SIZE CONTACT ARRANGEMENT*
5
5-3
6-4, 6-6, 6-7
6
7
7-10
8
8-13
9
9-19
10
10-26
11
11-31
13
13-37
16
16-55
17
17-85
19
19-100
21
21-130
*: # FOLLOWING DASH = # OF CONTACTS
JAM NUT RECEPTACLE
MATING SPACE
REQUIREMENT
CONTACT STYLE
A
B
P
S
=
=
=
=
PIN, SOLDER
SOCKET, SOLDER
PIN, CRIMP
SOCKET, CRIMP
CABLE EXIT DIRECTION
UNLESS OTHERWISE SPECIFIED DRAWN
CHECK
DIMENSIONS ARE IN INCHES
ENGR
TOLERANCES
FRACTIONS
DECIMALS
ANGLES
± 1/16
.XX
.XXX
± .03
KEY POSITION
A THROUGH F (SEE TABLE III)
EAG
GSB
EAG
APPROVED
APPROVED
03/05/12
03/05/12
03/05/12
TITLE
GLENAIR, INC.
PLUG CONNECTOR,
SERIES 801, RATCHETING,
COBRA STYLE
WEIGHT
(DIRECTION 2 SHOWN)
1211 AIR WAY - GLENDALE - CALIFORNIA 91201
CABLE EXIT DIRECTION
1 THROUGH 8 (SEE TABLE IV)
± 2°
± .015
CABLE ENTRY SIZE (SEE TABLE VI)
B/F
10C5078
P/C
DO NOT SCALE THIS DRAWING
80
RELEASE DATE
ORIGINAL
RELEASE DATE
03/05/12
03/05/12
CODE IDENT. NO. SIZE DRAWING NO.
SCALE
06324 A
N.A.
N.A.
801-069
SHEET
REV.
2
OF
2
B
1 of 1

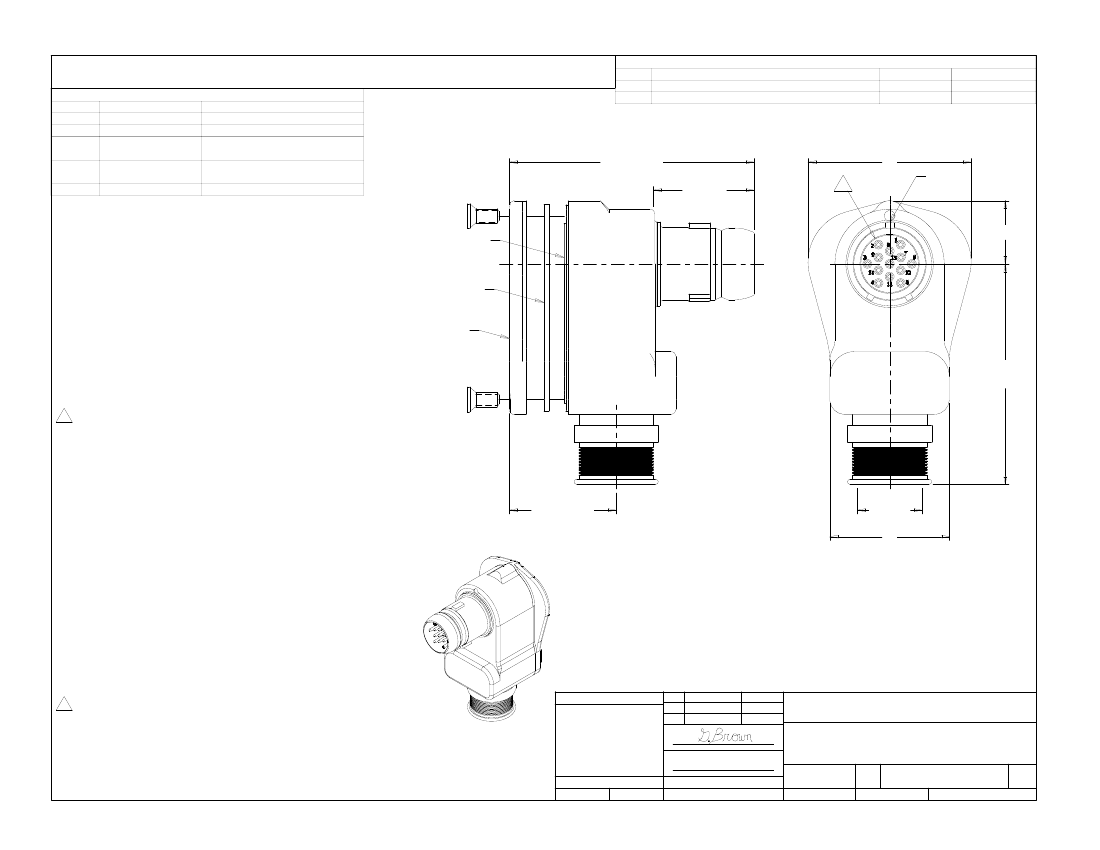

S:\part\s8\80\804-0661OF2.prt
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO BE DISCLOSED, REPRODUCED IN
WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT
WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING
EVALUATION AND INCORPORATION INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
CLASS
M
MT
NF
ZNU
Z1
CONTACT GLENAIR FOR ADDITIONAL FINISHES
TABLE I - MATERIAL / FINISH CLASS
SHELL MATERIAL
FINISH
ALUMINUM ALLOY ELECTROLESS NICKEL (RoHS)
ALUMINUM ALLOY NICKEL-PTFE (RoHS)
OLIVE DRAB CADMIUM OVER
ALUMINUM ALLOY
ELECTROLESS NICKEL
BLACK ZINC-NICKEL OVER
ALUMINUM ALLOY
ELECTROLESS NICKEL (RoHS)
STAINLESS STEEL PASSIVATE (RoHS)
REV
A
B
REVISION HISTORY
DESCRIPTION
PRODUCTION RELEASE
REVISED PER DCN #45302
804-066
DATE
01/18/13
02/12/13
APPROVED
EAG
EAG
ASSEMBLED
D
MAX
A
.60
[15.2]
7
MASTER
KEY
REAR INSULATOR
GROMMET NOT
SUPPLIED
GASKET
COVER
B
NOTES:
UNLESS OTHERWISE SPECIFIED
MAX
F
1. ASSEMBLY TO BE IDENTIFIED WITH GLENAIR'S NAME, PART NUMBER,
AND DATE CODE, SPACE PERMITTING.
2. MATERIAL / FINISH:
PLUG BARREL, HOUSING, COVER - ALUMINUM ALLOY OR
STAINLESS STEEL / SEE TABLE I
INSULATOR - LCP / NONE
INTERFACIAL SEAL, GASKET - FLUOROSILICONE / NONE
CONTACT - COPPER ALLOY / GOLD PLATE PER ASTM B 488, TYPE II,
CODE C, CLASS 1.25 (.00005 MIN THK), OVER A SUITABLE UNDERPLATE
CONTACT RETENTION CLIP - BERYLLIUM COPPER ALLOY / NONE
HARDWARE - STAINLESS STEEL / PASSIVATE OR BLACK OXIDE
3. CONTACTS ARE SIZE 23.
4. CONSULT FACTORY FOR ADDITIONAL CONTACT ARRANGEMENTS AND/OR SHELL
ORIENTATIONS.
5. CRIMP BARREL ACCOMMODATES 22, 24, 26, AND 28 GAGE WIRE.
6. CRIMP TOOL DATA:
A. HAND CRIMP TOOL: GLENAIR PART NO. 809-015.
B. POSITIONER FOR HAND TOOL: GLENAIR PART NO. 809-005.
C. INSERTION/EXTRACTION TOOL: GLENAIR PART NO. 809-088.
7. CONTACT ARRANGEMENT, CONTACT GENDER, KEY POSITIONS, AND SHELL
ORIENTATION SHOWN ARE FOR REFERENCE ONLY.
8. THIS CONNECTOR MATES WITH ALL QUICK-DISCONNECT, HIGH DENSITY RECEPTACLE
CONNECTORS WITH SAME POLARIZATION AND OPPOSITE CONTACT GENDER
(804-003 THROUGH 804-006, 804-009, 804-020, AND 804-021).
9. REAR INSULATOR GROMMET NOT SUPPLIED.
UNLESS OTHERWISE SPECIFIED DRAWN
CHECK
DIMENSIONS ARE IN INCHES
ENGR
TOLERANCES
FRACTIONS
DECIMALS
ANGLES
± 1/16
.XX
.XXX
± .03
ASSEMBLED
E
ENTRY
SIZE
J
FACE VIEW OF PLUG
AS VIEWED FROM ENGAGING END
(8-13PA1 SHOWN)
EAG
JMT
EAG
APPROVED
APPROVED
01/18/13
01/18/13
01/18/13
TITLE
GLENAIR, INC.
PLUG CONNECTOR,
SERIES 804,
COBRA STYLE
N.A.
SHEET
1211 AIR WAY - GLENDALE - CALIFORNIA 91201
± 2°
± .015
B/F
12C3202
P/C
DO NOT SCALE THIS DRAWING
80
RELEASE DATE
ORIGINAL
RELEASE DATE
01/18/13
01/18/13
CODE IDENT. NO. SIZE DRAWING NO.
SCALE
06324 A
N.A.
WEIGHT
804-066
REV.
1
OF
2
B
1 of 1

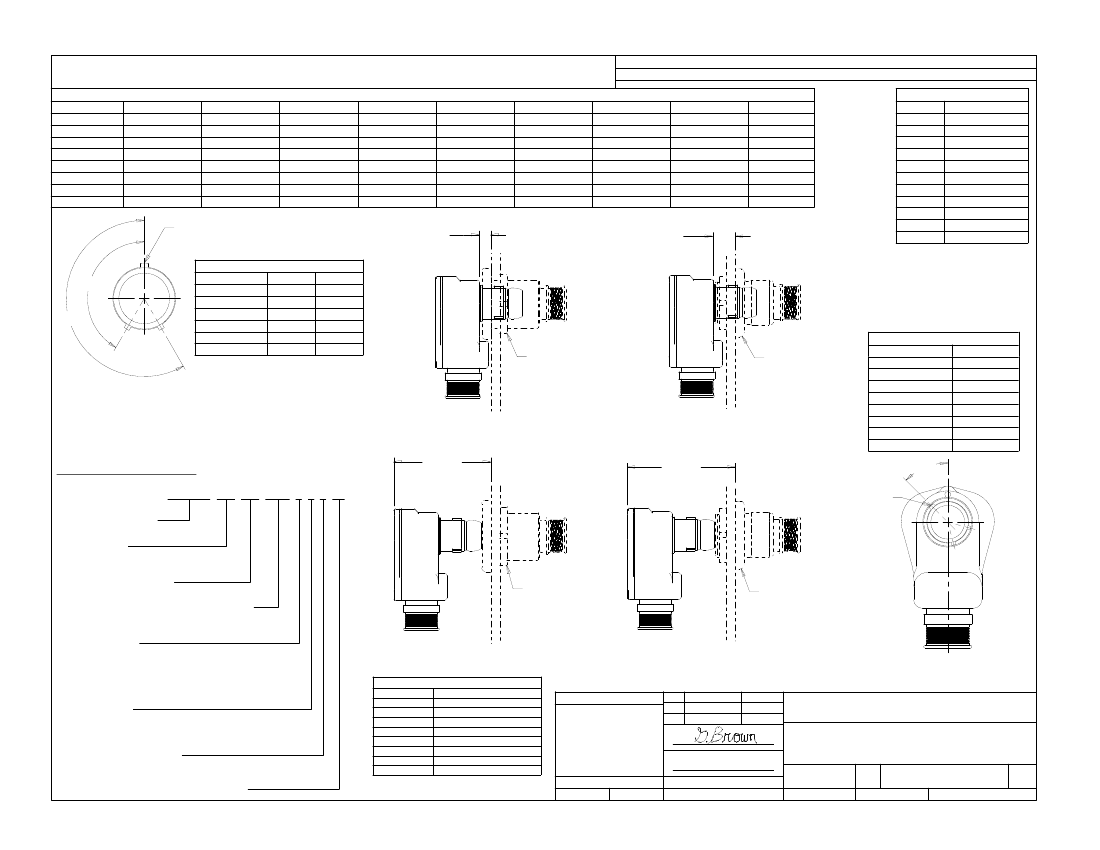

S:\part\s8\80\804-0662OF2.prt
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO BE DISCLOSED, REPRODUCED IN
WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT
WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING
EVALUATION AND INCORPORATION INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
REVISION HISTORY
SEE SHEET 1 OF 2
J
.500 [12.7]
.560 [14.2]
.650 [16.5]
.710 [18.0]
.770 [19.6]
.835 [21.2]
.950 [24.1]
T.B.D.
MAX ENTRY
03
04
05
06
07
08
10
12
804-066
TABLE VI-CABLE ENTRY
CODE
ENTRY SIZE
02
.125
03
.188
.250
04
05
.313
06
.375
07
.438
08
.500
09
.563
10
.625
11
.688
12
.750
SHELL SIZE
5
6
7
8
9
10
12
14
øA
.67 [17.0]
.75 [19.1]
.88 [22.4]
.97 [24.6]
1.06 [26.9]
1.15 [29.2]
1.33 [33.8]
T.B.D.
B
.27 [6.9]
.30 [7.6]
.34 [8.6]
.38 [9.7]
.41 [10.4]
.44 [11.2]
.50 [12.7]
T.B.D.
TABLE II - DIMENSIONAL DATA
F
D
E
1.03 [26.2]
.29 [7.4]
1.24 [31.5]
.31 [7.9]
1.27 [32.3]
1.08 [27.4]
1.20 [30.5]
.36 [9.1]
1.31 [33.3]
.39 [9.9]
1.24 [31.5]
1.34 [34.0]
1.30 [33.0] .42 [10.7] 1.37 [34.8]
1.35 [34.3] .45 [11.4] 1.40 [35.6]
1.44 [36.6] .49 [12.4] 1.51 [38.4]
T.B.D.
T.B.D.
T.B.D.
.16
(
[4.1]
)
G
1.31 [33.4]
1.36 [34.5]
1.47 [37.3]
1.51 [38.4]
1.58 [40.1]
1.62 [41.1]
1.71 [43.4]
T.B.D.
H
1.16 [29.5]
1.21 [30.7]
1.32 [33.5]
1.36 [34.5]
1.43 [36.3]
1.47 [37.3]
1.56 [39.6]
T.B.D.
MASTER
KEY
.31
(
[8.0]
)
A°
B°
TABLE III - KEY POSITION
A°
POSITION
B°
A (NORMAL)
150°
210°
B
75°
210°
C
95°
230°
D
140°
275°
E
75°
275°
F
95°
210°
FRONT-MOUNTED
RECEPTACLE
REAR-MOUNTED
RECEPTACLE
KEY POSITION
(POSITION A SHOWN)
SHOWN INSTALLED
H
MAX
SHOWN INSTALLED
G
MAX
TABLE IV-EXIT DIRECTION
DIRECTION
C°
1
0°
2
45°
3
90°
135°
4
5
180°
6
225°
7
270°
8
315°
PART NUMBER DEVELOPMENT
EXAMPLE:
CONNECTOR SERIES
SHELL STYLE
-06 = PLUG
C°
MASTER
KEY
804-066 -06 ZNU 8-13 P A 1 05
CLASS (SEE TABLE I)
SHELL SIZE - CONTACT ARRANGEMENT
(SEE TABLE V)
CONTACT STYLE
A
B
P
S
=
=
=
=
FRONT-MOUNTED
RECEPTACLE
MATING SPACE
REQUIREMENT
REAR-MOUNTED
RECEPTACLE
MATING SPACE
REQUIREMENT
PIN, SOLDER
SOCKET, SOLDER
PIN, CRIMP
SOCKET, CRIMP
KEY POSITION
A THROUGH F (SEE TABLE III)
OMIT FOR SINGLE MASTER KEY
CABLE EXIT DIRECTION
1 THROUGH 8 (SEE TABLE IV)
CABLE ENTRY SIZE (SEE TABLE VI)
TABLE V - AVAILABLE ARRANGEMENTS
SHELL SIZE CONTACT ARRANGEMENT*
5
5-3
6-4, 6-6, 6-7
6
7
7-10
8
8-13
9
9-19
10
10-26
12
12-37
14
14-55
*: # FOLLOWING DASH = # OF CONTACTS
CABLE EXIT DIRECTION
UNLESS OTHERWISE SPECIFIED DRAWN
CHECK
DIMENSIONS ARE IN INCHES
ENGR
TOLERANCES
FRACTIONS
DECIMALS
ANGLES
± 1/16
.XX
.XXX
± .03
EAG
JMT
EAG
APPROVED
APPROVED
01/18/13
01/18/13
01/18/13
TITLE
GLENAIR, INC.
PLUG CONNECTOR,
SERIES 804,
COBRA STYLE
N.A.
SHEET
(DIRECTION 2 SHOWN)
1211 AIR WAY - GLENDALE - CALIFORNIA 91201
± 2°
± .015
B/F
12C3202
P/C
DO NOT SCALE THIS DRAWING
80
RELEASE DATE
ORIGINAL
RELEASE DATE
01/18/13
01/18/13
CODE IDENT. NO. SIZE DRAWING NO.
SCALE
06324 A
N.A.
WEIGHT
804-066
REV.
2
OF
2
B
1 of 1
京公网安备 11010802033920号
EEWORLD
