UWT1HR47MCR1GB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UWT1HR47MCR1GB

UWT1HR47MCR1GB: DescriptionAluminum Electrolytic Capacitors - SMD 0.47uF 50V 105c 4x5.4 20%; CategoryPassive components capacitor; File Size1MB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UWT1HR47MCR1GB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UWT1HR47MCR1GB	-	-	View	Buy Now

UWT1HR47MCR1GB Overview

Aluminum Electrolytic Capacitors - SMD 0.47uF 50V 105c 4x5.4 20%

UWT1HR47MCR1GB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	, 1717
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Available with 3mm Dia. On Request
diameter	4 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.003 mA
length	10 mm
Manufacturer's serial number	WT
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	3.8 mA
series	WT
size code	1717
surface mount	YES
Delta tangent	0.14
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT

Preview

Download Datasheet

View All

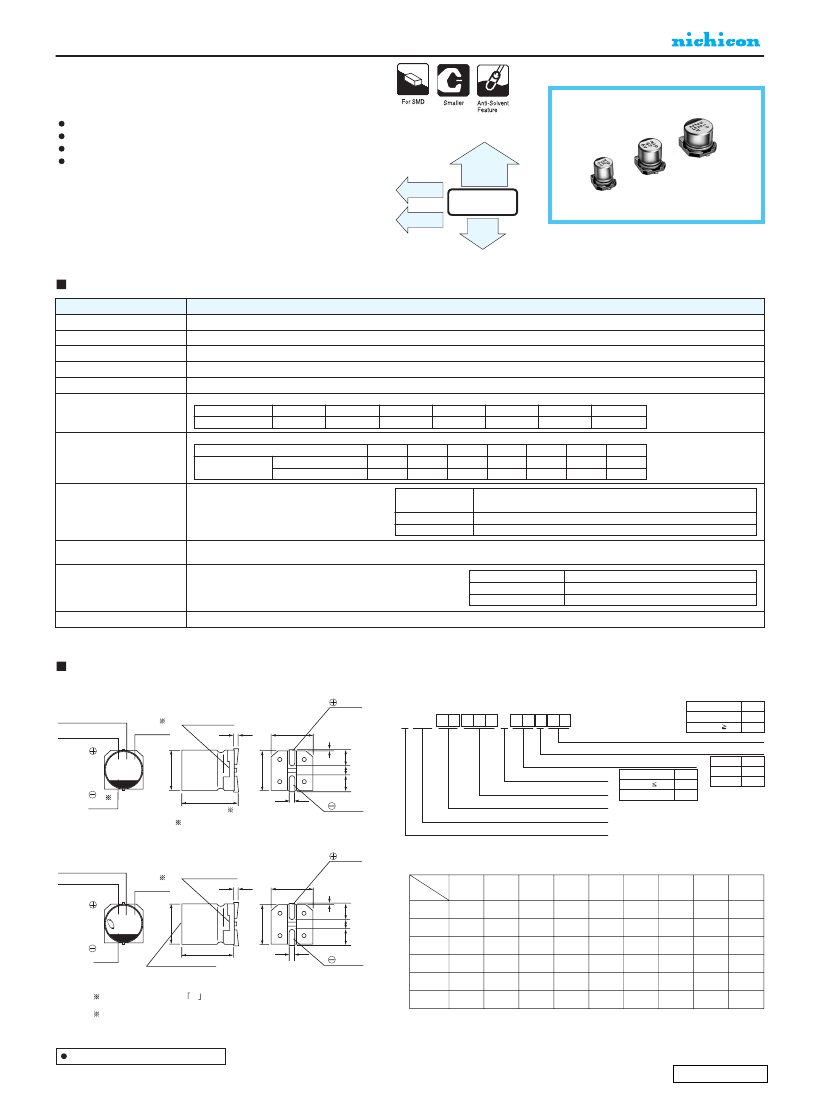

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Wide Temperature Range

series

Chip type operating over wide temperature range of to – 55 to +105

°C

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine fed with carrier tape.

Compliant to the RoHS directive (2011/65/EU).

High

Temperature

Reflow

Low

impeadance

Smaller

Long Life

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

Performance Characteristics

–55 to +105°C

4 to 50V

0.1 to 1500µF

±20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.

Measurement frequency : 120Hz at 20°C

Rated voltage (V)

tan

(MAX.)

0.40

6.3

0.30

0.24

6.3

0.20

0.16

0.14

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

ZT / Z20 (MAX.)

Z– 40°C / Z+20°C

Endurance

The specifications listed at right shall be

met when the capacitors are restored to

20°C after the rated voltage is applied for

1000 hours at 105°C.

Capacitance

change

Within ±25% of the initial capacitance value for capacitors of

φ3mm

unit, and 16V or less.

Within ±20% of the initial capacitance value for capacitors of 25V or more.

tan

200% or less than the initial specified value

Leakage current

Less than or equal to the initial specified value

Shelf Life

Resistance to soldering

heat

Marking

After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

The capacitors are kept on a hot plate for 30 seconds, which

Capacitance change

Within ±10% of the initial capacitance value

is maintained at 250°C. The capacitors shall meet the

Less than or equal to the initial specified value

tan

characteristic requirements listed at right when they are

Less than or equal to the initial specified value

Leakage current

removed from the plate and restored to 20°C.

Black print on the case top.

Chip Type

(φ3 to

φ8 ×

5.4 )

Capacitance

Type numbering system (Example : 16V 10

Positive

(φ3 to

φ8 ×

5.4 )

Positive

0.5 MAX.

Capacitance

105˚C Marking

Voltage

Plastic platform

0.3 MAX.

0.5 MAX.

C±0.2

φD±0.5

A±0.2

105˚C Marking

Voltage

0.3 MAX.

B±0.2

C±0.2

UWT 1 C 1 0 0 MC L 1 G B

A±0.2

9 10 11 12 13 14

UWT 1 C 1 0 0 MC L 1 G B

φD

code

3 to 8 (5.4L)

6.3 to 10 (L 5.8) GS

Package code

Size code

φD

4 to 10

code

6.3

A2P

16V

A2P

A±0.2

φD±0.5

B±0.2

Configuration

Capacitance tolerance (±20%)

A±0.2

Lot No.

+0.1

–0.2

(L±0.3)

Negative

Lot No.

3 Apply to

φ6.3

5.8,

φ6.3

× 7.7

+0.1

–0.2

Rated capacitance (10µF)

(L±0.3)

Positive

0.5 MAX.

Negative

φD

code

3 to 8 (L 7.7)

8 to 10 (L = 10)

Capacitance tolerance (±20%)

Rated voltage (16V)

Series name

Type

Configuration

code

Rated capacitance (10µF)

Rated voltage (16V)

Series name

(φ8

10,

φ10 ×

10 )

Capacitance

105˚C Marking

(φ8

mark

Trade

10,

φ10

3 Apply to

φ6.3

× 5.8,

φ6.3

× 7.7

Plastic platform

0.3 MAX.

φD

3 to 8 (L 7.7)

8 to 10 (L = 10)

Voltage

)

φD±0.5

C±0.2

Positive

A±0.2

B±0.2

A±0.2

L±0.5

A±0.2

105˚C Marking

Trade mark

Voltage

A2P

100

35V

Plastic platform

0.3 MAX.

0.5 MAX.

Capacitance

Type

φD

(mm)

C±0.2

3 × 5.4

1.5

3.3

0.8

5.4

4 × 5.4

1.8

φD

4.3

5 × 5.4 6.3 × 5.4 6.3 × 5.8 6.3 × 7.7 8 × 5.4

2.1

2.4

3.3

8 × 10

2.9

10 × 10

3.2

φD±0.5

Lot No.

B±0.2

A2P

100

35V

Pressure relief vent

Negative

1. Voltage mark for 6.3V is 6V . In case of marking for

φ3

units, “V” for rated

voltage is omitted.

L±0.5

2. In

No.

of marking for

φ3

units. Lot No is expressed by a digit (month code).

Lot

case

A±0.2

5.3

1.3

6.6

10.3

× 5.4

8.3

5.4

6.6

× 5.4 5 × 5.4 6.3

8.3

6.3 × 5.8 6.3 × 7.7 8 × 5.4

6.6

2.2

5.4

6.6

8.3

3.1

10.3

4.5

4.3

1.0

Pressure relief vent

Negative

1.5

1.8

2.2

2.1

2.2

2.4

2.3

2.4

3.3

8.3

2.3

5.4

3.3

4.3

5.8

5.3

7.7

6.6

5.4

6.6

1. Voltage mark for 6.3V is 6V . In case of marking for

φ3

units, “V” for rated

voltage is omitted.

2. In case of marking for

φ3

units. Lot No is expressed by a digit (month code).

0.5 to 0.8 0.5 to 0.8 0.5 to

3.3

0.5 to 0.8 0.5 to 0.8

5.3

to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to

6.6

0.8

0.5

1.1

4.3

6.6

0.8

5.4

1.0

5.4

1.3

5.4

2.2

5.4

2.2

5.8

2.2

7.7

Dimension table in next page.

0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0

CAT.8100D
