3647B: DescriptionRound, Shielded/Jacketed, Discrete Wire Cable; File Size43KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet View All

3647B Overview

Round, Shielded/Jacketed, Discrete Wire Cable

Preview

Download Datasheet

View All

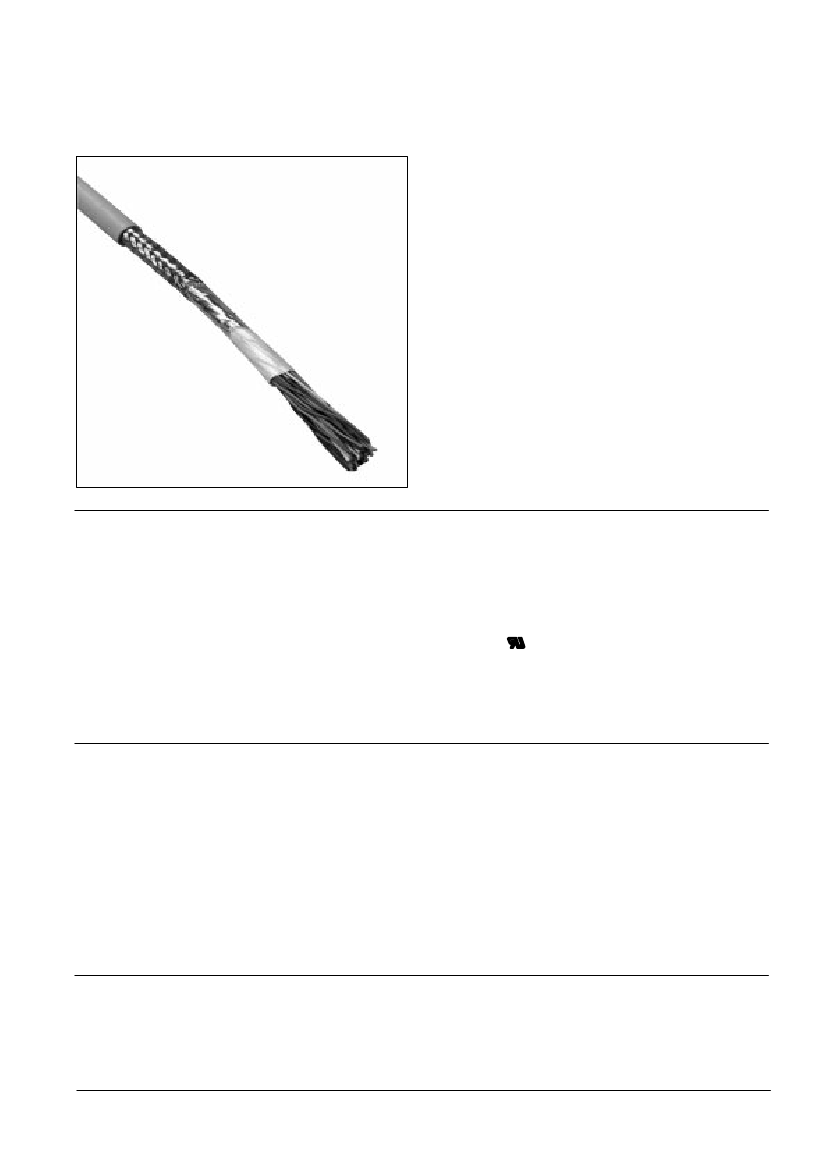

Round, Shielded/Jacketed, Discrete Wire Cable

28 AWG Stranded, Twisted Pair, PO/PVC

3647B Series

IEEE 1284 Compliant – 36 conductor

Twisted pairs reduce crosstalk in balanced

drive applications

Wires are color coded for easy identification

Meets external wiring requirements of

National Electrical Code, Article 725 (CL2)

UL listed for USA and Canadian markets

Dual shielding provides 35 db average

shielding effectiveness

Date Modified: July 29, 1999

125

TS-0582-12

Sheet 1 of 2

Physical

Jacket

Material:

Color:

Primary Material:

Marking

Standard:

Polyvinyl Chloride (PVC)

Beige

Polyolefin (PO)

(UL) CL2 75C 28AWG 3M MR C

AWM II A/B 80C 150V FT1

EU <50V

IEEE 1284 Compliant

Conductors:

28 AWG 7

36 [ 7

0.127 ] Tinned Stranded Copper

Shielding:

.001 [ 0.03 ] Thick Aluminum/Polyester Film Foil and 90% Coverage Tinned

Copper Braid

Electrical

Voltage Rating:

USA: N.E.C. 725, CL2

Canada: 150V

Ω

/10 ft. [ 3m ]

Insulation Resistance:

(Primary Cable) >1x10

Unbalanced

Balanced

Characteristic Impedance

Ω

100

Ω

Capacitance

24.2 pF/ft. [ 79.4 pF/m ] 15.3 pF/ft. [ 50.2 pF/m ]

Inductance

.10

H/ft. [ 0.33

H/m ] .15

H/ft. [ 0.49

H/m ]

Propagation Delay

1.54 ns/ft. [ 5.05 ns/m ] 1.54 ns/ft. [ 5.05 ns/m ]

Velocity of Propagation

66%

EU: <50V

Note: Unbalanced is measured between conductors within a pair with one conductor connected to the shield. Balanced is measured between conductors

within a pair with the shield floating.

Environmental

Temperature Rating:

USA: CL2: 75

C Max

Flammability Rating:

USA: N.E.C. 725, CL2

Canada: 80C

Canada: FT1

UL File No.: E118773, Power limited Circuit Cable;

3M Interconnect Solutions Division

6801 River Place Blvd.

Austin, TX 78726-9000

CL2

For technical, sales or ordering information call

800-225-5373
