574502B03200 datasheet, PDF - EEWORLD Datasheet

574502B03200: DescriptionFor use with TO-220 packages; CategoryThermal management products Heat resisting bracing; File Size80KB，2 Pages; ManufacturerAavid Thermalloy

Download Datasheet Parametric View All

574502B03200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	574502B03200	-	-	View	Buy Now

For use with TO-220 packages

Parameter Name	Attribute value
Maker	Aavid Thermalloy
Reach Compliance Code	unknow
Main material	ALUMINUM
color	BLACK
structure	CLIP
fin direction	TRANSVERSE
Surface layer	ANODIZED
high	19.05 mm
length	21.84 mm
contour	U
Thermal resistance	21.2 Ω
Heat Resistant Support Device Type	HEAT SINK
width	10.03 mm
Base Number Matches	1

Standard Products Found

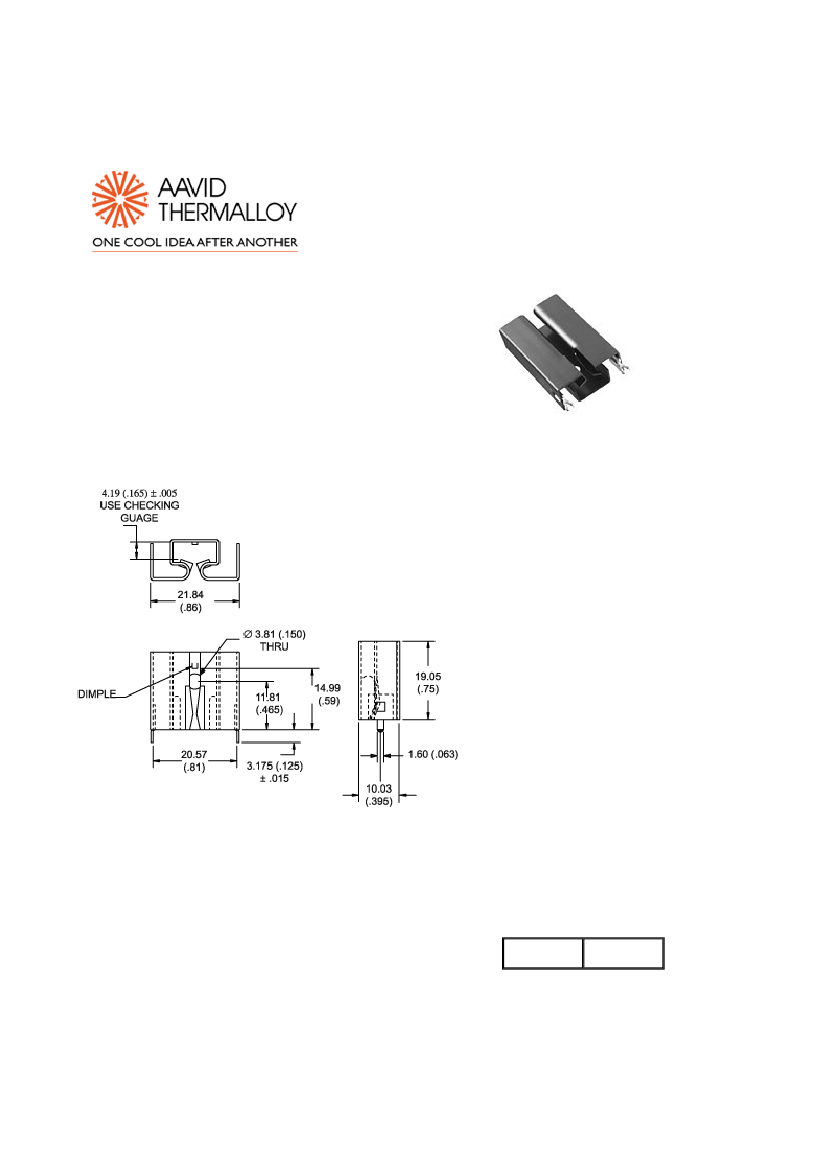

Page 1 of 2

For use with TO-220 packages

574502b03200

VIS#002257

Mechanical Outline Drawing

H Dim 19.05 (0.750)

Thermal

Resistance

21.2

Thermal resistance value is

based on a 75°C rise in natural

convection

http://www.aavidthermalloy.com/bin/stdisp_print.pl?Pnum=574502b03200

2/26/2003
