REV.
DESCRIPTION
DATE
APPROVED
D
Engineering Update w/o Changes
03/01/04
M. C.
H
REF.
0.300 [7.6mm]
0.075 [1.9mm]
F
0.38 [9.5mm]
0.450 [11.4mm]
Ø.035 [Ø0.9mm]
W/ Ø .050 C'SINK
TYP.
0.750 [19.1mm]
0.50 [12.7mm]
0.100 [2.5mm]
TYP.
Ø.062 [Ø1.6mm]
0.030 [0.8mm]
TYP.
0.075 [1.9mm]
PART
NO.
814-030
814-045
814-060
814-080
814-100
A55485/06
M38527/06
-
- 004N
- 005N
- 006N
-
F
.000
.015 (.38)
.030 (.76)
.050 (1.3)
.070 (1.8)
H
.030 (.76)
.045 (1.1)
.060 (1.5)
.080 (2.0)
.100 (2.5)
COLOR
NATURAL
BLACK
NATURAL
NATURAL
BLACK
STANDARD TOLERANCE
3. MATERIAL: NYLON 6/6, 94V-2, BLACK. BIVAR MATERIAL CODE 03-NL-BK.
BASF ULTRAMID NYLON 6/6 A3K NATURAL W/BLACK PIGMENT ADDED.
2. MATERIAL: NYLON 6/6, 94V-2, NATURAL. BIVAR MATERIAL CODE 03-NL.
BASF ULTRAMID NYLON 6/6 A3K NATURAL.
1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101.
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
.X
.XX
.XXX
DESIGNED:
± .1
± .01
± .005
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:

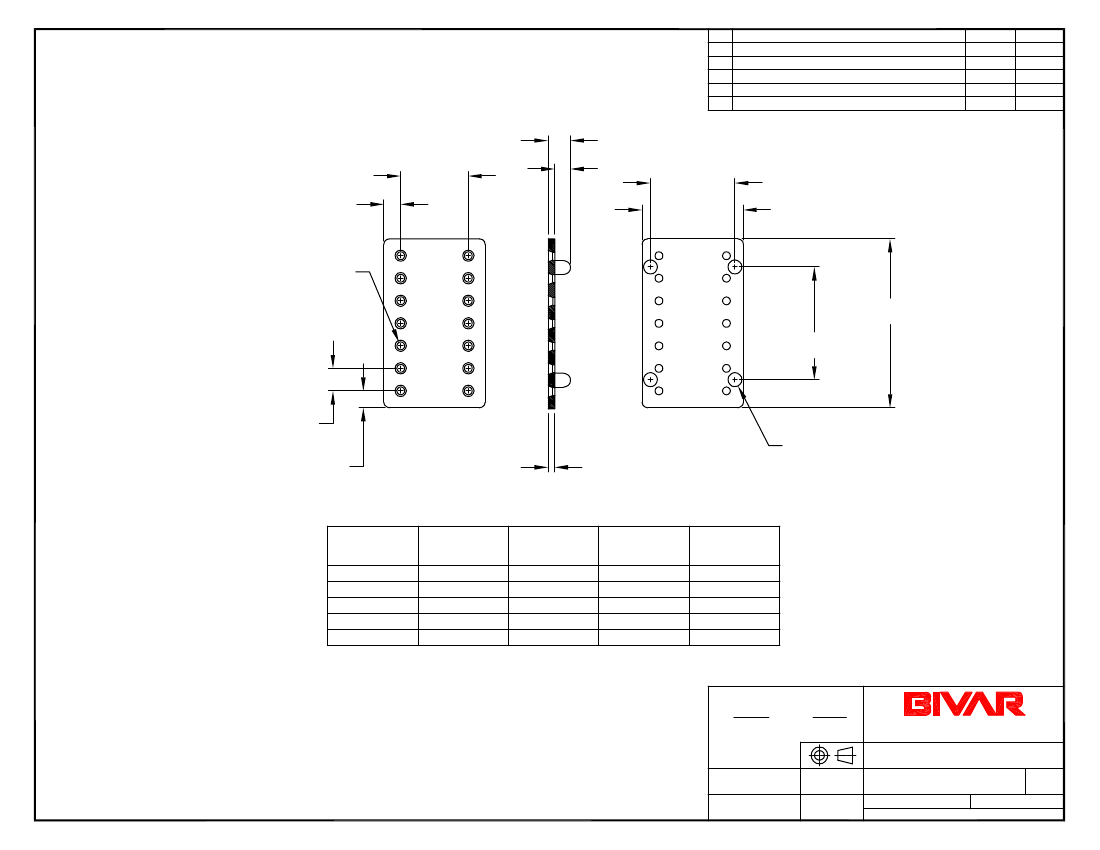

DUAL IN-LINE MOUNT
DATE:
PART NO:
REVISION:
David Green
CHECKED:
11/14/02
DATE:
814-XXX
D
M. Chen
11/14/02
CAGE CODE : 32559
SHEET #
1
OF
1
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
