XTEHVW-D0-0000-00000HCE6 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> XTEHVW-D0-0000-00000HCE6

XTEHVW-D0-0000-00000HCE6: DescriptionHigh Power LEDs - White XLamp XT-E Light Emitting Diode High Voltage White; CategoryLED optoelectronic/LED; File Size2MB，26 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

XTEHVW-D0-0000-00000HCE6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XTEHVW-D0-0000-00000HCE6	-	-	View	Buy Now

XTEHVW-D0-0000-00000HCE6 Overview

High Power LEDs - White XLamp XT-E Light Emitting Diode High Voltage White

XTEHVW-D0-0000-00000HCE6 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cree
Product Category	High Power LEDs - White
Package / Case	SMD-2
Illumination Color	White (Warm White)
Luminous Intensity	-
Luminous Flux/Radiant Flux	100 lm
Color Rendering Index - CRI	80
Viewing Angle	130 deg
Lens Color/Style	Water Clear
If - Forward Current	88 mA
Vf - Forward Voltage	12 V
Power Rating	4.5 W
Mounting Style	SMD/SMT
Length	3.45 mm
Width	3.45 mm
Height	2.36 mm
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	-
Features	-
Type	XLamp XT-E High-Voltage White LEDs
LED Size	3.45 mm x 3.45 mm x 2.36 mm
Lens Shape	Dome
Color Temperature	3500 K
Lens Dimensions	3.06 mm
Vr - Reverse Voltage	5 V

Preview

Download Datasheet

View All

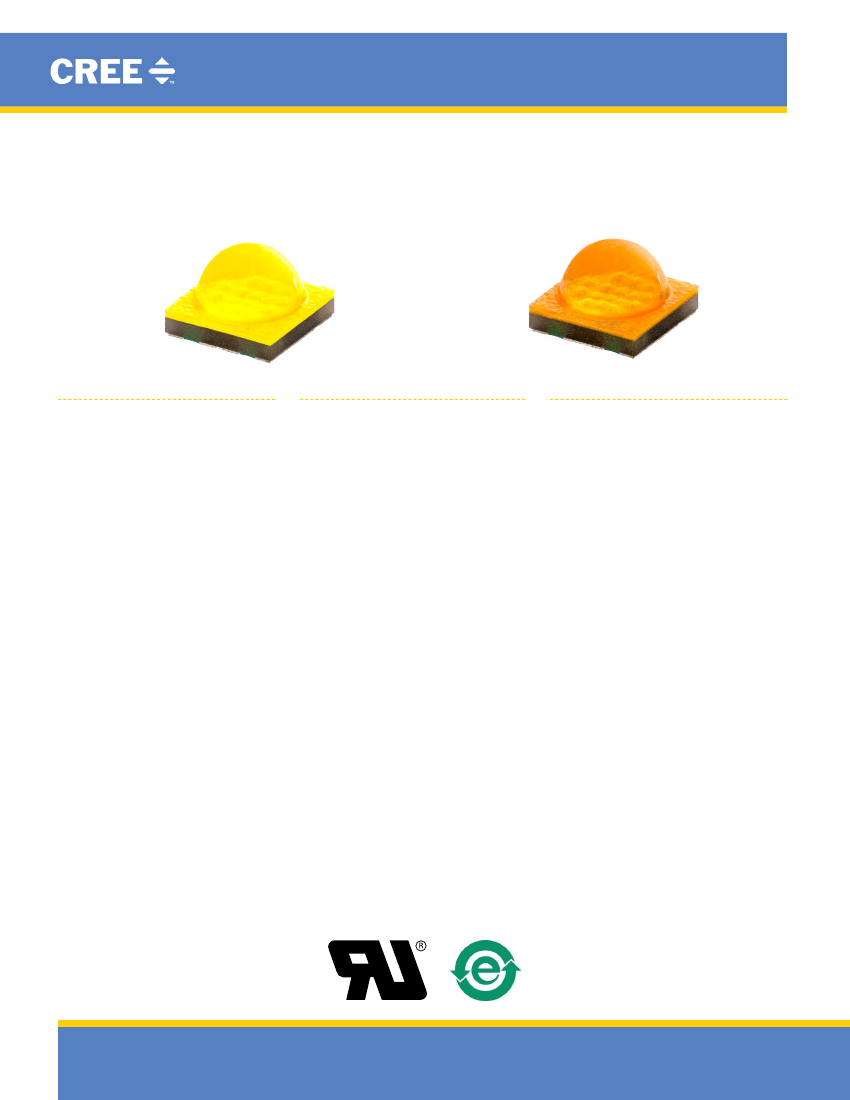

CLD-DS43 REV 14C

Product family data sheet

Cree

XLamp

XT-E High-Voltage White LEDs

ProDuCT DEsCriPTion

The Cree XLamp

XT-E High-Voltage

White

(HVW)

LED

provides

the

and

lighting-class

performance

FEATurEs

•

Binned at 85 °C

48‑V configuration

Cree-standard mechanical footprint

of 3.45 X 3.45 mm with electrically

neutral thermal path

•

Unlimited floor life at ≤30 ºC/85% RH

Reflow solderable

Available in standard CRI and

80‑minimum CRI configurations

RoHS and REACh compliant

recognized component

(E349212)

TAbLE oF ConTEnTs

Characteristics

............................................2

Flux Characteristics ....................................3

Relative Flux vs. Junction Temperature.....9

Electrical Characteristics

......................... 10

Relative Flux vs. Current .......................... 10

Thermal Design

........................................

Performance Groups – Luminous Flux...

Performance Groups – Forward

Voltage

......................................................

Performance Groups – Chromaticity......

Cree’s Standard White Chromaticity

Regions Plotted on the CIE 1931 Curve.. 17

Cree’s Standard Cool White Kits Plotted

on ANSI Standard Chromaticity

Regions

..................................................... 18

Cree’s Standard Warm and Neutral

White Kits Plotted on ANSI Standard

Chromaticity Regions

..............................

Cree’s Standard Chromaticity Kits

.......... 20

Bin and Order Code Formats ................... 20

Reflow Soldering Characteristics ............

Notes ........................................................

reliability of Cree XLamp LEDs in a

small‑form, high‑voltage configuration.

The XT-E HVW LED is an order of

magnitude smaller than other high

voltage LED arrays, allowing easy

implementation of space-constrained

lighting applications with smaller, more

efficient high‑voltage drivers. Among

these applications are small lamps

such as B10, GU10 and E17.

www.CRee.Com/XLAmp

Mechanical Dimensions

..........................

Tape and Reel

........................................... 25

Packaging

.................................................

and XLamp

are

registered trademarks and the Cree logo is a trademark of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
