DS1245BL-100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DS1245BL-100

DS1245BL-100: Description1024K Nonvolatile SRAM; Categorystorage storage; File Size181KB，9 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1245BL-100 Overview

1024K Nonvolatile SRAM

DS1245BL-100 Parametric

Parameter Name	Attribute value
Maker	DALLAS
Reach Compliance Code	unknow
Maximum access time	100 ns
JESD-30 code	R-XDMA-U34
memory density	1048576 bi
Memory IC Type	NON-VOLATILE SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	34
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
Encapsulate equivalent code	MODULE,34LEAD,1.0
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.005 A
Maximum slew rate	0.085 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J INVERTED
Terminal location	DUAL

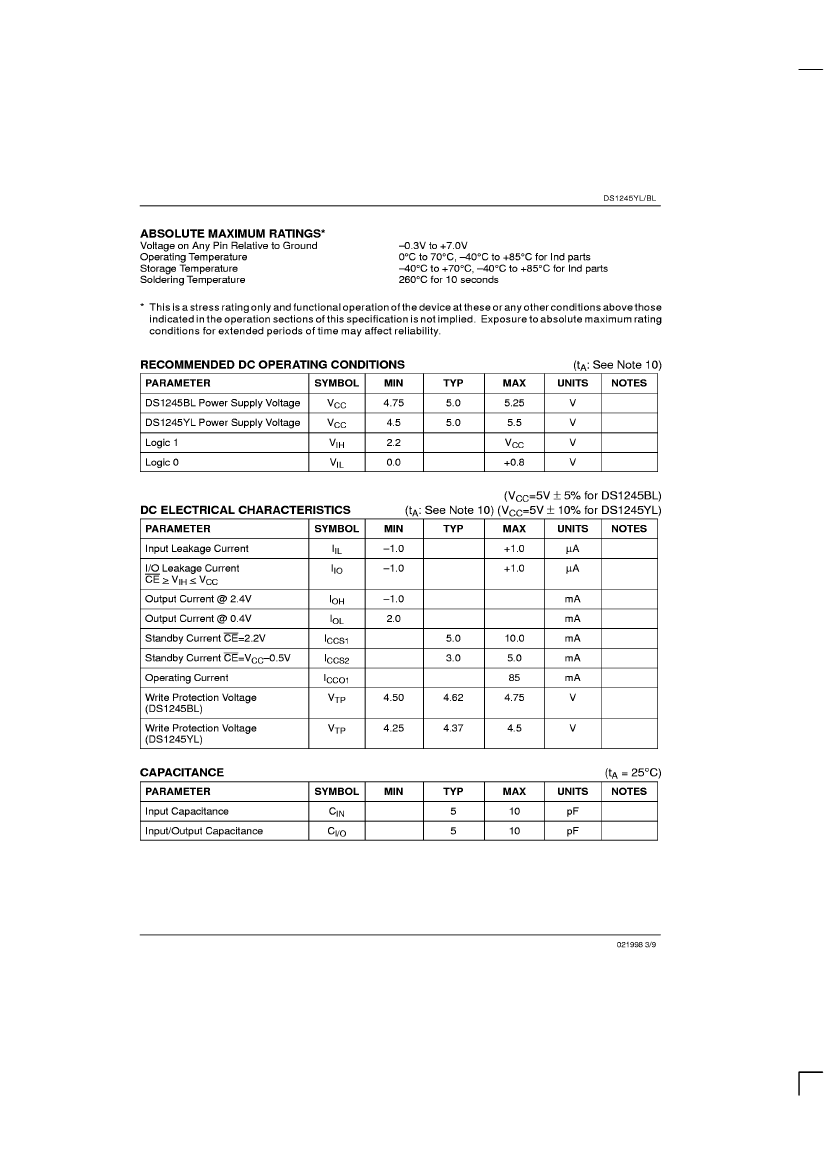

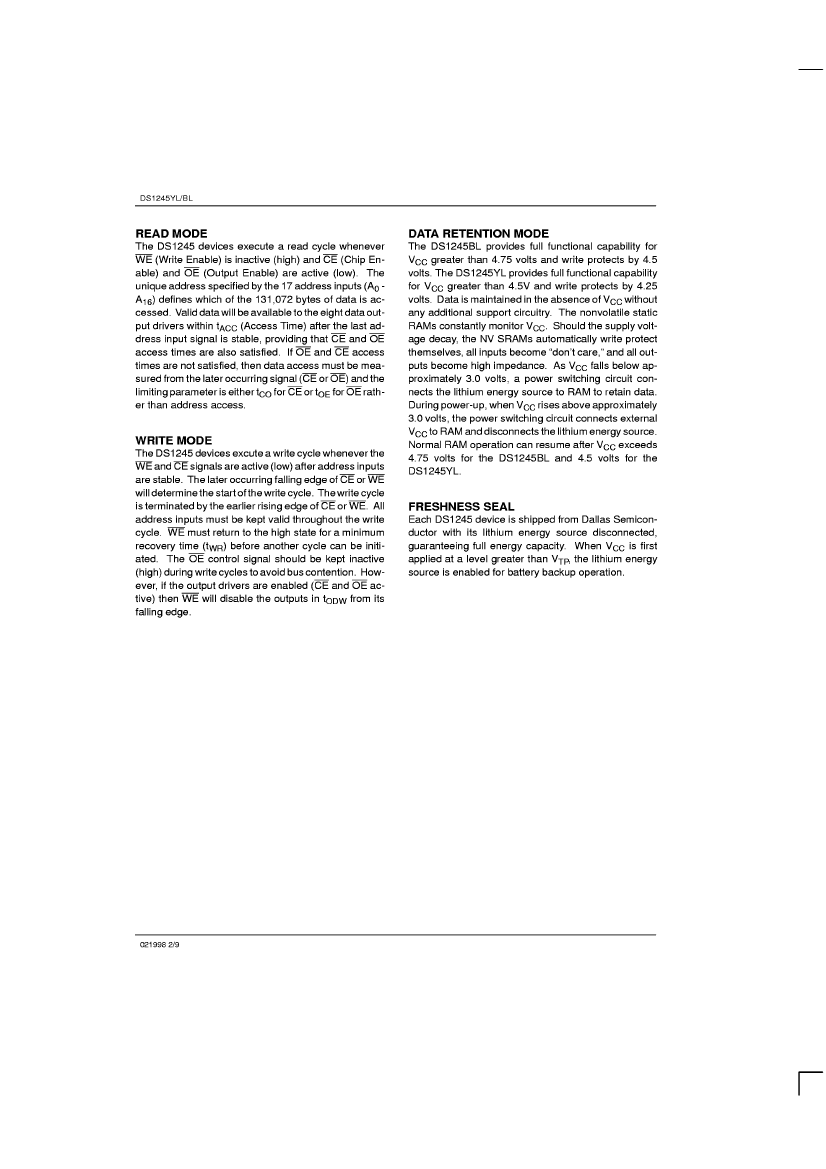

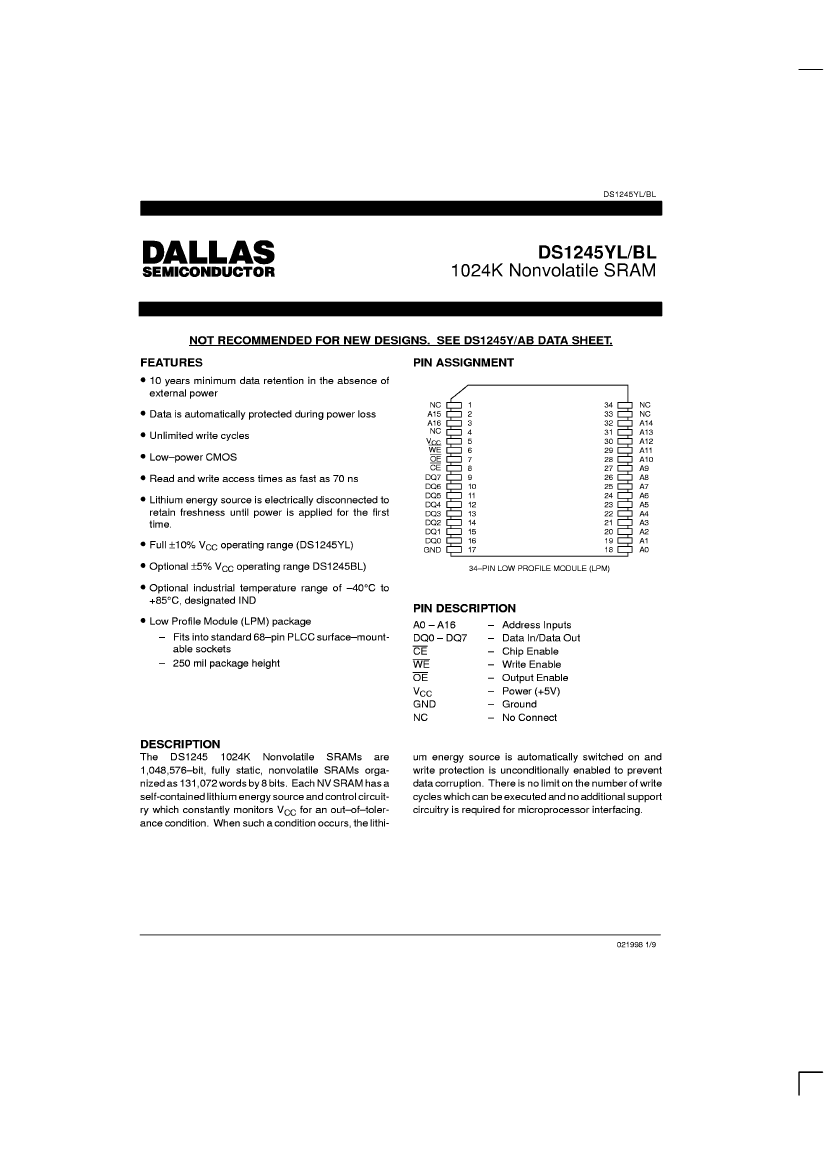

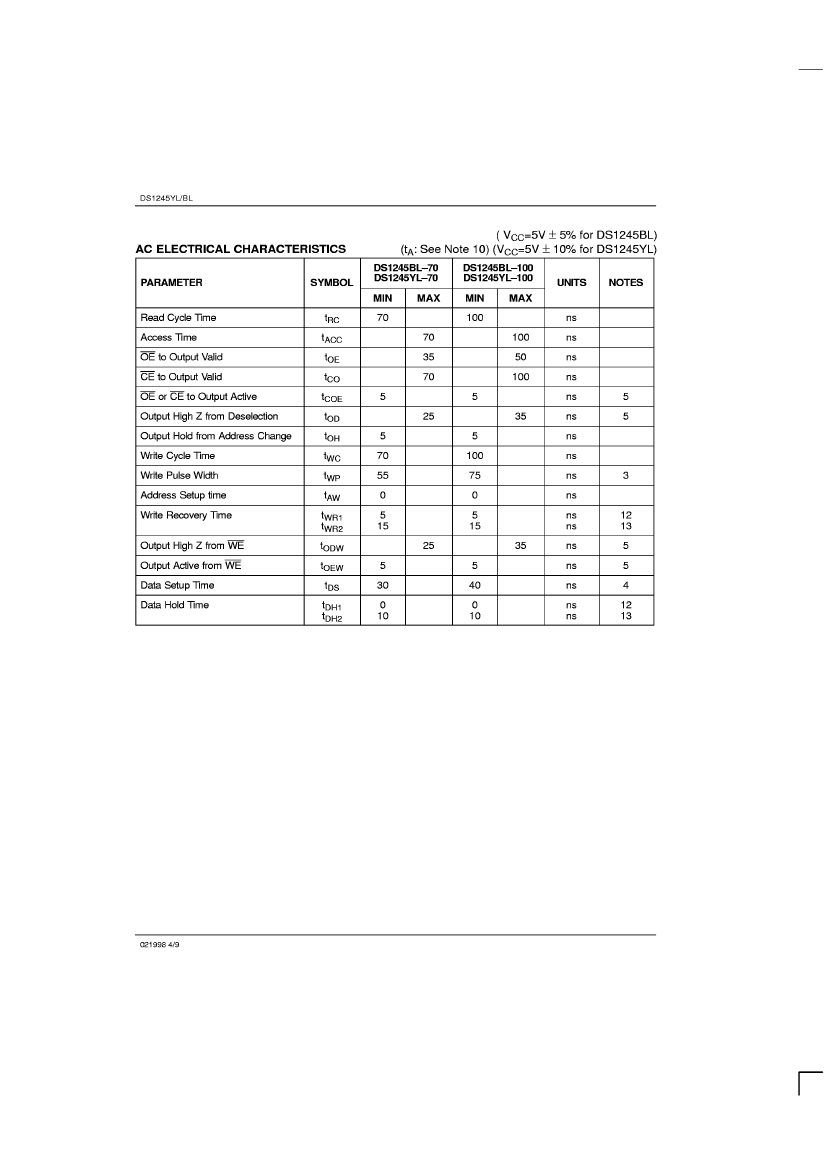

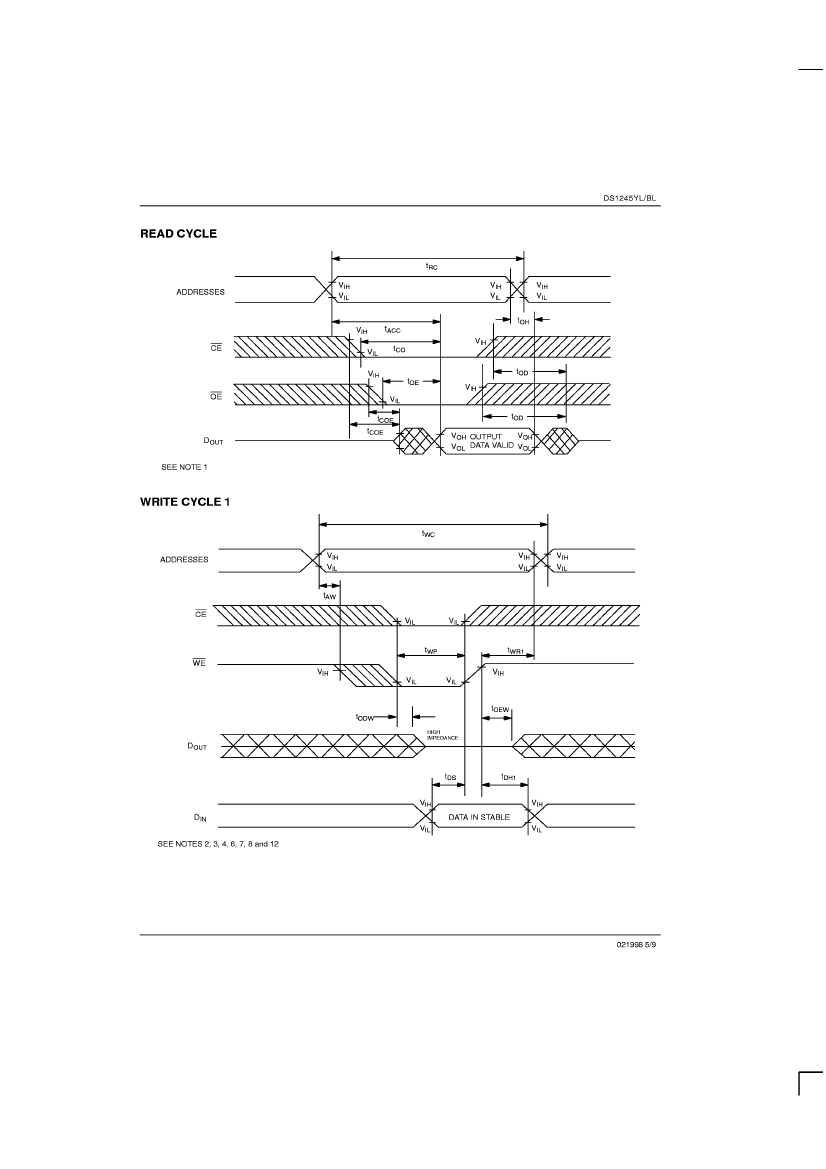

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DS1245BL-100 Related Products

	DS1245BL-100	DS1245BL-70	DS1245YL-70	DS1245YL	DS1245YL-100-IND	DS1245YL-70-IND	DS1245YL-100	DS1245BL-70-IND	DS1245BL-100-IND
Description	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM	1024K Nonvolatile SRAM
Maker	DALLAS	DALLAS	DALLAS	-	DALLAS	DALLAS	DALLAS	DALLAS	DALLAS
Reach Compliance Code	unknow	unknown	unknow	-	unknow	unknow	unknow	unknown	unknown
Maximum access time	100 ns	70 ns	70 ns	-	100 ns	70 ns	100 ns	70 ns	100 ns
JESD-30 code	R-XDMA-U34	R-XDMA-U34	R-XDMA-U34	-	R-XDMA-U34	R-XDMA-U34	R-XDMA-U34	R-XDMA-U34	R-XDMA-U34
memory density	1048576 bi	1048576 bit	1048576 bi	-	1048576 bi	1048576 bi	1048576 bi	1048576 bit	1048576 bit
Memory IC Type	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	-	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE
memory width	8	8	8	-	8	8	8	8	8
Number of functions	1	1	1	-	1	1	1	1	1
Number of ports	1	1	1	-	1	1	1	1	1
Number of terminals	34	34	34	-	34	34	34	34	34
word count	131072 words	131072 words	131072 words	-	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	-	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	-	85 °C	85 °C	70 °C	85 °C	85 °C
organize	128KX8	128KX8	128KX8	-	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	-	YES	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Encapsulate equivalent code	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	-	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.005 A	0.005 A	0.005 A	-	0.005 A	0.005 A	0.005 A	0.005 A	0.005 A
Maximum slew rate	0.085 mA	0.085 mA	0.085 mA	-	0.085 mA	0.085 mA	0.085 mA	0.085 mA	0.085 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	-	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	J INVERTED	J INVERTED	J INVERTED	-	J INVERTED	J INVERTED	J INVERTED	J INVERTED	J INVERTED
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
