T520V107M006ATE012 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T520V107M006ATE012

T520V107M006ATE012: DescriptionTantalum Capacitors - Polymer SMD 6.3volts 100uF 20% ESR=12; CategoryPassive components capacitor; File Size61KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T520V107M006ATE012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520V107M006ATE012	-	-	View	Buy Now

T520V107M006ATE012 Overview

Tantalum Capacitors - Polymer SMD 6.3volts 100uF 20% ESR=12

T520V107M006ATE012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
capacitance	100 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	12 mΩ
high	2 mm
JESD-609 code	e3
leakage current	0.063 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED/PUNCHED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	3900 mA
size code	2917
surface mount	YES
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	4.3 mm
Base Number Matches	1

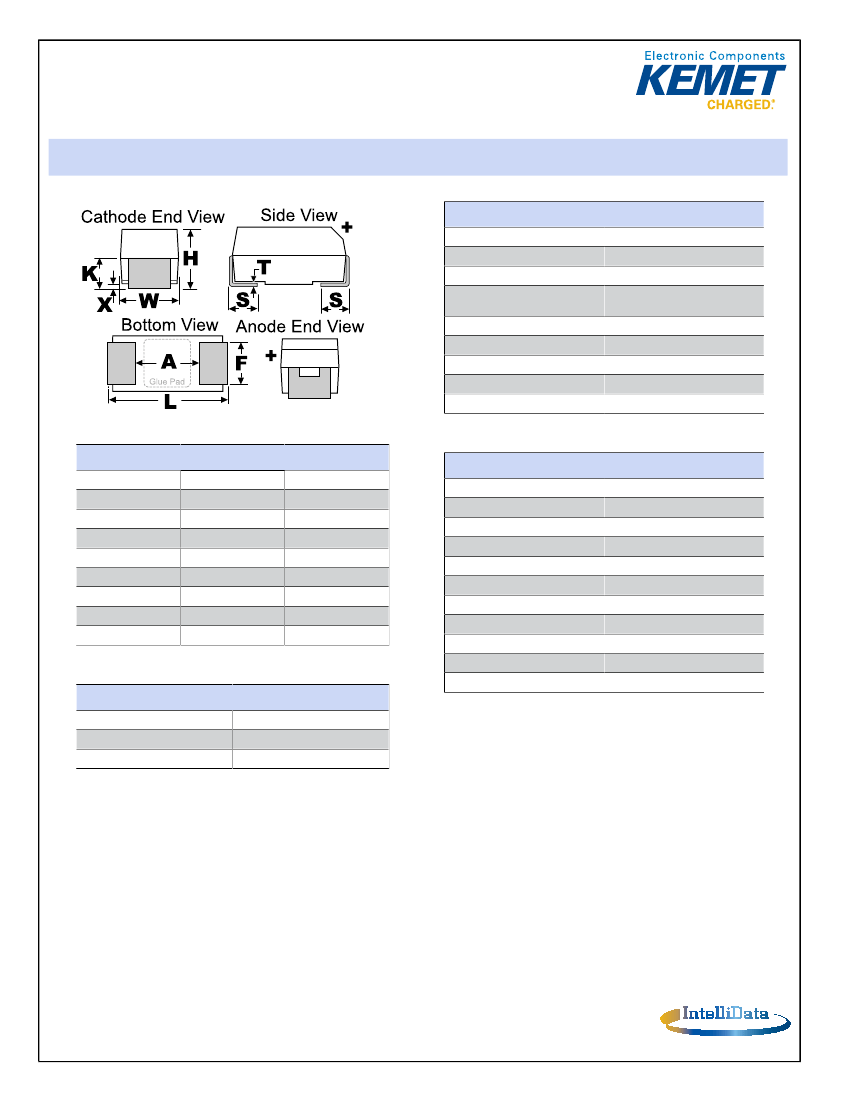

Preview

Download Datasheet

View All

KEMET Part Number: T520V107M006ATE012

Capacitor, Tantalum, SMD, Polymer, Molded, Low Profile/ESR, Non-Combustible, 100 uF, 7343, +/-20% Tol, -55/+105C, 6.3 VDC

(105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

Profile/ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

7343

274.3 mg

Yes

Symbol

Dimensions (mm)

Dimension

7.3

4.3

1.8

2.4

1.3

0.05

0.13

3.6

Tolerance

+/-0.3

+/-0.1

+/-0.3

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

100 uF

+/-20%

6.3 VDC (105C)

-55/+105C

3900 mAmps (100kHz 45C)

2730 mAmps (85C)

1852.5 mAmps (105C)

12 mOhms (100kHz 25C)

N/A

63 uA

10%

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

1000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/12/2017 - 89519ff4-d682-4ac8-a59f-d6ff40600417
