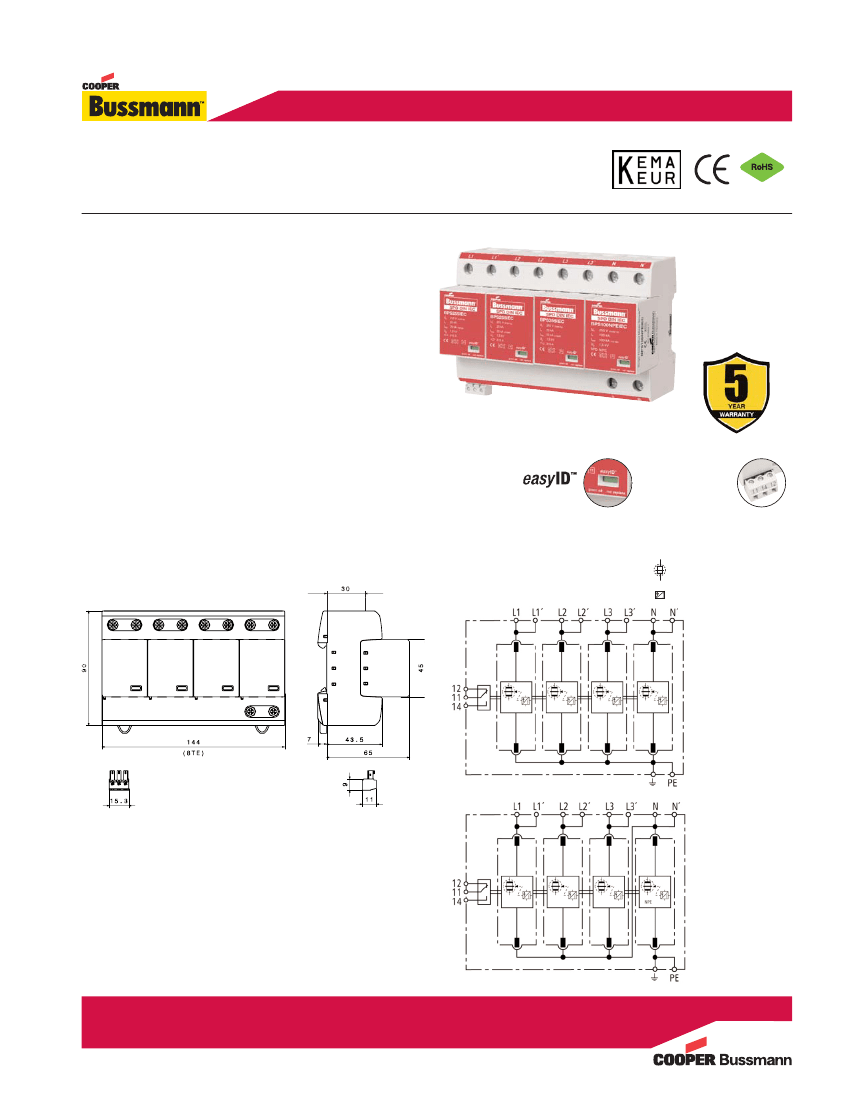

This Product Is Obsolete
No recommended replacement is available
Surge Protection Made Simple
™
for IEC Applications
IEC Class I Combined Lightning, Current and Surge Arresters for
230/400 Volt, 4-Pole TNS & TT Systems
Description
The Cooper Bussmann
®
IEC Class I 230 volt, four-pole, modular combined
lightning, current and surge arresters feature local,
easy
ID™ visual indication
and optional remote contact signaling. The unique module locking system
fixes the protection module to the base part. Modules can be easily replaced
without tools by simply depressing the release buttons. Integrated mechanical
coding between the base and protection module ensures against installing an
incorrect replacement module.
230 Volt models are offered with MCOV ratings of 255 volts.
BSPS4255TNS(R)
BSPS4255TT(R)
TNS System Arresters
The features of these four-pole devices are for use in TNS 230/400 volt
systems (“4-0” circuit) against surges.
TT System Arrester
Provides a current arresting means between neutral conductor and protective
conductor in TT 230/400 volt systems (“3+1” circuit) against surges.
Remote Signal
Contact Available
Remote Signaling Contact
The three-pole terminal remote signaling contact versions have a floating
changeover contact for use as a break or make contact, according to circuit
concept.
Visual Status Indication
Creepage Discharge Spark Gap
Dimensions - mm
Circuit Diagrams
Spark Gap Trigger
BSPS4255TNS(R)
Shown with
optional remote
contact signaling
Shown with optional remote contact signaling
BSPS4255TT(R)
Shown with
optional remote
contact signaling
www.cooperbussmann.com/Surge
1210 BU-SB101431
Page 1 of 2
Data Sheet 1165
This Product Is Obsolete
No recommended replacement is available
Ordering Information
System Voltage/Poles
Max. Continuous operating AC voltage (MCOV) [U
C
]
Catalog Numbers:
Without Remote Signaling
With Remote Signaling
Replacement Modules (Spark Gap technology):
230/400V/4
255V
BSPS4255TNS
BSPS4255TNSR
BPS255IEC
--
230/400V/4
255V
BSPS4255TT
BSPS4255TTR
BPS255IEC
BPS100NPEIEC*
Specifications
SPD according to EN 61643-11/... IEC 61643-1
Energy-coordinated protection effect with regard to the terminal equipment
Energy-coordinated protection effect with regard to the terminal equipment (< 5m)
_
Nominal AC voltage [U
N
]
Lightning impulse current (10/350 µs) [L1+L2+L3+N-PE] [I
total
]
Specific energy [L1+L2+L3+N-PE] [W/R]
Lightning impulse current (10/350 µs) [L, N-PE] [I
imp
]
TNS system specific energy [L,N-PE] [W/R]
TT system specific energy [L-N]/[N-PE] [W/R]
Nominal discharge current (8/20 µs) [I
n
]
Voltage protection level [L-PE]/[N-PE] [U
P
]
TNS system follow current extinguishing capability AC [I
fi
]
TT system follow current extinguishing capability AC [I
fi
]
Follow current limitation/Selectivity
Response time [t
A
]
Max. Backup fuse (L) up to IK < 50kA rms
_
Max. Backup fuse (L) for IK > 50kA rms
Max. Backup fuse (L-L´)
Temporary overvoltage (TOV) [L-N] [U
T
]
Temporary overvoltage (TOV) [N-PE] [U
T
]
TOV characteristics
Operating temperature range [parallel]/[continuity] [T
U
]
Operating state/fault indication
Number of ports
Cross-sectional area (L1, L1´, L2, L2´, L3, L3´, N, N´, PE,
Cross-sectional area (L1, L2, L3, N, PE) [max.]
Cross-sectional area (L1´, L2´, L3´, N´,
Mounting
Enclosure material
Location category
Degree of protection
Capacity
Agency Information
Product Warranty
) [max.]
) [min.]
Type 1/Class I
Type 1 + Type 2
Type 1 + Type 2 + Type 3
230/400V
100kA
2.50MJ/ohms
25kA
156.25kJ/ohms
156.25kJ/ohms/2.50kJ/ohms
25/100kA
< 1.5kV/< 1.5kV
_
_
50kA rms
50kA rms/100A rms
No tripping of a 20A gL/gG fuse up to 50kA rms (prosp.)
< 100 ns
_
315A gL/gG
200A gL/gG
125A gL/gG
440V/5 sec.
1200V/200mS
Withstand
-40°C to +80°C/-40°C to +60°C
green (good)/red (replace)
1
10mm
2
solid/flexible
50mm
2
/1AWG stranded-35mm
2
/2AWG flexible
35mm
2
/2AWG stranded-25mm
2
/4AWG flexible
35mm DIN Rail per EN 60715
Thermoplastic, UL 94V0
Indoor
IP20
8 mods., DIN 43880
KEMA
Five Years**
Remote Contact Signaling
Remote Contact Signaling Type
AC Switching Capacity (Volts/Amps)
DC Switching Capacity (Volts/Amps)
Conductor Ratings and Cross-Sectional Area for Remote Contact Signal Terminals
Ordering Information
* N-PE Surge arrester for location between neutral conductor and protective conductor in TT systems.
** See Cooper Bussmann SPD Limited Warranty Statement (3A1502) for details at www.cooperbussmann.com/surge.
Changeover Contact
250V/0.1A
250V/0.1A; 125V/0.2A; 75V/0.5A
60/75°C Max. 1.5mm
2
/14AWG Solid/Flexible
Order from Catalog Numbers Above
Recommended Cooper Bussmann NH DIN Size Back Up Fuses
Size NH Fuse Part Number
Size NH Fuse Part Number
00
125NHG00B (max L-L)
02
125NHG02B (max L-L)
0
125NHG0B (max L-L)
02
200NHG02B (max L Ik >50kA)
01
125NHG01B (max L-L)
2
315NHG2B (max L <50kA)
_
1
200NHG1B (max L Ik >50kA)
03
315NHG03B (max L <50kA)
_
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
© 2010 Cooper Bussmann
www.cooperbussmann.com
1210 BU-SB101431
Page 2 of 2
Data Sheet 1165
