CMC441-YTP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> CMC441-YTP

CMC441-YTP: DescriptionLED Lenses Yellow Standard CMC441-YTP; CategoryLED optoelectronic/LED; File Size79KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com

Download Datasheet Parametric Compare View All

CMC441-YTP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMC441-YTP	-	-	View	Buy Now

CMC441-YTP Overview

LED Lenses Yellow Standard CMC441-YTP

CMC441-YTP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Visual Communications Company, LLC
Product Category	LED Lenses
RoHS	Details
Product	LED Lenses
LED Size	5 mm
Color	Yellow
Diameter	5.84 mm
Material	Polycarbonate (PC)
Height	8.64 mm
Packaging	Bulk
Style	Transparent
NumOfPackaging	1
Panel Thickness Dimension	0.79 mm to 6.35 mm
Factory Pack Quantity	1000
Water / Moisture Rating	Non Water Resistant

Preview

Download Datasheet

View All

ECN#

REV.

001

REVISIONS

DESCRIPTION

REVISED PER ECR111009AZ01

DATE

4-23-10

INITIALS

SMU

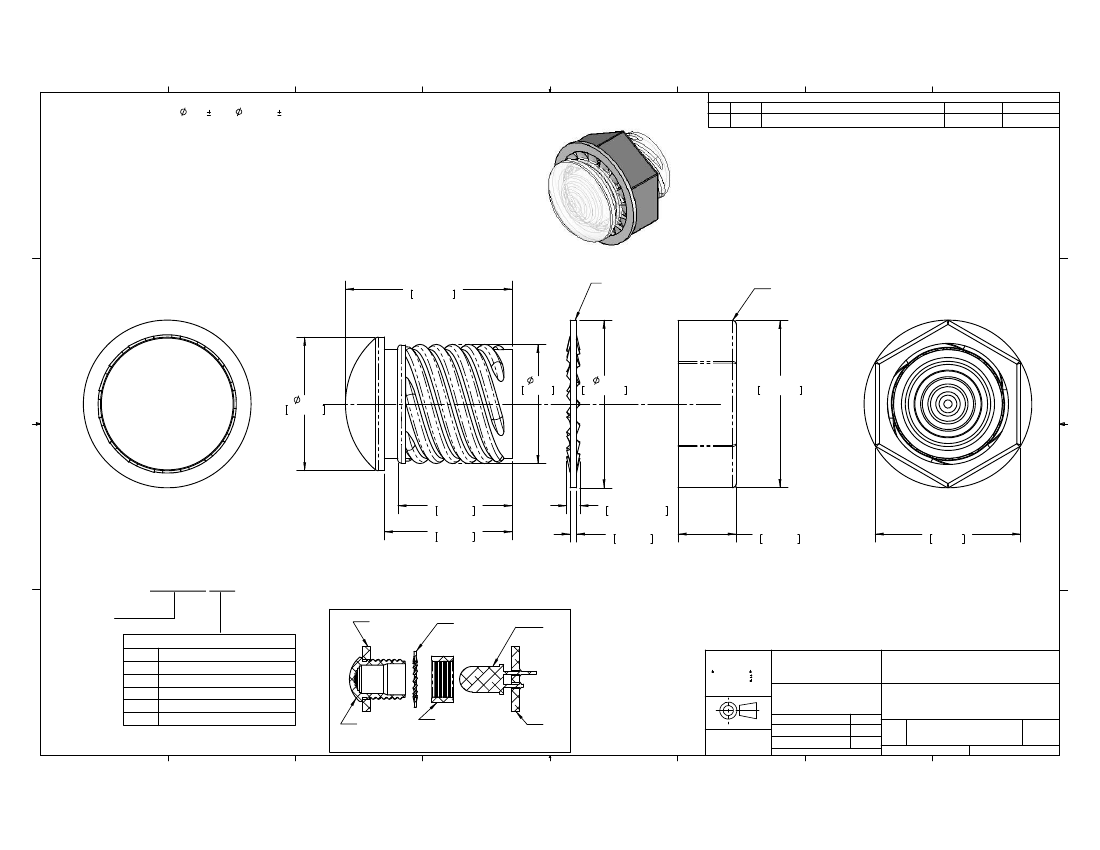

NOTES:

MOUNTING: Mounts in a .312 .002 [ 7.92mm .05] panel hole on .500 [12.7mm] centers.

Panel thickness .031 [.8mm] to .125 [3.18mm]. Panel hole should be deburred, but not

chamfered.

ASSEMBLY: Insert lens through panel hole, slide lock washer onto lens barrel and twist on

retaining ring. PCB mounted LEDs slide into lens when the panel cover is closed or the PCB

card is inserted into the case.

MATERIAL: Lens-Polycarbonate, UL 94-V2

Lock Washer- FH Steel, Nickel plate

Retaining ring - Thermoplastic, U.L. 94 V0 Rated

U.S. & Foreign Pat. Issued & Pend.

.430

10.92mm

LOCK

WASHER

RETAINING

RING

.307

7.8mm

.344

8.74mm

.432

10.97mm

.430

10.93mm

.295

7.49mm

.330

8.38mm

.034±.003

0.86mm±0.08

.016

0.41mm

.150

3.81mm

.370

9.4mm

ORDERING CODE :

CMC 441 XXX

DISPLAY

PANEL

LOCK

WASHER

MODEL

LED

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES:

RTP

ATP

GTP

BTP

YTP

CTP

LENS COLOR

RED TRANSPARENT

AMBER TRANSPARENT

GREEN TRANSPARENT

BLUE TRANSPARENT

YELLOW TRANSPARENT

CLEAR TRANSPARENT

MATERIAL

ANGLES

FINISH

DECIMALS

.020

.010

.XX

.XXX .005

SEE NOTES

FINISH

VISUAL COMMUNICATIONS COMPANY, INC.

190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA

Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

TITLE:

SEE NOTES

5MM ROUND STANDARD

THREADED FRESNEL LENS

REV

LENS

RETAINING

RING

ASSEMBLY

PCB

APPROVAL

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC. ANY

REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

VISUAL COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

DATE

SMU 4-23-10

DZ 4-23-10

DRAWN:

CHECKED:

SIZE

DWG. NO.

CMC 441 XXX

SCALE: 4:1

001

DO NOT SCALE DRAWING

SHEET 1 OF 1

CMC441-YTP Related Products

	CMC441-YTP	CMC_441_ATP	CMC441-ATP	CMC441-BTP	CMC441-RTP	CMC441-CTP	CMC441-GTP	CMC_441_GTP
Description	LED Lenses Yellow Standard CMC441-YTP	LED Lenses Amber Standard CMC441-ATP	LED Lenses Amber Standard CMC441-ATP	LED Lenses Blue Standard CMC441-BTP	LED Lenses Red Standard CMC441-RTP	LED Lenses Clear Standard CMC441-CTP	LED Lenses Green Standard CMC441-GTP	LED Lenses Green Standard CMC441-GTP
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC	Visual Communications Company, LLC
Product Category	LED Lenses	LED Lenses	LED Lenses	LED Lenses	LED Lenses	LED Lenses	LED Lenses	LED Lenses
RoHS	Details	Details	Details	Details	Details	Details	Details	Details
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Factory Pack Quantity	1000	1000	1000	1000	1000	1000	1000	1000
Product	LED Lenses	LED Lenses	LED Lenses	LED Lenses	-	LED Lenses	LED Lenses	LED Lenses
LED Size	5 mm	5 mm	5 mm	5 mm	-	5 mm	5 mm	5 mm
Color	Yellow	Amber	Amber	Blue	-	Clear	Green	Green
Diameter	5.84 mm	5.84 mm	5.84 mm	5.84 mm	-	5.84 mm	5.84 mm	5.84 mm
Material	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)	-	Polycarbonate (PC)	Polycarbonate (PC)	Polycarbonate (PC)
Height	8.64 mm	8.64 mm	8.64 mm	8.64 mm	-	8.64 mm	8.64 mm	8.64 mm
Style	Transparent	Transparent	Transparent	Transparent	-	-	Transparent	Transparent
NumOfPackaging	1	-	1	1	1	1	-	-
Panel Thickness Dimension	0.79 mm to 6.35 mm	0.76 mm to 1.14 mm	0.76 mm to 1.14 mm	0.79 mm to 6.35 mm	-	0.79 mm to 6.35 mm	0.79 mm to 6.35 mm	0.79 mm to 6.35 mm
Water / Moisture Rating	Non Water Resistant	Non Water Resistant	Non Water Resistant	Non Water Resistant	-	Non Water Resistant	Non Water Resistant	Non Water Resistant
