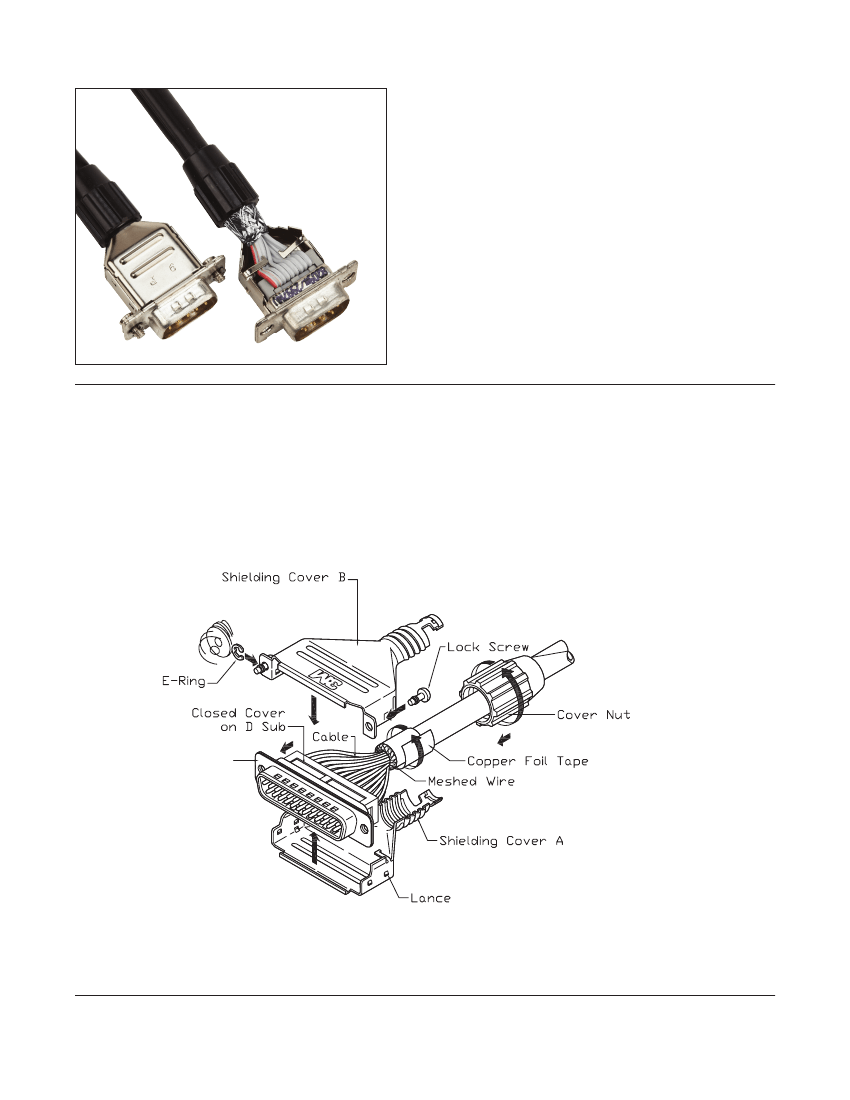

3M
™
D Sub EMI Junction Shell
Metal
• Provides EMI/ESD protection similar to aluminium
die cast
• Easy assembly reduces time and labor to ensure low
applied cost
• Optional thumbscrew kit
• Provides option in grounding for discrete wire
applications
• Light weight, compact design
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
Date Modified: May 13, 2015
TS-0036-G
Sheet 1 of 2
Physical
Shell and Hardware:
Material:
Plating:
Cover Nut:
Material:
Flammability:
Color:
Steel
Nickel
Unfilled Thermoplastic (ABS)
UL 94V-0
Black
3
Electronics Materials Solutions Division
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Sub EMI Junction Shell
Metal
Connector
Size
09
15
25
37

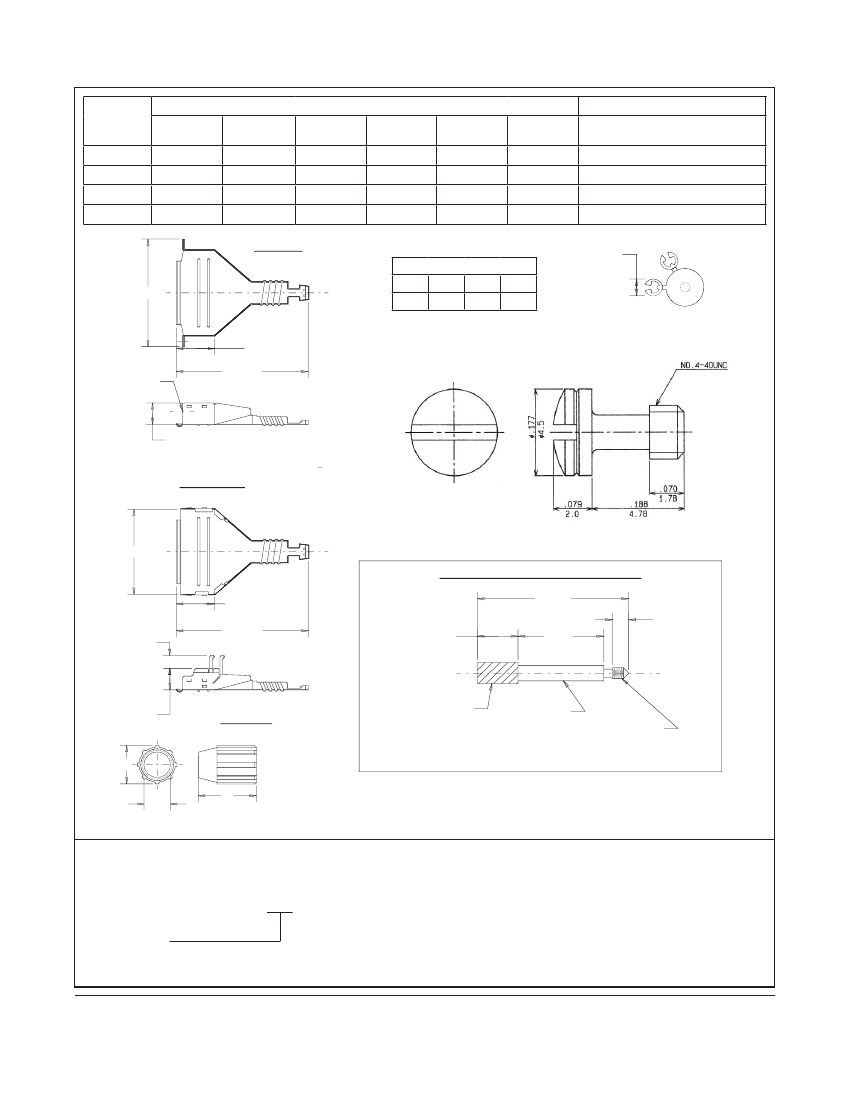

Dimensions
A
1.18 [ 30.0 ]
1.50 [ 38.0 ]
2.05 [ 52.0 ]
2.68 [ 68.0 ]
B
0.76 [ 19.4 ]
1.09 [ 27.6 ]
1.63 [ 41.4 ]
2.28 [ 57.8 ]
C Ref
1.65 [ 41.9 ]
1.85 [ 46.9 ]
2.24 [ 57.0 ]
2.78 [ 70.6 ]
D
0.54 [ 13.6 ]
0.54 [ 13.6 ]
0.65 [ 16.4 ]
0.74 [ 18.8 ]
E [± .03]
0.29 [ 7.3 ]
0.34 [ 8.7 ]
0.43 [ 10.8 ]
0.48 [ 12.2 ]
Inch
[mm]
Tolerance Unless Noted
A
F
0.75 [ 18.9 ]
0.75 [ 18.9 ]
0.98 [ 24.9 ]
1.10 [ 28.0 ]
.197 Dia
[ 5.00 ]
Recommended
Cable size OD ±.01
0.28 [ 7.0 ]
0.33 [ 8.5 ]
0.42 [ 10.6 ]
0.47 [ 12.0 ]
Top Shell
.0
Inch
.653
[ 16.59 ]
2 x
ø
.120
[ 3.0 ]
C Ref
.00
±.01
.000
±.005
Retainer Ring (2)
±.1
[ ] Dimensions for Reference Only
.393
[ 9.98 ]
Bottom Shell
B
Thumb Screw Kit (Order Separately)
.649
[ 16.48 ]
.236
[ 6.00 ]
C Ref
1.42
[ 36.1 ]
.38
[ 9.7 ]
.80
[ 20.3 ]
.15
[ 3.8 ]
.393
[ 9.98 ]
Cover Nut
.20 Dia
[ 5.1 ]
Kit Contains:
Thumbscrews (2)
Retainer Rings (2)
.15 Dia
[ 3.8 ]
4-40 NC
D
F
E
Note: The 3M
™
3341-7 Thumb Screw contains lead in the base material, therefore RIA E5 & C3 apply when using this hardware.
Ordering Information
Connector Size
09 = 9 Position
15 = 15 Position
25 = 25 Position
37 = 37 Position
Junction Shell
(RIA E1 & C1 Apply)
3357 - 92XX
Thumb Screw Kit
(RIA E5 & C3 Apply)
3341-7
Retainer Ring
(RIA E1 & C1 Apply)
3808-ER
TS-0036-G
Sheet 2 of 2
3
Electronics Materials Solutions Division
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
