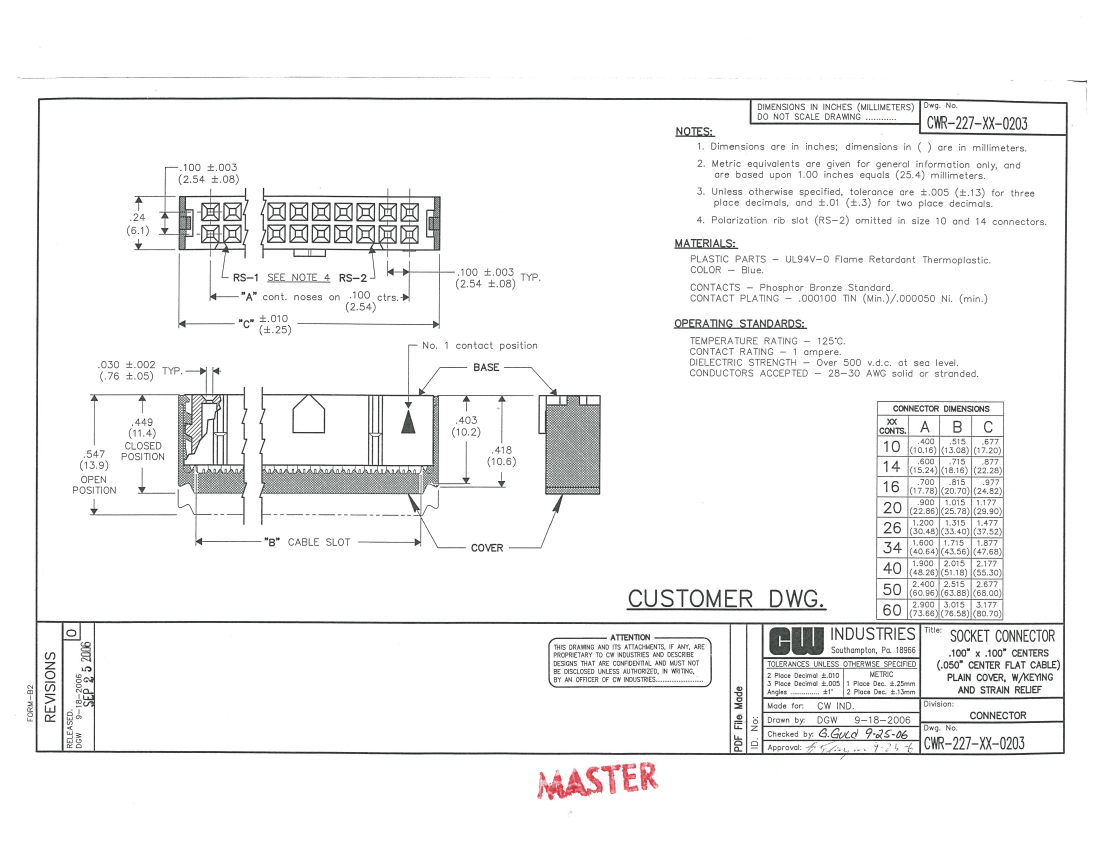

Headers & Wire Housings CONN SOCKET 20PIN TIN W/KEY
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | CW Industries |
| Reach Compliance Code | compliant |
| body width | 0.24 inch |
| body length | 1.177 inch |
| Connector type | BOARD CONNECTOR |
| Contactor design | PREASSEM CONN |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 500VDC V |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLUE |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | CWR |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | LOCKING |
| Installation type | CABLE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Plating thickness | 100u inch |
| polarization key | POLARIZED RIB(S) |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | IDC |
| Total number of contacts | 20 |
| Maximum wire diameter | 28 AWG |
| Minimum wire diameter | 30 AWG |
| Base Number Matches | 1 |
| CWR-227-20-0203 | CWR-227-16-0203 | CWR-227-40-0203 | CWR-227-14-0203 | CWR-227-60-0203 | C3CPS-2636G | C3CPS-2618G | C3CPS-2606G | |
|---|---|---|---|---|---|---|---|---|
| Description | Headers & Wire Housings CONN SOCKET 20PIN TIN W/KEY | Headers & Wire Housings CONN SOCKET 16PIN TIN W/KEY | Headers & Wire Housings IDC Commercial Socket | Headers & Wire Housings CONN SOCKET 14PIN TIN W/KEY | Headers & Wire Housings IDC Commercial Socket | IDC CABLE - CKC26S/AE26G/CPC26S | IDC CABLE - CKC26S/AE26G/CPC26S | IDC CABLE - CKC26S/AE26G/CPC26S |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | Jack to PCB | Jack to PCB | Jack to PCB |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | - | - | - |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | - | - | - |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | - | - | - |
| body width | 0.24 inch | 0.24 inch | 0.24 inch | 0.24 inch | 0.24 inch | - | - | - |
| body length | 1.177 inch | 0.977 inch | 2.177 inch | 0.877 inch | 3.177 inch | - | - | - |
| Contactor design | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | PREASSEM CONN | - | - | - |
| Contact to complete cooperation | SN ON NI | SN ON NI | SN ON NI | SN ON NI | SN ON NI | - | - | - |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | - | - | - |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | - | - | - |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - | - |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - | - |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | - | - |
| Dielectric withstand voltage | 500VDC V | 500VDC V | 500VDC V | 500VDC V | 500VDC V | - | - | - |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - | - | - |
| Insulator color | BLUE | BLUE | BLUE | BLUE | BLUE | - | - | - |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | - | - | - |
| Manufacturer's serial number | CWR | CWR | CWR | CWR | CWR | - | - | - |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | - | - |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - | - | - |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | - | - | - |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | - | - | - |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | - | - | - |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | - | - | - |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | - | - | - |
| Plating thickness | 100u inch | 100u inch | 100u inch | 100u inch | 100u inch | - | - | - |
| polarization key | POLARIZED RIB(S) | POLARIZED RIB(S) | POLARIZED RIB(S) | POLARIZED RIB(S) | POLARIZED RIB(S) | - | - | - |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | - | - | - |
| Guideline | UL | UL | UL | UL | UL | - | - | - |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | - | - |
| Termination type | IDC | IDC | IDC | IDC | IDC | - | - | - |
| Total number of contacts | 20 | 16 | 40 | 14 | 60 | - | - | - |
| Maximum wire diameter | 28 AWG | 28 AWG | 28 AWG | 28 AWG | 28 AWG | - | - | - |
| Minimum wire diameter | 30 AWG | 30 AWG | 30 AWG | 30 AWG | 30 AWG | - | - | - |
