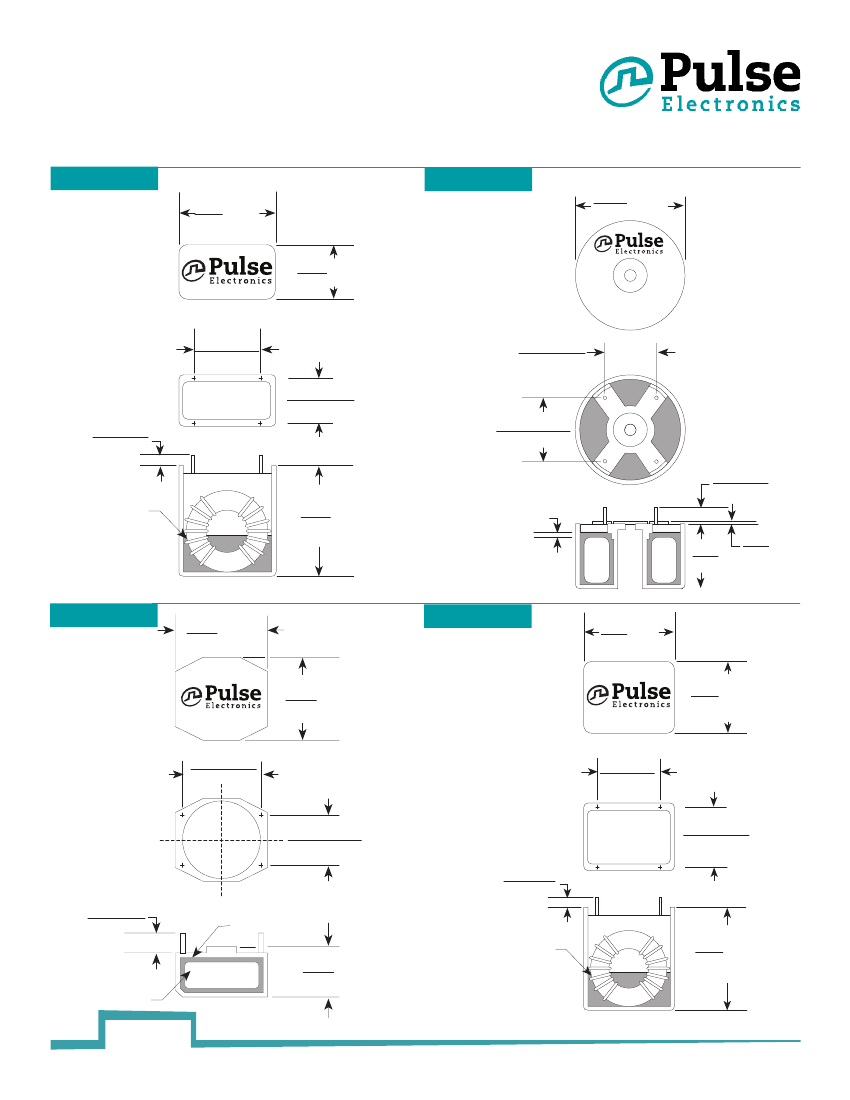

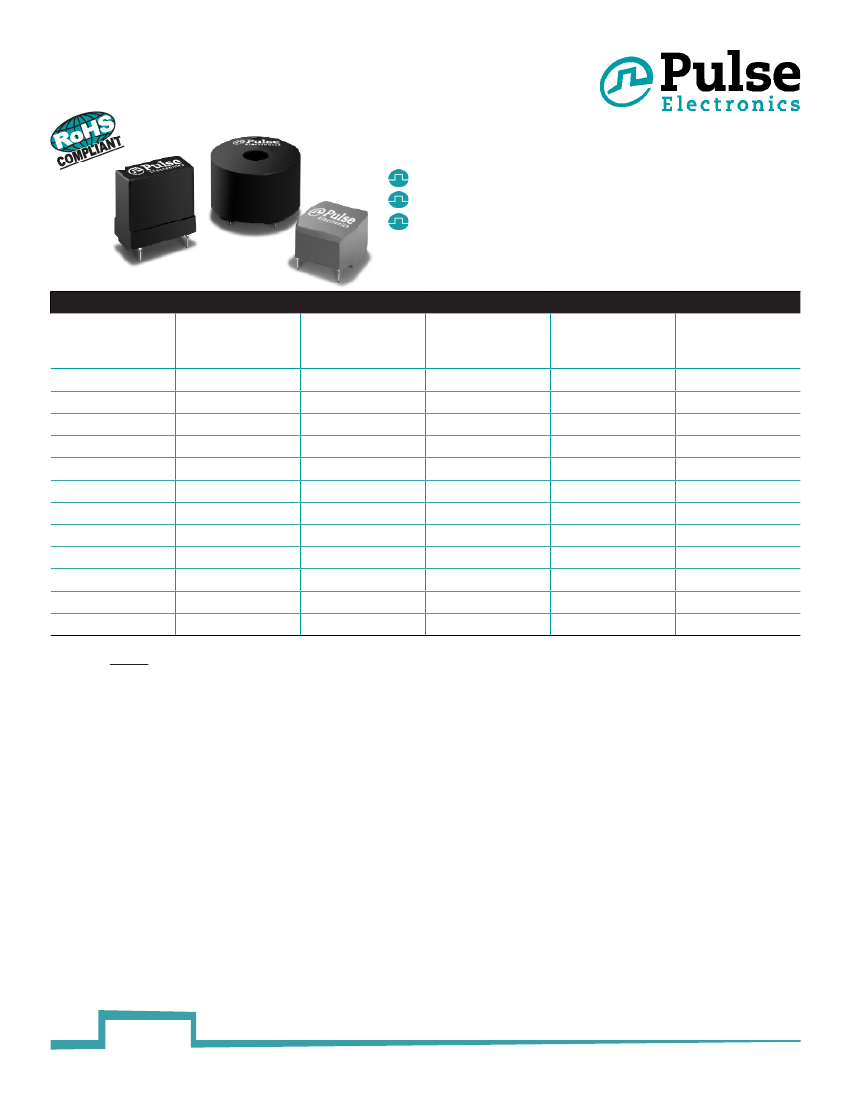

500 kHz Common Mode
EMI Inductors
Common mode EMI Inductors
Designed for higher frequency power conversion
For use in SMPS input filtering circuit
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part
Number
PE-96161NL
PE-96166NL
PE-96173NL
PE-96175NL
PE-96177NL
PE-96178NL
PE-96179NL
PE-96181NL
PE-96186NL
PE-96187NL
PE-96188NL
PE-96190NL
Notes:
.031/.039
1. Leads have
diameter.
.700/.900
2. Self-leaded:
96187
has .036 nom. diameter leads.
96188
&
96189
have .045 nom. diameter leads.
96190
has .051 nom. diameter leads.
Rated RMS
Current
(A. Normal)
0.5
1.0
3.15
3.15
3.15
3.15
3.15
5.0
6.3
8.0
10.0
15.0
Inductance
mH
(±30%)
33
5.6
5.6
3.3
2.2
1.2
1.2
3.9
2.7
3.3
1.8
1.0
DCR
(Ω MAX)
1.40
0.30
0.10
0.07
0.06
0.04
0.04
0.06
0.04
0.033
0.02
0.01
Case
Style
3
3
1
3
3
3
4
1
1
2
2
2
Leakage
Inductance
(MIN/MAX
µH)
160/320
30/60
40/80
15/35
10/20
6/15
5/14
25/60
20/45
20/45
10/25
7/15
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
P593.D (12/15)
pulseelectronics.com
500 kHz Common Mode
EMI Inductors
Schematic
1
2
3
4
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Tel: 858 674 8100
Fax: 858 674 8262
Pulse Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Road
High-Tech Zone
Nanshan District
Shenzhen, PR China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
135 Joo Seng Road
#03-02
PM Industrial Bldg.
Singapore 368363
Tel: 65 6287 8998
Fax: 65 6287 8998
Pulse North Asia
3F, No. 198
Zhongyuan Road
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823 (Pulse)
Fax: 886 3 4356820 (FRE)
Tel: 49 7032 7806 0
Fax: 49 7032 7806 135
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be
trademarks or registered trademarks of their respective owners. © Copyright, 2015. Pulse Electronics, Inc. All rights reserved.
3
pulseelectronics.com
P593.D (12/15)
