LFSPXO062344Bulk datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO062344Bulk

LFSPXO062344Bulk: DescriptionStandard Clock Oscillators 100MHz 3.3V 100ppm -10C +70C; CategoryPassive components; File Size791KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO062344Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO062344Bulk	-	-	View	Buy Now

LFSPXO062344Bulk Overview

Standard Clock Oscillators 100MHz 3.3V 100ppm -10C +70C

LFSPXO062344Bulk Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD
Product Category	Standard Clock Oscillators
RoHS	Details
Product	Standard Clock Oscillators
Frequency	100 MHz
Frequency Stability	100 PPM
Operating Supply Voltage	3.3 V
Output Format	LVDS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 10 C
Maximum Operating Temperature	+ 70 C
Length	7.2 mm
Width	5.2 mm
Height	1.4 mm
Packaging	Bulk
Type	Ceramic Surface Mount Crystal Oscillator
Duty Cycle - Max	55 %
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

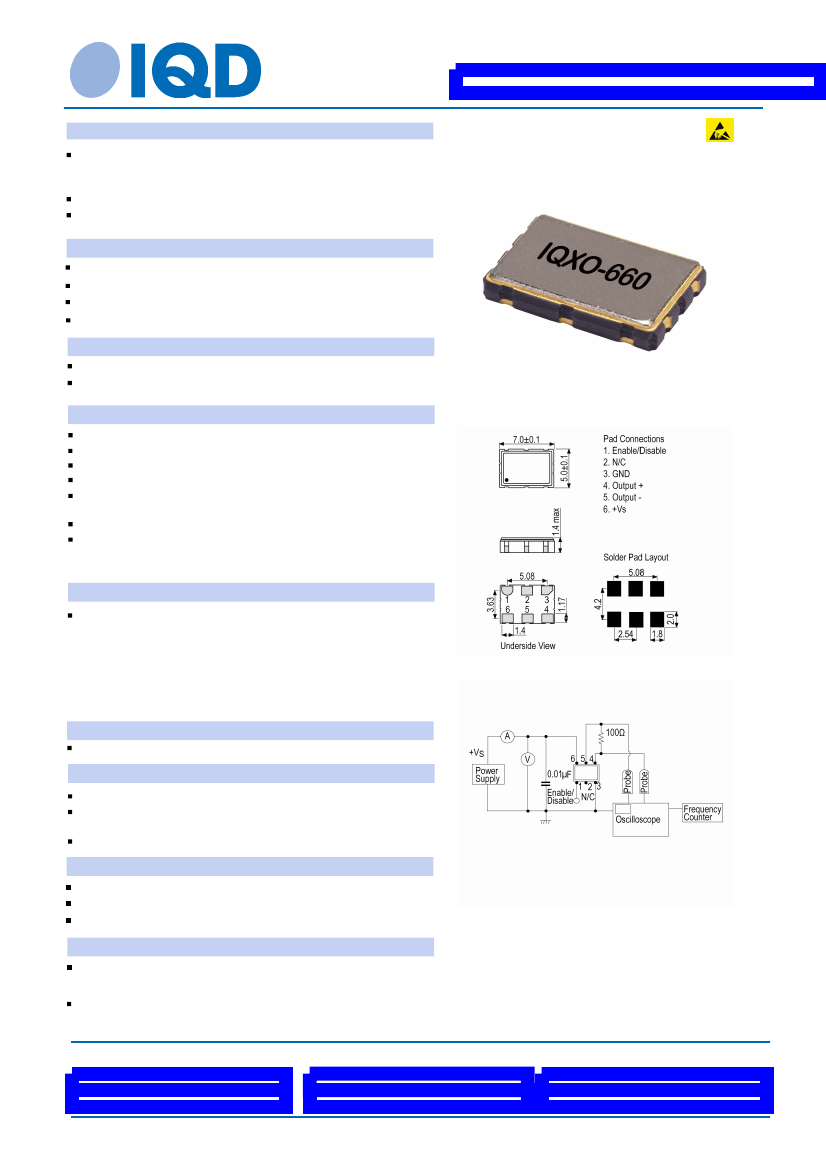

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO062344Bulk

Description

LVDS output crystal oscillator using a high frequency

fundamental crystal to give very low jitter. Hermetically sealed

ceramic package with a seam sealed metal lid.

Model

IQXO-660

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

100.0MHz

±100.00ppm

-10.00 to 70.00°C

±3ppm max per year at 25°C

Supply Voltage

Current Draw

Output Details

3.3V ±5%

50.00mA

Outline (mm)

LVDS

Output Compatability

Drive Capability

100Ω

Rise & Fall Time (20 - 80%)

0.5ns max

45/55%

Duty Cycle

Differential Output Voltage (VoD): 0.247V min, 0.330V typ,

0.454V max.

Offset Voltage (VOS): 1.125V min, 1.250V typ, 1.375V max.

Output Voltage Levels:

Output Low (VoL): 0.9V min

Output High (VoH): 1.6V max

Output Control

Enable/Disable:

Logic ‘1’ (≥70% Vs) to pad 1 enables oscillator output.

Logic ‘0’ (≤30% Vs) to pad 1 disables oscillator output; when

disabled the oscillator output goes to the high impedance

state.

No connection to pad 1 enables oscillator output.

Standby Current: 10µA max

Noise Parameters

Test Circuit

Phase Jitter (12kHz to 20MHz): 1ps rms max

Environmental Parameters

Storage Temperature Range: -55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E: 1000G,

0.5ms, half sine wave.

Vibration: MIL-STD-883, Method 2007, Condition A: 20G

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
