1N5623S0F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N5623S0F

1N5623S0F: DescriptionRectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2; CategoryDiscrete semiconductor diode; File Size189KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

1N5623S0F Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2

1N5623S0F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	HERMETIC SEALED PACKAGE-2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

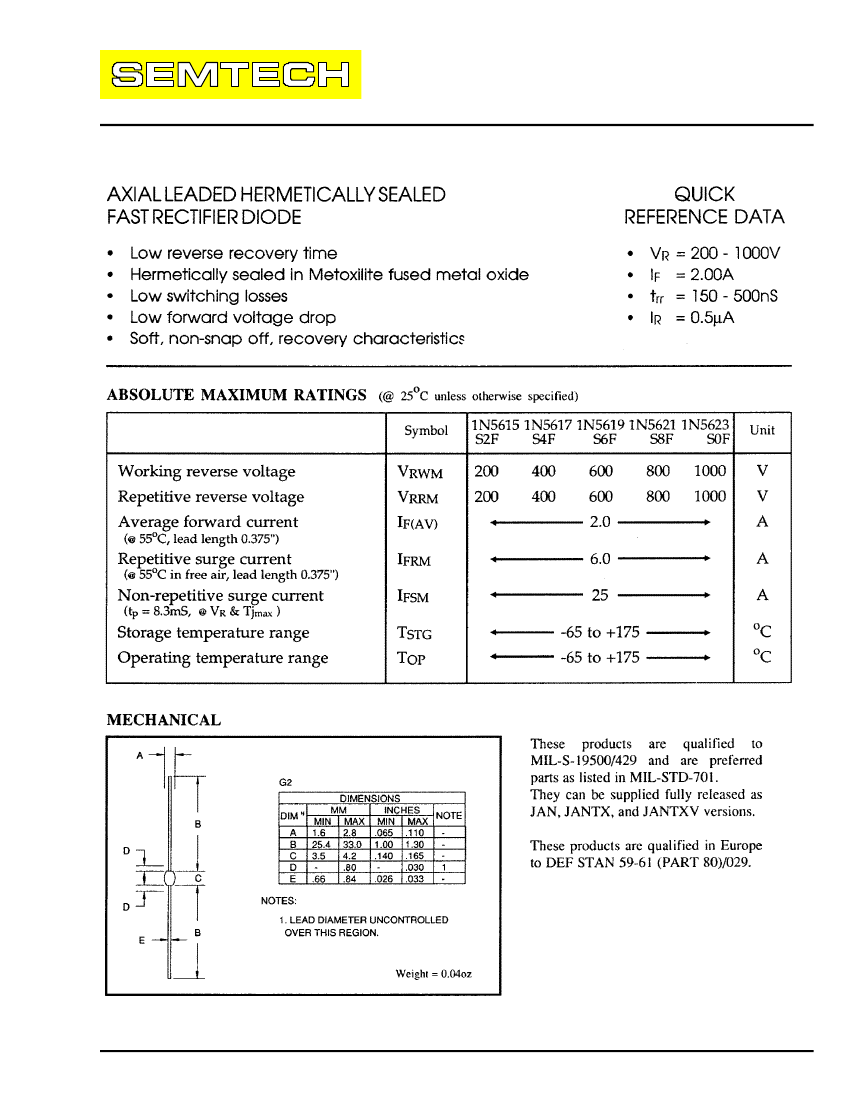

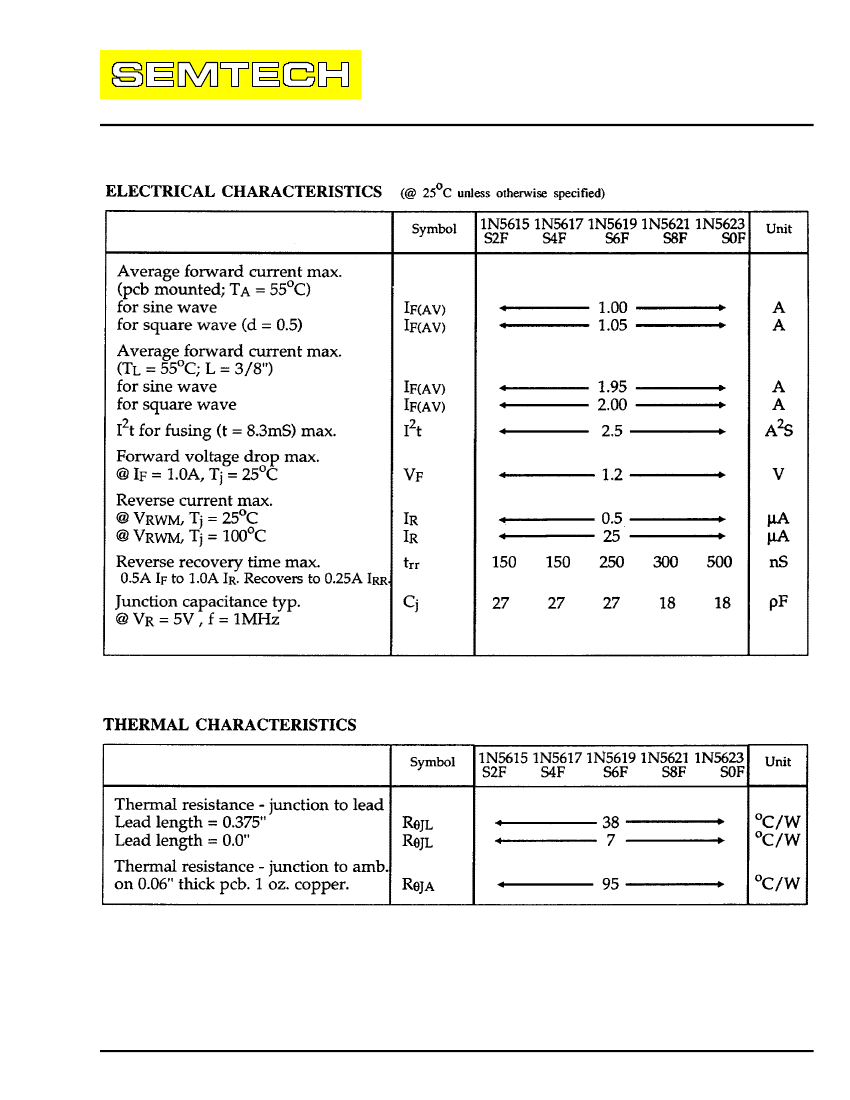

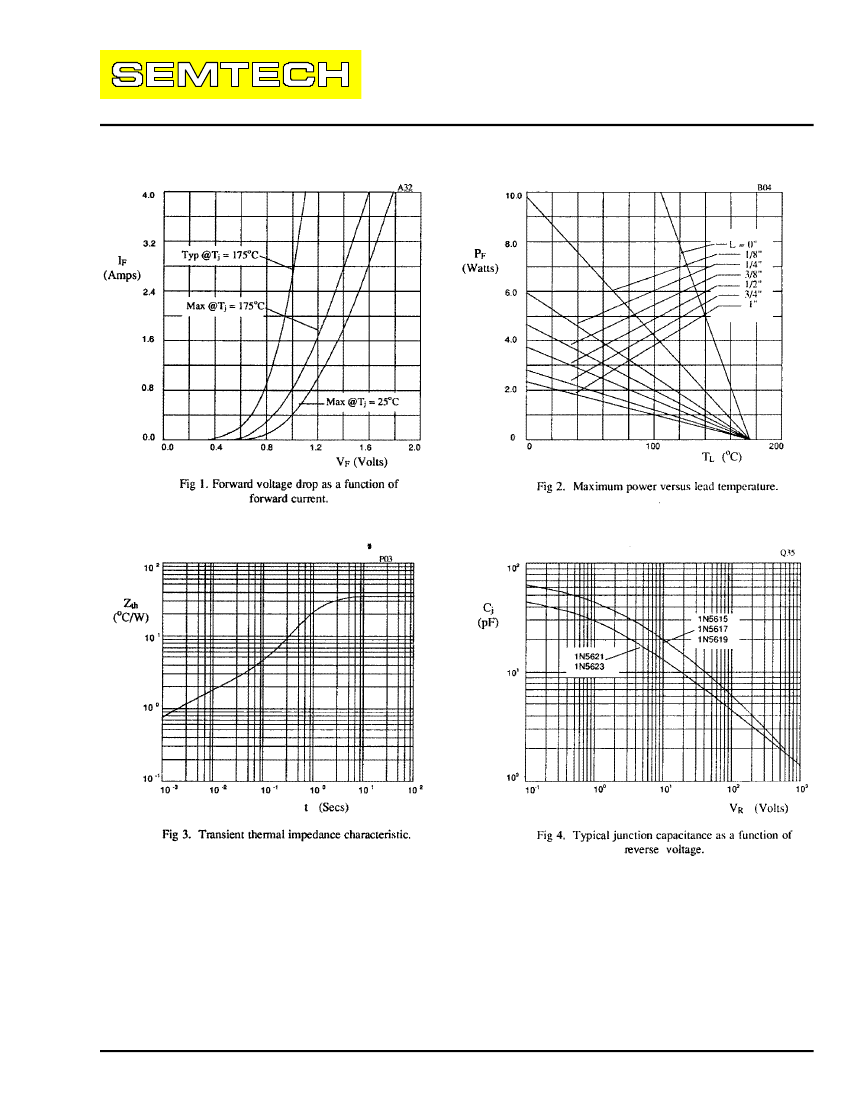

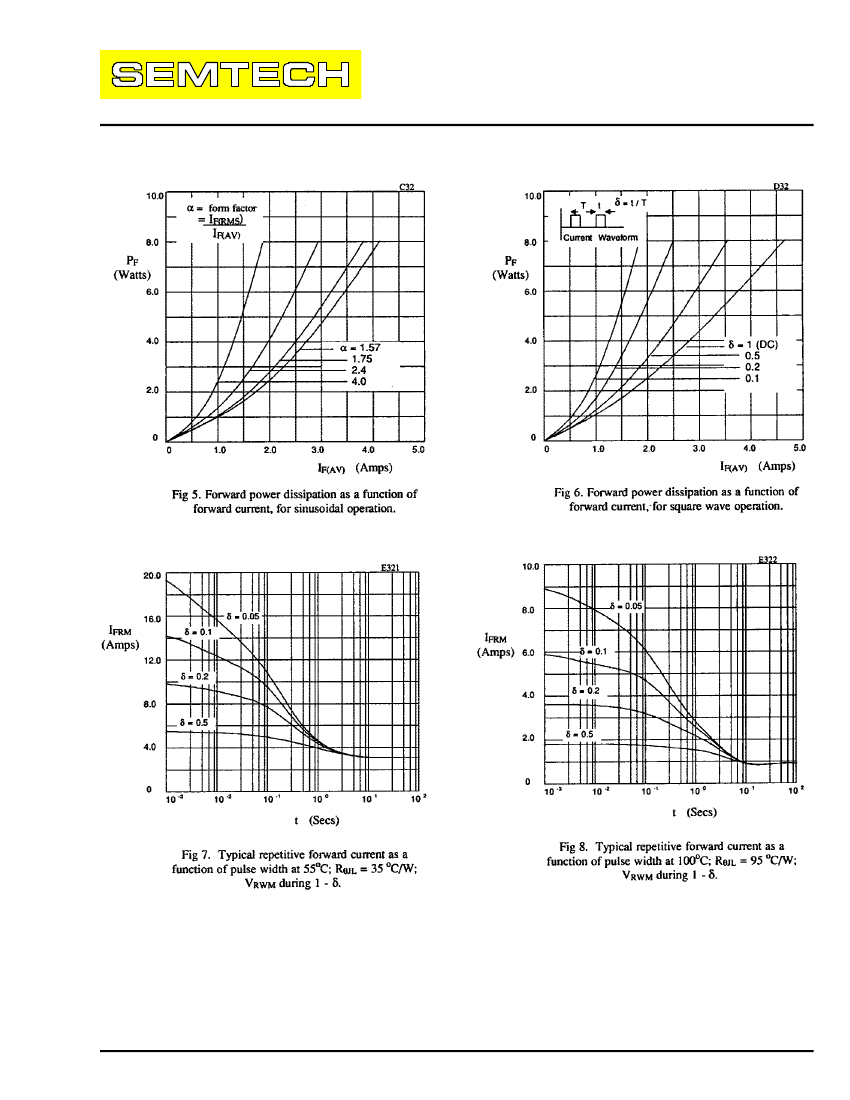

RECTIFIER, up to 1kV, 2A,

150-500ns

1N5615 thru 1N5623

S2F thru S0F

January 7, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

1N5623S0F Related Products

	1N5623S0F	1N5617S4F	1N5615S2F	055U1R5F251PT-A	25T08AI-B
Description	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2	Ceramic Capacitor, Multilayer, Ceramic, 250V, 1% +Tol, 1% -Tol, NP0, -/+30ppm/Cel TC, 0.0000015uF, 0606,	TRIACs
Is it lead-free?	Contains lead	Contains lead	Contains lead	-	-
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	-
package instruction	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	HERMETIC SEALED PACKAGE-2	, 0606	-
Contacts	2	2	2	-	-
Reach Compliance Code	unknow	unknow	unknow	compliant	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	-	-
Configuration	SINGLE	SINGLE	SINGLE	-	-
Diode component materials	SILICON	SILICON	SILICON	-	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	-
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	-	-
JESD-609 code	e0	e0	e0	e4	-
Number of components	1	1	1	-	-
Number of terminals	2	2	2	2	-
Maximum output current	1 A	1 A	1 A	-	-
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	-
Package shape	ROUND	ROUND	ROUND	-	-
Package form	LONG FORM	LONG FORM	LONG FORM	SMT	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-
Maximum repetitive peak reverse voltage	1000 V	400 V	200 V	-	-
Maximum reverse recovery time	0.5 µs	0.15 µs	0.15 µs	-	-
surface mount	NO	NO	NO	-	-
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Palladium/Silver (Pd/Ag)	-
Terminal form	WIRE	WIRE	WIRE	-	-
Terminal location	AXIAL	AXIAL	AXIAL	-	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
Base Number Matches	1	1	1	-	-
