PMR4RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PMR4RD

PMR4RD: DescriptionLED Panel Mount Indicators Rect Red 700nm Dif Lens No Wire/Con; CategoryLED optoelectronic/LED; File Size185KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PMR4RD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PMR4RD	-	-	View	Buy Now

PMR4RD Overview

LED Panel Mount Indicators Rect Red 700nm Dif Lens No Wire/Con

PMR4RD Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Panel Mount Indicators
RoHS	Details
Illumination Color	Red
Mounting Hole Size	5.54 mm x 3.48 mm
Mounting Style	Press Fit
Termination Style	Straight Lead
Lens Color/Style	Red Diffused
LED Size	4 mm x 2 mm
If - Forward Current	20 mA
Vf - Forward Voltage	2.1 V
Wavelength/Color Temperature	700 nm
Packaging	Bulk
Luminous Intensity	0.4 mcd
Viewing Angle	120 deg
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

PMR4

R4XXX

PART DESCRIPTION

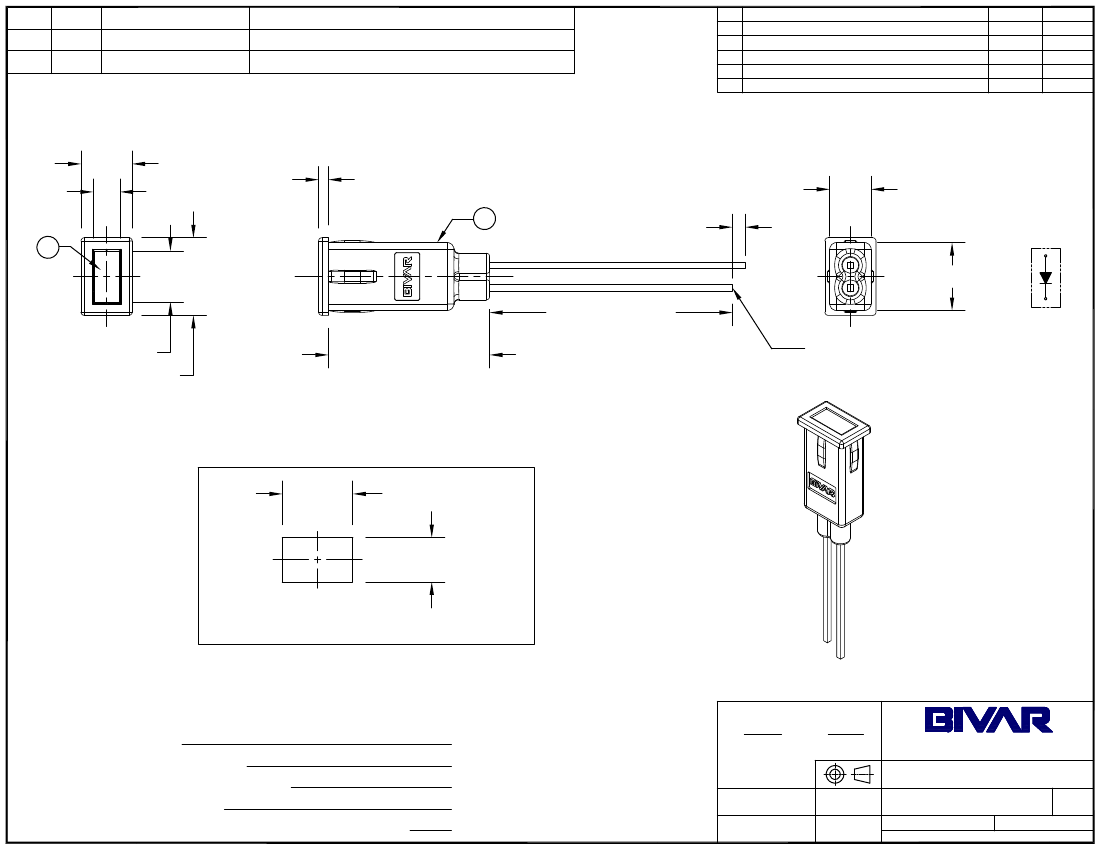

Rectangular LED Holder, Panel Mount, Press Fit

2 X 4mm Rectangular LED, See Page 2

REV.

DESCRIPTION

DATE

APPROVED

Engineering Release

Engineering Update w/o Changes

07/02/09

08/14/16

T. Y.

J. C.

0.158 [4.0mm]

0.083 [2.1mm]

0.030 [0.8mm]

0.040 [1.0mm]

MIN.

0.128 [3.3mm]

0.210 [5.3mm]

0.750 [19.0mm]

MIN.

0.498 [12.6mm]

0.157 [4.0mm]

0.240 [6.1mm]

SHORT LEAD

CATHODE

0.218±0.002

0.137±0.002

RECOMMENDED MOUNTING HOLE

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)

REVERSE VOLTAGE

REVERSE CURRENT ( VR=5V)

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE (1/16" FROM BODY)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

100

-25°C ~ 85°C

-30°C ~ 100°C

260°C for 5 Seconds

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

R. Paje

CHECKED:

07/02/09

DATE:

TITLE:

2 X 4mm RECTANGULAR LED

PANEL MOUNT ASSEMBLY

REVISION:

PART NO:

PMR4XXX

CAGE CODE : 32559

T. Yin

07/02/09

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PMR4RD Related Products

	PMR4RD	PMR4PGD	PMR4HD	PMR4AD	PMR4BWD	PMR4GD
Description	LED Panel Mount Indicators Rect Red 700nm Dif Lens No Wire/Con	LED Panel Mount Indicators Rect Grn 555nm Dif Lens No Wire/Con	LED Panel Mount Indicators Rect HE Red 625nm Dif Lens No Wire/Con	LED Panel Mount Indicators Rect Amber 605nm Dif Lens No Wire/Con	LED Panel Mount Indicators Rect Blue 430nm Dif Lens No Wire/Con	LED Panel Mount Indicators Rect Grn 568nm Dif Lens No Wire/Con
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bivar	Bivar	Bivar	Bivar	Bivar	Bivar
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators
RoHS	Details	Details	Details	Details	Details	Details
Illumination Color	Red	Green	Red	Amber	Blue	Green
Mounting Hole Size	5.54 mm x 3.48 mm	5.54 mm x 3.48 mm	5.54 mm x 3.48 mm	5.54 mm x 3.48 mm	5.54 mm x 3.48 mm	5.54 mm x 3.48 mm
Mounting Style	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit	Press Fit
Termination Style	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead	Straight Lead
Lens Color/Style	Red Diffused	Green Diffused	Red Diffused	Amber Diffused	Blue Diffused	Green Diffused
LED Size	4 mm x 2 mm	4 mm x 2 mm	4 mm x 2 mm	4 mm x 2 mm	4 mm x 2 mm	4 mm x 2 mm
If - Forward Current	20 mA	30 mA	30 mA	30 mA	25 mA	30 mA
Vf - Forward Voltage	2.1 V	2.2 V	2 V	2 V	4 V	2.1 V
Wavelength/Color Temperature	700 nm	555 nm	625 nm	605 nm	430 nm	568 nm
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Luminous Intensity	0.4 mcd	2 mcd	8 mcd	6 mcd	6 mcd	8 mcd
Viewing Angle	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Factory Pack Quantity	100	100	100	100	100	100
