556-1706-324F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 556-1706-324F

556-1706-324F: DescriptionLED Panel Mount Indicators 1" FLAT YELLOW 72 VDC, C1D2; CategoryLED optoelectronic/LED photoelectric; File Size214KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric View All

556-1706-324F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	556-1706-324F	-	-	View	Buy Now

556-1706-324F Overview

LED Panel Mount Indicators 1" FLAT YELLOW 72 VDC, C1D2

556-1706-324F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Is Samacsys	N
Other features	UL RECOGNIZED
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.02 A
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	CYLINDRICAL
size	28.5 mm
surface mount	NO
Base Number Matches	1

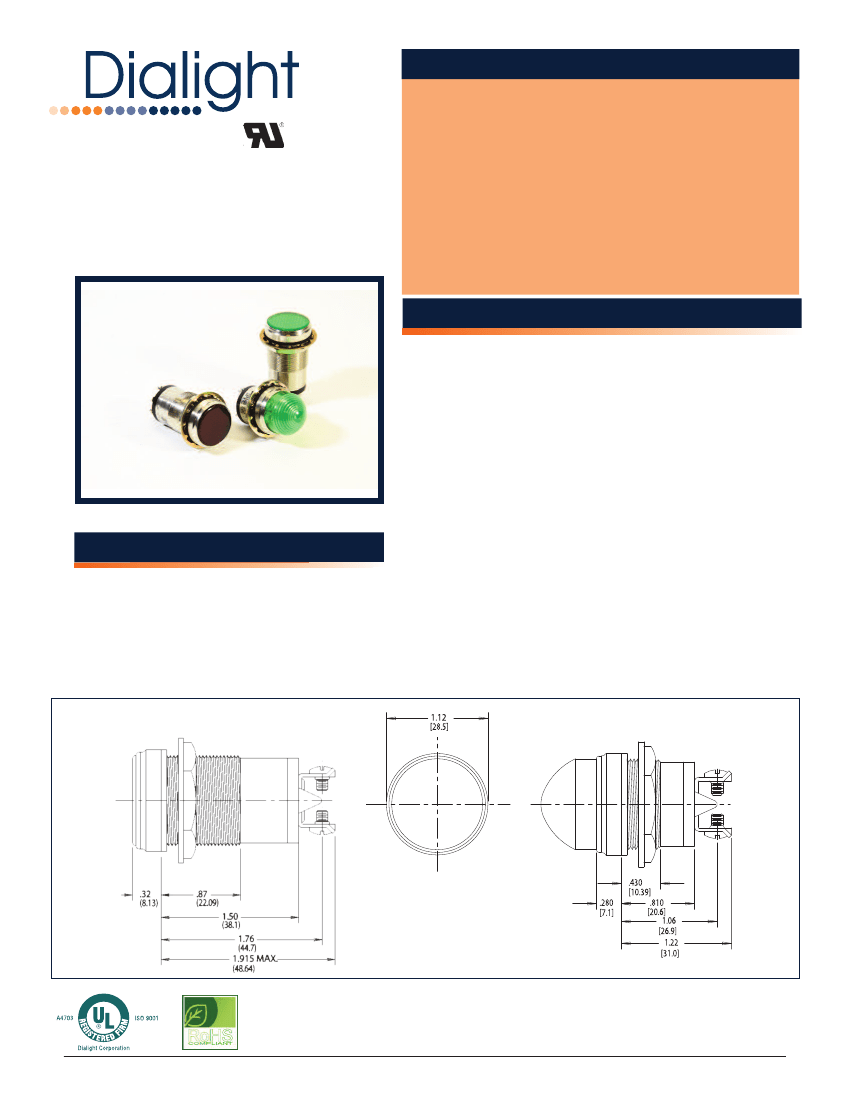

Preview

Download Datasheet

View All

features / Benefits

Rated for use in Class I, Div. 2 hazardous

556 Series

Class I, Div. 2

Panel Mount Indicators

for 1” Mounting Hole

Watertight - NEMA4X IP66

locations

Safety standards - UL and NEMA

Tamperproof / Designed for high durability

Long life, lasting up to 100k hours

Uniform illumination - multi-LED construction

Low profile flat lens or wide angle domed lens

IP66 from front of panel

applications

The 556 Series LED Panel Mount Indicators incorporate both InGaN

and AlInGaP technologies to offer maximum light output. This is a

highly durable package, designed to withstand outdoor applications

susceptible to rain, dust and sunlight. In addition, the Class I,

Division 2 rating allows for use in hazadrous enviroments common

to the oil and gas, mining, and chemical industries.

• Instrument panels

• Mining equiptment

• Safety applications

• Oil Refineries

• UL 508 panel applications

• Transportation - rail, bus, airline

• Agricultural controls

• Petrochemical applications

• Power Generators

• Pump system controlers

• Environmental Monitoring Equiptment

...And Many More

specifications

Available in white, red, yellow, green, blue, orange and cyan

UL recognized - File #E156890

Voltage range of 12 to 125 VDC, 125 and 230 VAC

Front mounting in 1” clearance hole

Watertight seal from front of panel meets NEMA 4X IP66

Operating temperature: -30

C to +85

Maximum Mounting Torque - 40 in./lb.

Storage temperature: -40

C to +100

Housing material: Nickel plated brass

Lens material: Polycarbonate 94 -VO

Recognized component for use in Class I, Division 2, Groups A,B,C,D Hazardous Locations

FLAT LENS

DOMED LENS

Dimensions in inches [mm]

All measurements are typical

Max. panel thickness:

Flat .600”

Dome .187”

Polarity marking indicated on housing near positive supply terminal

Please see back of page for part numbers and additional specifications.

www.dialight.com
