VLM.33..
www.vishay.com
Vishay Semiconductors
Power SMD LED PLCC-2
FEATURES
• Utilizing (AS) AlInGaP technology
• Available in 8 mm tape
• Luminous intensity and color categorized per
packing unit
• Luminous intensity ratio per packing unit
I
Vmax.
/I
Vmin.
≤
1.6
19225
• Thermal resistance R = 400 K/W
• ESD-withstand voltage: up to 2 kV according to
JESD22-A114-B
• Preconditioning according to JEDEC
®
level 2a
• Compatible with reflow, vapor phase, and wave solder
processes according to CECC 00802 and J-STD-020
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION
The VLM.33.. series is an advanced modification of the
Vishay VLM.33.. series. It is designed to incorporate larger
chips, therefore, capable of withstanding a 50 mA drive
current.
The package of the VLM.33.. is the PLCC-2.
It consists of a lead frame which is embedded in a white
thermoplast. The reflector inside this package is filled up
with clear epoxy.
APPLICATIONS
• Traffic signals and signs
• Interior and exterior lighting
• Dashboard illumination
• Indicator and backlighting purposes for audio, video,
LCDs switches, symbols, illuminated advertising etc.
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: SMD PLCC-2
• Product series: power
• Angle of half intensity: ± 60°
PARTS TABLE
PART
VLMS33S1T2-GS08
VLMS33S1T2-GS18
VLMS33S1U1-GS08
VLMS33S1U1-GS18
VLMR33T1U2-GS08
VLMR33T1U2-GS18
VLMR33R2U2-GS08
VLMR33R2U2-GS18
VLMO33S1T2-GS08
VLMO33S1T2-GS18
VLMO33T1U2-GS08
VLMO33T1U2-GS18
VLMO33R2U2-GS08
VLMO33R2U2-GS18
VLMY33T1U2-GS08
VLMY33T1U2-GS18
VLMY33T2U2-46-GS08
VLMY33R2U2-GS08
VLMY33R2U2-GS18
Rev. 1.5, 03-Nov-15
COLOR
Super red
Super red
Super red
Super red
Amber
Amber
Amber
Amber
Soft orange
Soft orange
Soft orange
Soft orange
Soft orange
Soft orange
Yellow
Yellow
Yellow
Yellow
Yellow
LUMINOUS
INTENSITY
(mcd)
MIN. TYP. MAX.
180
180
180
180
280
280
140
140
180
180
280
280
140
140
280
280
355
140
140
290
290
290
290
450
450
450
450
327
327
470
470
470
470
425
425
425
425
425
450
450
560
560
710
710
710
710
450
450
710
710
710
710
710
710
710
710
710
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
at I
F
(mA)
WAVELENGTH
(nm)
MIN. TYP. MAX.
626
626
626
626
611
611
611
611
600
600
600
600
600
600
583
583
587
583
583
630
630
630
630
617
617
617
617
605
605
605
605
605
605
588
588
589
588
588
638
638
638
638
622
622
622
622
611
611
611
611
611
611
594
594
594
594
594
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
at I
F
(mA)
FORWARD
VOLTAGE
(V)
MIN. TYP. MAX.
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
AlInGaP on GaAs
at I
F
(mA)
TECHNOLOGY
Document Number: 81336
1
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLM.33..
www.vishay.com
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
VLM.33..
PARAMETER
Reverse voltage
(1)
TEST CONDITION
T
amb
≤
73 °C (400 K/W)
SYMBOL
V
R
I
F
P
V
T
j
T
amb
T
stg
mm
2
)
R
thJA
VALUE
5
50
130
+125
-40 to +100
-40 to +100
400
UNIT
V
mA
mW
°C
°C
°C
K/W
DC forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Thermal resistance junction / ambient Mounted on PC board (pad size > 16
Note
(1)
Driving the LED in reverse direction is suitable for a short term application
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMS33.., SUPER RED
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
V
R
= 5 V
TEST CONDITION
I
F
= 30 mA
PART
VLMS33S1T2
VLMS33S1U1
SYMBOL
l
V
l
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
180
180
-
626
-
-
-
1.7
-
TYP.
290
290
3
630
641
17
± 60
2.0
0.01
MAX.
450
560
-
638
-
-
-
2.5
10
UNIT
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMR33.., AMBER
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
V
R
= 5 V
TEST CONDITION
I
F
= 30 mA
PART
VLMR33T1U2
VLMR33R2U2
SYMBOL
l
V
l
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
280
140
-
611
-
-
-
1.7
-
TYP.
450
450
3
617
624
18
± 60
2.0
0.01
MAX.
710
710
-
622
-
-
-
2.5
10
UNIT
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMO33.., SOFT ORANGE
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
Rev. 1.5, 03-Nov-15
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
V
R
= 5 V
TEST CONDITION
I
F
= 30 mA
PART
VLMO33S1T2
VLMO33T1U2
VLMO33R2U2
SYMBOL
l
V
l
V
l
V
φ
V
/I
V
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
180
280
140
-
600
-
-
-
1.7
-
TYP.
327
470
470
3
605
611
17
± 60
2.0
0.01
MAX.
450
710
710
-
611
-
-
-
2.5
10
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
deg
V
μA
Document Number: 81336
2
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLM.33..
www.vishay.com
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
VLMY33.., YELLOW
PARAMETER
Luminous intensity
Luminous flux/luminous intensity
Dominant wavelength
Peak wavelength
Spectral bandwidth at 50 % I
rel max.
Angle of half intensity
Forward voltage
Reverse current
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
I
F
= 30 mA
V
R
= 5 V
VLMY33T1U2,
VLMY33R2U2
VLMY33T2U2-46
TEST CONDITION
I
F
= 30 mA
PART
VLMY33T1U2
VLMY33T2U2-46
VLMY33R2U2
SYMBOL
l
V
l
V
l
V
φ
V
/I
V
λ
d
λ
d
λ
p
Δλ
ϕ
V
F
I
R
MIN.
280
355
140
-
583
587
-
-
-
1.7
-
TYP.
425
425
425
3
588
589
590
18
± 60
2.0
0.01
MAX.
710
710
710
-
594
594
-
-
-
2.5
10
UNIT
mcd
mcd
mcd
mlm/mcd
nm
nm
nm
nm
deg
V
μA
COLOR CLASSIFICATION
DOMINANT WAVELENGTH (nm)
GROUP
MIN.
1
2
3
4
5
6
611
614
-
-
-
-
AMBER
MAX.
618
622
-
-
-
-
598
600
602
604
606
608
SOFT ORANGE
MIN.
MAX.
601
603
605
607
609
611
MIN.
581
583
585
587
589
591
YELLOW
MAX.
584
586
588
590
592
594
Note
• Wavelengths are tested at a current pulse duration of 25 ms.
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
P
Q
R
S
T
U
1
2
1
2
1
2
1
2
1
2
1
2
LUMINOUS INTENSITY (mcd)
OPTIONAL
MIN.
45
56
71
90
112
140
180
224
280
355
450
560
MAX.
56
71
90
112
140
180
224
280
355
450
560
710
CROSSING TABLE
VISHAY
VLMS33S1T2
VLMS33S1U1
OSRAM
LST67B-S1T2
LST67B-T1U1
Note
• Luminous intensity is tested at a current pulse duration of 25 ms
and an accuracy of ± 11 %.
The above type Numbers represent the order groups which
include only a few brightness groups. Only one group will be
shipped on each reel (there will be no mixing of two groups on
each reel).
In order to ensure availability, single brightness groups will not
be orderable.
In a similar manner for colors where wavelength groups are
measured and binned, single wavelength groups will be shipped
on any one reel.
In order to ensure availability, single wavelength groups will not
be orderable.
Rev. 1.5, 03-Nov-15
Document Number: 81336
3
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLM.33..
www.vishay.com

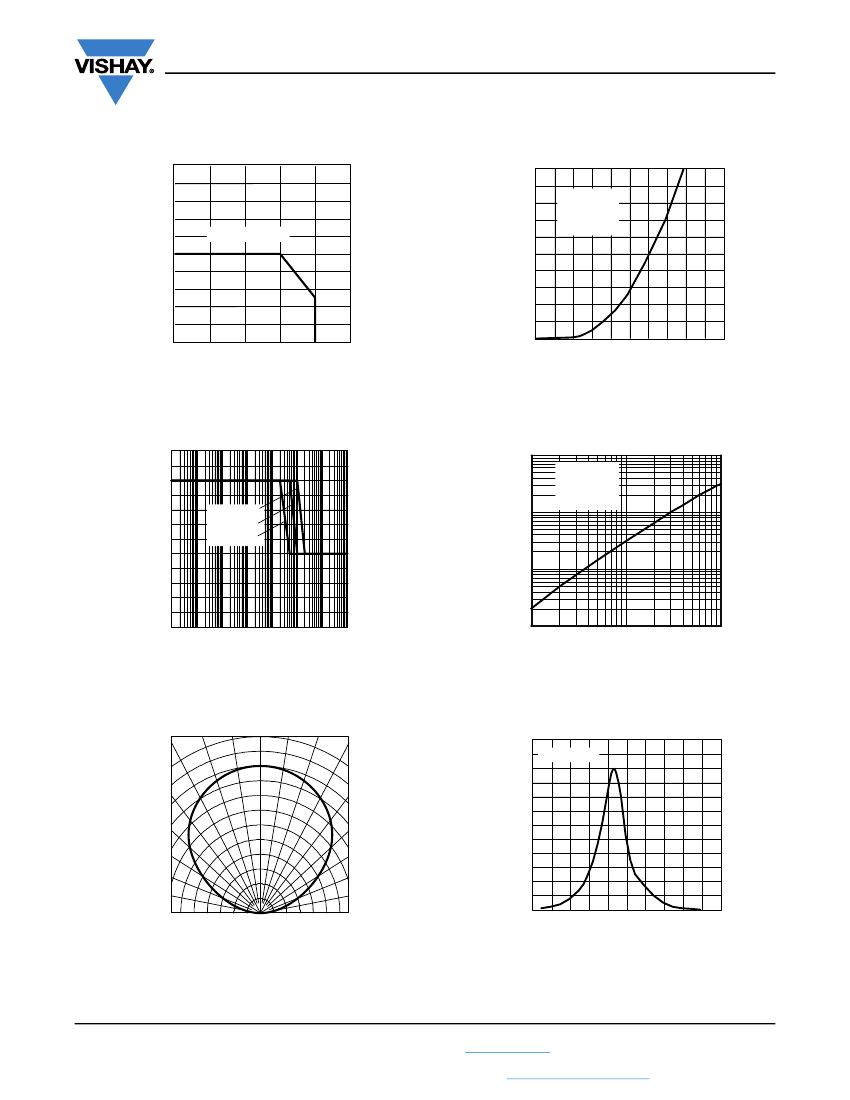

TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
100
90
Vishay Semiconductors
100
90
I
F
- Forward Current (mA)
80
70
60
50
40
30
20
10
0
25
50
75
100
125
20144
I
F
- Max. Permissible
Forward Current (mA)
80
70
60
50
40
30
20
10
0
R
thJA
= 400 K/W
yellow
soft orange
amber
super red
0
1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5
V
F
- Forward Voltage (V)
16784
T
amb
- Ambient Temperature (°C)
Fig. 1 - Forward Current vs. Ambient Temperature
Fig. 4 - Forward Current vs. Forward Voltage
0.12
10
I
V rel
- Relative Luminous Intensity
I
F
- Forward Current (A)
0.10
0.08
0.06
0.04
0.02
0.00
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
super red
amber
yellow
soft orange
1
t
p
/T = 0.005
0.05
0.5
0.1
0.01
1
20143
10
100
17044
t
p
- Pulse Length (s)
I
F
- Forward Current (mA)
Fig. 2 - Forward Current vs. Pulse Length
Fig. 5 - Relative Luminous Intensity vs. Forward Current
0°
10°
20°
30°
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
1.2
1.1
super red
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
600 610 620 630 640 650 660 670 680 690 700
λ
- Wavelength (nm)
I
V rel
- Relative Luminous Intensity
95 10319
Fig. 3 - Relative Luminous Intensity vs. Angular Displacement
I
V rel
- Relative Luminous Intensity
ϕ
- Angular Displacement
20198
Fig. 6 - Relative Intensity vs. Wavelength
Rev. 1.5, 03-Nov-15
Document Number: 81336
4
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VLM.33..
www.vishay.com
Vishay Semiconductors
V
F
- Change of Forward Voltage (mV)
250
200
150
100
50
0
- 50
- 100
- 150
- 200
- 50
- 25
0
25
50
75
100
10 mA
50 mA
super red
30 mA
2.5
I
V rel
- Relative Luminous Intensity
super red
2.0
1.5
1.0
0.5
0.0
- 50
20201
- 25
0
25
50
75
T
amb
- Ambient Temperature (°C)
100
17039
T
amb
- Ambient Temperature (°C)
Fig. 7 - Relative Luminous Intensity vs. Ambient Temperature
Fig. 10 - Change of Forward Voltage vs. Ambient Temperature
Δ λ
d
- Change of Dom. Wavelength (nm)
1.5
I
V rel
- Relative Luminous Intensity
1.2
super red
1.0
0.5
0.0
- 0.5
- 1.0
- 1.5
10 20 30 40 50 60 70 80 90 100
I
F
- Forward Current (mA)
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
amber
570 580 590 600 610 620 630 640 650 660 670
20196
20202
λ
- Wavelength (nm)
Fig. 8 - Change of Dominant Wavelength vs. Forward Current
Fig. 11 - Relative Intensity vs. Wavelength
Δ λ
d
- Change of Dom. Wavelength (nm)
3
super red
I
V rel
-Relative Luminous Intensity
2
1
0
-1
-2
-3
-4
-5
- 50
- 25
0
25
50
75
100
20197
2.5
amber
2.0
1.5
1.0
0.5
0.0
- 50
- 25
0
25
50
75
100
20203
T
amb
- Ambient Temperature (°C)
T
amb
- Ambient Temperature (°C)
Fig. 9 - Change of Dominant Wavelength vs.
Ambient Temperature
Fig. 12 - Relative Luminous Intensity vs. Ambient Temperature
Rev. 1.5, 03-Nov-15
Document Number: 81336
5
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
