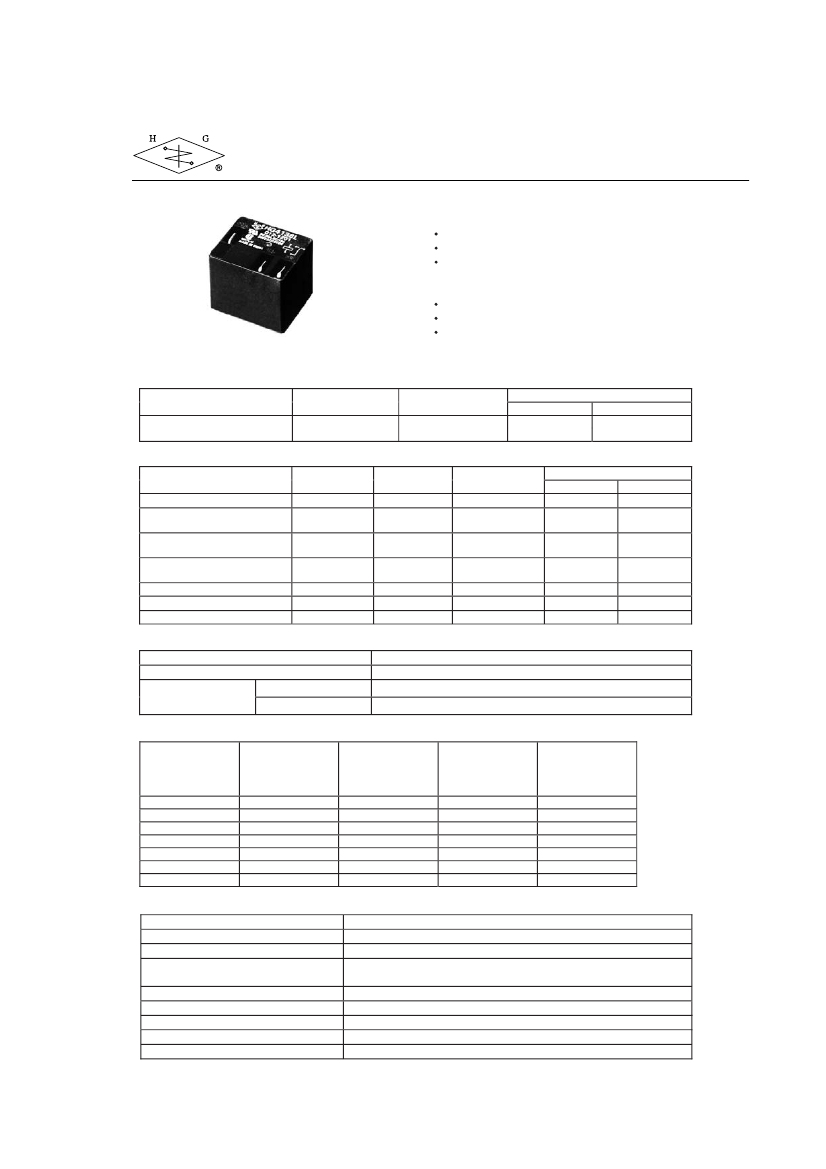

Miniature PCB / QC Heavy Duty Power Relay
HG4138L
FEATURES
Improved HG4138 relay by magnetic arc blowout
Up to 45A switching capacity
PCB + QC termination
TYPICAL APPLICATIONS
Power supply device
Industrial control
Medical equipment
CONTACT RATING
Form
Resistive
1 Form A (1H)
45A, 240VAC
45A, 28VDC
1 Form B (1D)
15A, 240VAC
15A, 28VDC
1 Form C (1Z)
NO
30A, 240VAC
30A, 28VDC
NC
15A, 240VAC
15A, 28VDC
UL/CSA RATING
Load Type
General Purpose
Resistive
Motor
LRA/FLA
Tungsten
Ballast
Pilot Lamp
Voltage
240VAC
240VAC
28VDC
240VAC
120VAC
240VAC
120VAC
120VAC
277VAC
125 - 250VAC
1 Form A (1H)
45A
45A
30A
3HP
1.5HP
120A/45A
147A/33A
TV8
15A
700VA
1 Form B (1D)
20A
20A
15A
0.75HP
0.375HP
45A/15A
TV4
4.5A
1 Form C (1Z)
NO
NC
30A
15A
15A
30A
30A
15A
0.75HP
2HP
1.5HP
0.375HP
75A/30A
TV8
15A
30A/10.5A
TV4
4.5A
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgCdO, AgSnOInO
50 mΩ, max. at 0.1A, 6VDC
10
7
ops.
1.5 x 10
4
ops.
COIL DATA
Coil Voltage
Code
005
006
009
012
024
048
110
Nominal Voltage
(VDC)
5
6
9
12
24
48
110
Resistance
(Ω) ±10%
27
40
97
155
660
2560
10330
Must Operate
Voltage max.
(VDC)
3.75
4.50
6.75
9.00
18.00
36.00
82.50
Must Release
Voltage min.
(VDC)
0.5
0.6
0.9
1.2
2.4
4.8
11.0
CHARACTERISTICS
Operate Time
Release Time
Insulation Resistance
Dielectric Strength
Shock Resistance
Vibration Resistance
Power Consumption
Ambient Temperature
Weight
15 ms. typical
10 ms. typical
1000 MΩ, at 500VDC, 50%RH
1500 Vrms, 1 min. between open contacts
1500 Vrms, 1 min. between coil and contacts
10 g, 11ms, functional; 100 g, destructive
DA 1.5mm, 10 - 55 Hz,
1W, approx.
-55ºC to 85ºC operating
32 g, approx.
HG4138L
1/2
HG4138L
ORDERING DESIGNATION
Example:
Model
Coil Voltage Code
Contact Form
1H: 1 Form A; 1D: 1 Form B; 1Z: 1 Form C
Mounting Version
0: PCB
Version
1: Sealed; 2: Dust Cover
Thermal Class
Nil: UL Class B; F: UL Class F
HG4138L /
012 -
1Z
0
1
F

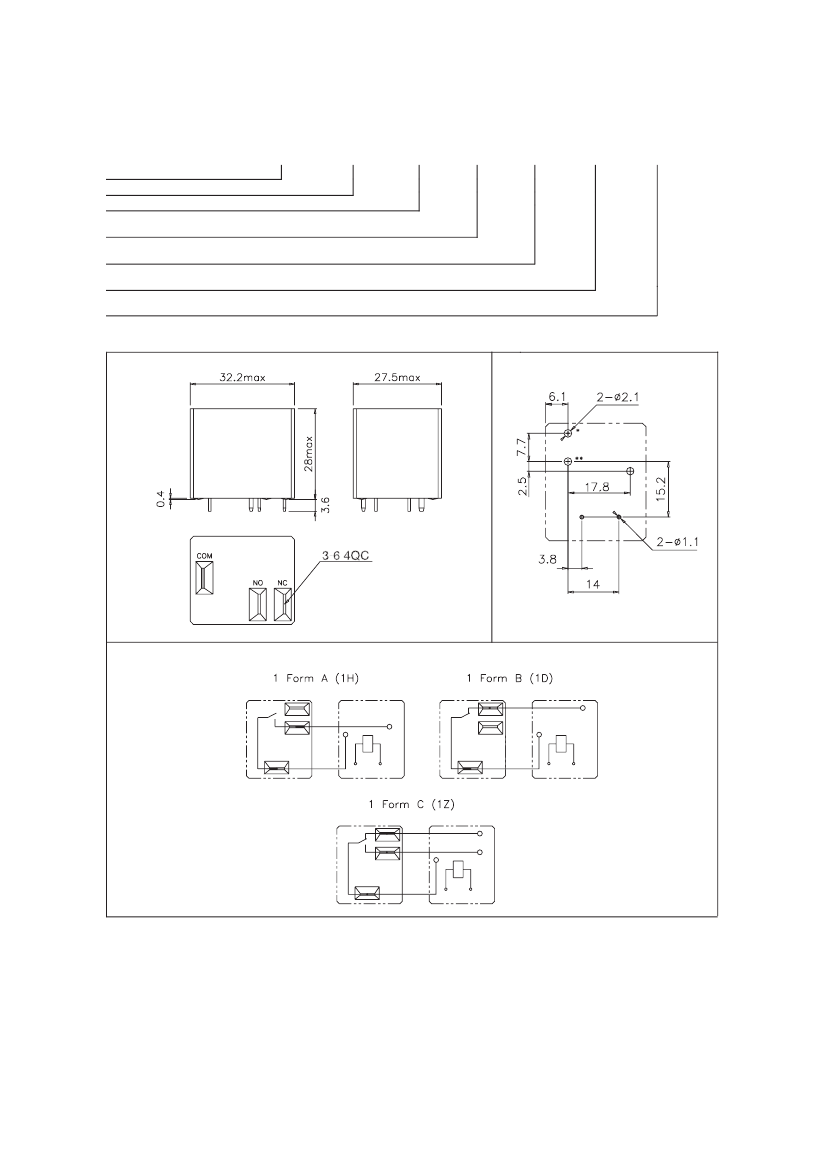

OVERALL DIMENSIONS, MOUNTING HOLES AND WIRING DIAGRAMS (mm)
Overall Dimensions
Mounting Holes (Bottom View)
Wiring Diagrams (Top View)
NOTES
1.
2.
3.
4.
5.
All parameters, unless otherwise specified, are measured at ambient temperature 23ºC.
In mounting holes drawing the * holes is not needed for 1 Form A, the ** hole is not needed for 1 Form B.
To exert optimum electrical life, please remove the tape of sealed version after cleaning process.
Custom-made services available with operational quantity. Please let us know your special requirements.
Specifications subject to change without prior notice.
HG4138L
2/2
