PLPQ2-6MM-FF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PLPQ2-6MM-FF

Preview

PLPQ2-6MM-FF: DescriptionLED Light Pipes 2mm Square Lens 6mm Rigid Light Pipe; CategoryLED optoelectronic/LED; File Size134KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric View All

PLPQ2-6MM-FF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLPQ2-6MM-FF	-	-	View	Buy Now

PLPQ2-6MM-FF Overview

LED Light Pipes 2mm Square Lens 6mm Rigid Light Pipe

PLPQ2-6MM-FF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Light Pipes
RoHS	Details
Product	Rigid Light Pipes
Color	Water Clear
LED Size	2 mm
Body Shape	Square Cuboid
Body Length	6 mm
Material	Polycarbonate (PC)
Packaging	Bulk
Dimensions	1.9 mm x 1.9 mm x 6 mm
Mounting Hole Size	2.03 mm x 2.03 mm
Mounting Style	Flush
NumOfPackaging	1
Panel Thickness Dimension	1.19 mm to 2.36 mm
Factory Pack Quantity	100
Vf - Forward Voltage	-
Water / Moisture Rating	Non Water Resistant

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

A

Engineering Release

B

Added Color Options, Sheet #2

07/31/15

01/25/16

J. C.

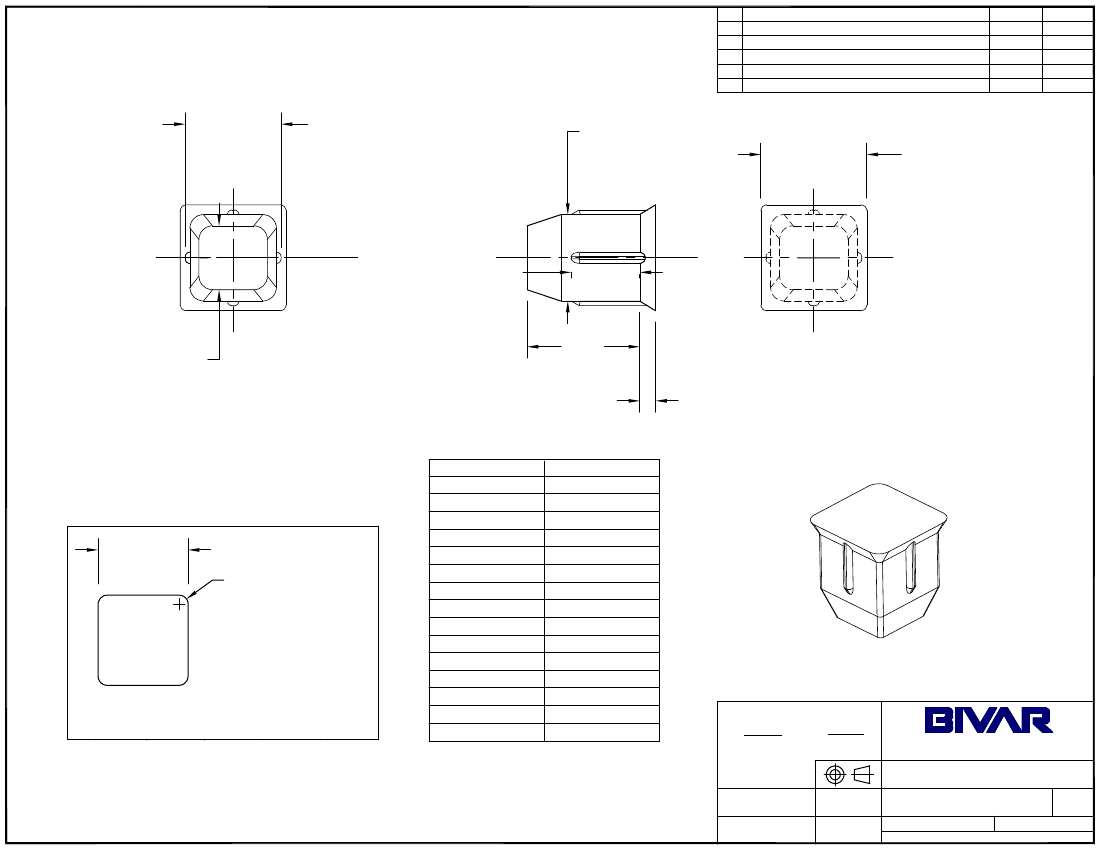

0.085 [2.2mm]

REF.

0.077 [1.9mm]

0.094 [2.4mm]

FLANGE

0.061 [1.5mm]

REF.

0.057 [1.4mm]

X

0.014 [0.4mm]

LIGHT PIPE

SQ. 0.080±0.001

R0.008 Max.

Recommended Mounting Hole

Panel Thickness: 0.047"- 0.093"

Part No.

PLPQ2-100-FF

PLPQ2-125-FF

PLPQ2-188-FF

PLPQ2-250-FF

PLPQ2-313-FF

PLPQ2-375-FF

PLPQ2-500-FF

PLPQ2-3MM-FF

PLPQ2-4MM-FF

PLPQ2-5MM-FF

PLPQ2-6MM-FF

PLPQ2-7MM-FF

PLPQ2-8MM-FF

PLPQ2-9MM-FF

PLPQ2-10MM-FF

X = Body Length

0.100 ( 2.5mm )

0.125 ( 3.2mm )

0.188 ( 4.8mm )

0.250 ( 6.4mm )

0.313 ( 7.9mm )

0.375 ( 9.5mm )

0.500 ( 12.7mm )

3mm ( 0.118" )

4mm ( 0.157" )

5mm ( 0.197" )

6mm ( 0.236" )

7mm ( 0.276" )

8mm ( 0.315" )

9mm ( 0.354" )

10mm ( 0.394" )

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

.X

.XX

.XXX

± .1

± .01

± .005

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

2. MATERIAL: POLYCARBONATE, 94V-0, CLEAR

1. GENERAL SPECIFICATIONS: BIVAR MOLDED COMPONENT SPECIFICATION BV00-E101

and BSMC-1001.

SQUARE LIGHT PIPE,

FLUSH MOUNT, 2mm

REVISION:

DESIGNED:

PART NO:

Brian Oliver

CHECKED:

04/24/15

DATE:

PLPQ2-XXX-FF

B

Alex Wright

CAGE CODE : 32559

SHEET #

1

OF

2

04/24/15

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
