PM5-A690G48V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PM5-A690G48V

Preview

PM5-A690G48V: DescriptionLED Panel Mount Indicators 7.4mm Smkd Lens Grn IP67/UL Mtl PMI; CategoryLED optoelectronic/LED; File Size140KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM5-A690G48V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5-A690G48V	-	-	View	Buy Now

PM5-A690G48V Overview

LED Panel Mount Indicators 7.4mm Smkd Lens Grn IP67/UL Mtl PMI

PM5-A690G48V Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Panel Mount Indicators
RoHS	Details
Illumination Color	Green
Mounting Hole Size	8.7 mm
Mounting Style	Nut and Washer
Termination Style	Screw Terminal
Lens Color/Style	Smoked
LED Size	7.4 mm
Packaging	Bulk
IP Rating	IP67
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

B

C

Engineering Release

Engineering Update w/o Changes

06/14/12

08/11/16

T. Y.

J. C.

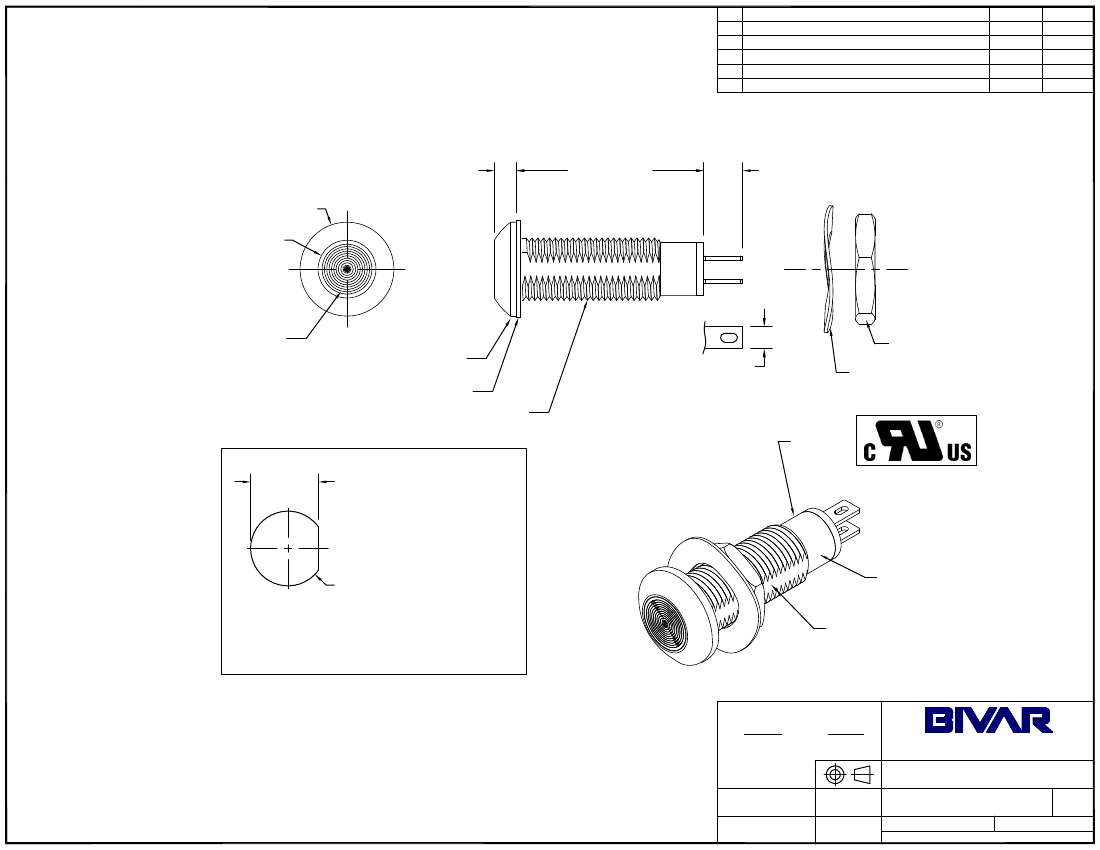

0.111 [2.8mm]

Ø.475 [Ø12.1mm]

Ø.293 [Ø7.4mm]

0.95 [24.1mm]

0.20 [5.0mm]

FRESNEL LENS

BLACK ANODIZED

ALUMINUM HOUSING

VITON SEALING RING

M8x1 THREAD

UL MARK

303 SS NUT

MOUNTING TORQUE 0.65 Nm

0.11 [2.8mm] TYP.

COPPER W/ SILVER FINISH

ZINC PLATED STEEL LOCK WASHER

0.344+0.004 8.7mm+0.1mm

-0.000

-0.0mm

[

]

BIVAR

8-48V

ac/dc

Ø.378+.008 Ø9.6mm+0.2mm

-.000

-0.0mm

RECOMMENDED MOUNTING HOLE

1.5 - 13.0mm PANEL THICKNESS

0.44Lb-ft (0.6N-m) TORQUE

[

Cat. No. 690

NOTES:

1. SEALED TO IP67 RATING

2. 8 ~ 48V AC/DC INPUT VOLTAGE

3. BI-POLAR OPERATION

4. ROHS COMPLIANT

5. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

6. INSERT VITON RING ON PANEL MOUNT ASSEMBLY PRIOR TO PANEL INSTALLATION

7. UL RECOGNIZED COMPONENT

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

IP67 / UL RATED PANEL

MOUNT INDICATOR

REVISION:

B. Oliver

CHECKED:

04/16/12

DATE:

PART NO:

PM5-A690X48V

CAGE CODE : 32559

C

T. Yin

04/16/12

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PM5-A690G48V Related Products

	PM5-A690G48V	PM5-A690R48V	PM5-A690B48V	PM5-A690W48V	PM5-A690Y48V
Description	LED Panel Mount Indicators 7.4mm Smkd Lens Grn IP67/UL Mtl PMI	LED Panel Mount Indicators 7.4mm Smkd Lens Red IP67/UL Mtl PMI	LED Panel Mount Indicators 7.4mm Smkd Lens Blue IP67/UL Mtl PMI	LED Panel Mount Indicators 7.4mm Smkd Lens Wht IP67/UL Mtl PMI	LED Panel Mount Indicators 7.4mm Smkd Lens Ylw IP67/UL Mtl PMI
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bivar	Bivar	Bivar	Bivar	Bivar
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators
RoHS	Details	Details	Details	Details	Details
Illumination Color	Green	Red	Blue	White	Yellow
Mounting Hole Size	8.7 mm	8.7 mm	8.7 mm	8.7 mm	8.7 mm
Mounting Style	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer	Nut and Washer
Termination Style	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Lens Color/Style	Smoked	Smoked	Smoked	Smoked	Smoked
LED Size	7.4 mm	7.4 mm	7.4 mm	7.4 mm	7.4 mm
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
IP Rating	IP67	IP67	IP67	IP67	IP67
Factory Pack Quantity	100	100	100	100	100
