PM53-KNYGW120 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> PM53-KNYGW120

Preview

PM53-KNYGW120: DescriptionLED Panel Mount Indicators Yellow/Green 5mm Quick Mnt Panel Ind; CategoryLED optoelectronic/LED; File Size188KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

PM53-KNYGW120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM53-KNYGW120	-	-	View	Buy Now

PM53-KNYGW120 Overview

LED Panel Mount Indicators Yellow/Green 5mm Quick Mnt Panel Ind

PM53-KNYGW120 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bivar
Product Category	LED Panel Mount Indicators
RoHS	Details
Illumination Color	Green, Yellow
Mounting Hole Size	10.3 mm
Mounting Style	Quick Nut
Termination Style	Wire
Lens Color/Style	Non-Tinted, Diffused
LED Size	5 mm
Packaging	Bulk
NumOfPackaging	1
Factory Pack Quantity	100

Preview

Download Datasheet

View All

REV.

DESCRIPTION

DATE

APPROVED

A

Engineering Release

B

Added 5BC-3-A/G Spec on Page 2

04/29/14

08/22/16

J. C.

XX.X

+0.20

-0.05

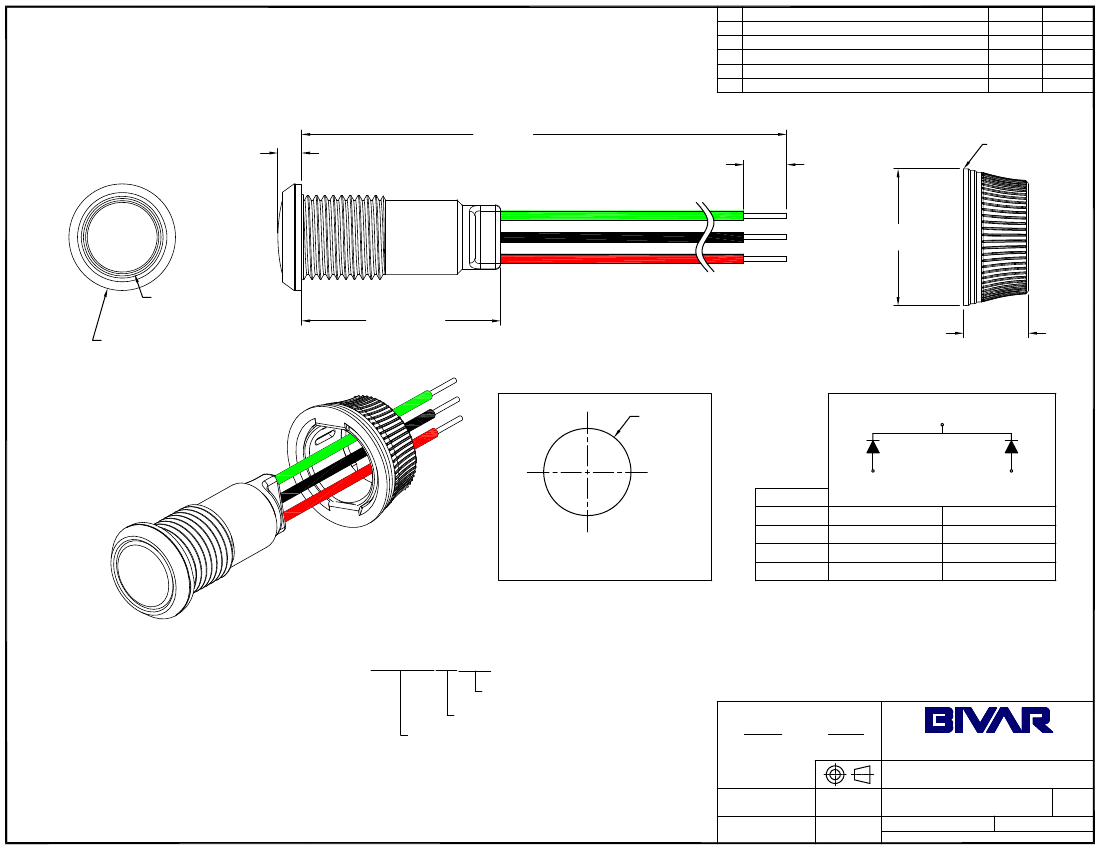

0.11 [2.8mm]

0.20 [5.1mm]

Stripped & Tinned

PM5 Quick Nut

(3)

(2)

(1)

Ø0.36 [Ø9.1mm]

LENS DIAMETER

0.93 [23.5mm]

Ø0.50 [Ø12.6mm]

FLANGE DIAMETER

0.30 [7.6mm]

REF.

0.64 [16.1mm]

REF.

Ø.406+.003

-.002

(2) Common Cathode

NOTE: LENS SEALED

TO HOUSING

NOTE: QUICK NUT

INSERT PREINSTALLED

Recommended Mounting Hole

1.5mm-6mm Panel Thickness

LED P/N

5BC-3

5BC-3-Y/G

5BC-3-R/Y

5BC-3-A/G

(1) Anode

Red

Yellow

Red

Amber

(3) Anode

Green

Yellow

Green

NOTE: SEAL PREINSTALLED

EXAMPLE:

PM53-KNBCW6.5

Wire Length in 0.5" Increments

LED Colors

Series

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

®

NOTES:

1. ROHS COMPLIANT

2. MOUNTING HARDWARE SHIPPED NON-ASSEMBLED

.X

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

DATE:

TITLE:

Quick-Mount Panel Mount

Indicator w/ Wires, 3-Lead Bi-Color

REVISION:

PART NO:

M. Doan

CHECKED:

04/21/14

DATE:

PM53-KNXXWXX.X

CAGE CODE : 32559

B

B. Oliver

04/21/14

SHEET #

1

OF

2

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

PM53-KNYGW120 Related Products

	PM53-KNYGW120	PM53-KNBCW120	PM53-KNRYW120
Description	LED Panel Mount Indicators Yellow/Green 5mm Quick Mnt Panel Ind	LED Panel Mount Indicators Red/Green 5mm Quick Mnt Panel Ind	LED Panel Mount Indicators Red/Yellow 5mm Quick Mnt Panel Ind
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Bivar	Bivar	Bivar
Product Category	LED Panel Mount Indicators	LED Panel Mount Indicators	LED Panel Mount Indicators
RoHS	Details	Details	Details
Illumination Color	Green, Yellow	Green, Red	Red, Yellow
Mounting Hole Size	10.3 mm	10.3 mm	10.3 mm
Mounting Style	Quick Nut	Quick Nut	Quick Nut
Termination Style	Wire	Wire	Wire
Lens Color/Style	Non-Tinted, Diffused	Non-Tinted, Diffused	Non-Tinted, Diffused
LED Size	5 mm	5 mm	5 mm
Packaging	Bulk	Bulk	Bulk
Factory Pack Quantity	100	100	100
NumOfPackaging	1	1	-
