PC815XJ0000F Series
PC815XJ0000F
Series
∗
DIP 4pin
Darlington Phototransistor Output,
Photocoupler
4-channel package type is also available.
(model No.
PC845XJ0000F Series)
■
Description
PC815XJ0000F Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 4 pin DIP.
Input-output isolation voltage(rms) is 5.0 kV.
CTR is MIN. 600% at input current of 1.0 mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
fi
le No. E64380 (as model No.
PC815)
2. Approved by VDE, DIN EN60747-5-2
(∗)
(as an
option),
fi
le No. 40008087 (as model No.
PC815)
3. Package resin : UL
fl
ammability grade (94V-0))
(∗)
DIN EN60747-5-2 : successor standard of DIN VDE0884.
■
Features
1. 4 pin DIP package
2. Double transfer mold package
(Ideal for Flow Soldering)
3. Darlington phototransisitor output (CTR : MIN. 600%
at I
F
=1.0
mA, V
CE
=2
V
4. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
5. Lead-free and RoHS directive compliant
■
Applications
1. Home appliances
2. Programmable controller
3. Signal transmission between circuits of different
potentials and impedances
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A08401EN
Date Sep. 1. 2006
© SHARP Corporation
PC815XJ0000F Series
■
Internal Connection Diagram
1
1
4
2
3
2
3
4
Anode
Cathode
Emitter
Collector
■

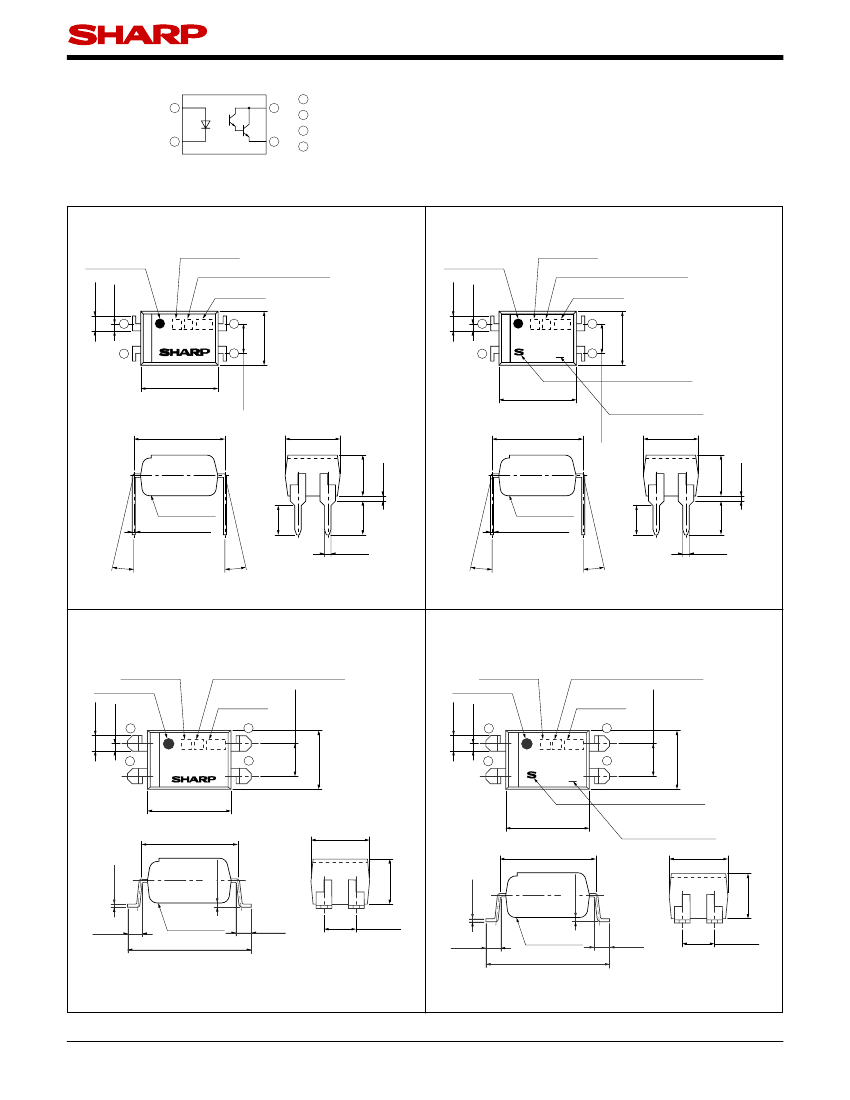

Outline Dimensions
1. Through-Hole [ex.
PC815XJ0000F]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Date code
(Unit : mm)
2. Through-Hole (VDE option) [ex.
PC815XYJ000F]
Anode mark
1.2
±0.3
0.6
±0.2
Rank mark
Factory identification mark
Date code
1
4
4.58
±0.30
1
4
PC815
2
3
PC815
2
4
6.5
±0.3
3
6.5
±0.3
2.54
±0.25
7.62
±0.30
4.58
±0.30
0.5
TYP.
3.5
±0.5
2.54
±0.25
4.58
±0.30
SHARP mark "S"
VDE
Indenfication mark
7.62
±0.30
4.58
±0.30
0.5
TYP.
3.5
±0.5
1.0
+0.4
−0.0
2.54
±0.25
Sheet No.: D2-A08401EN
3.0
±0.5
0.26
θ
±0.10
0.26
±0.10
θ
θ
: 0 to 13˚
θ
0.5
±0.1
θ
θ
: 0 to 13˚
2.7
±0.5
2.7
±0.5
Epoxy resin
Epoxy resin
0.5
±0.1
Product mass : approx. 0.23g
Product mass : approx. 0.23g
3. SMT Gullwing Lead-Form
[ex.
PC815XPJ000F]
2.54
±0.25
Rank mark
Anode mark
Factory identification mark
4. SMT Gullwing Lead-Form (VDE option)
[ex.
PC815XPYJ00F]
2.54
±0.25
Rank mark
Anode mark
Factory identification mark
Date code
1
4
1.2
±0.3
0.6
±0.2
1.2
±0.3
1
4
4.58
±0.30
0.6
±0.2
Date code
2
PC815
6.5
±0.3
7.62
±0.30
3
2
PC815
4
6.5
±0.3
7.62
±0.30
3
SHARP mark "S"
4.58
±0.30
VDE
Indenfication mark
4.58
±0.30
4.58
±0.30
0.26
±0.10
0.35
±0.25
3.5
±0.50
1.0
+0.4
−0.0
Epoxy resin
10.0
+0.0
−0.5
1.0
+0.4
−0.0
2.54
±0.25
1.0
+0.4
−0.0
Epoxy resin
10.0
+0.0
−0.5
Product mass : approx. 0.22g
Product mass : approx. 0.22g
Plating material : SnCu (Cu : TYP. 2%)
2
0.26
±0.10
0.35
±0.25
3.0
±0.5
3.5
±0.5
PC815XJ0000F Series
Date code (2 digit)
1st digit
Year of production
Mark
A.D.
A
2002
B
2003
C
2004
D
2005
E
2006
F
2007
H
2008
J
2009
K
2010
L
2011
M
2012
N
:
2nd digit
Month of production
Month
Mark
January
1
February
2
March
3
April
4
May
5
June
6
July
7
August
8
September
9
October
O
November
N
December
D
A.D.
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
Mark
P
R
S
T
U
V
W
X
A
B
C
:
repeats in a 20 year cycle
Factory identification mark
Factory identification Mark
no mark
Japan
Indonesia
China
* This factory marking is for identification purpose only.
Please contact the local SHARP sales representative to see the actural status of the
production.
Country of origin
Rank mark
With or without.
Sheet No.: D2-A08401EN
3
PC815XJ0000F Series
■
Absolute Maximum Ratings
Parameter
Forward current
*1
Peak forward current
Input
Reverse voltage
Power dissipation
Collector-emitter voltage
Emitter-collector voltage
Output
Collector current
Collector power dissipation
Total power dissipation
Operating temperature
Storage temperature
*2
Isolation voltage
*3
Soldering temperature
*1 Pulse width≤100ms, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1minute, f=60Hz
*3 For 10s
Symbol
I
F
I
FM
V
R
P
V
CEO
V
ECO
I
C
P
C
P
tot
T
opr
T
stg
V
iso(rms)
T
sol
(T
a
=
25˚C)
Rating
Unit
50
mA
1
A
6
V
70
mW
35
V
6
V
80
mA
150
mW
200
mW
˚C
−
30 to
+
100
˚C
−
55 to
+
125
5
kV
270
˚C
■
Electro-optical Characteristics
Parameter
Forward voltage
Peak forward voltage
Input
Reverse current
Terminal capacitance
Collector dark current
Output Collector-emitter breakdown voltage
Emitter-collector breakdown voltage
Current transfer ratio
Collector-emitter saturation voltage
Transfer Isolation resistance
charac- Floating capacitance
teristics Cut-off frequency
Rise time
Response time
Fall time
Symbol
V
F
V
FM
I
R
C
t
I
CEO
BV
CEO
BV
ECO
I
C
V
CE(sat)
R
ISO
C
f
f
C
t
r
t
f
Condition
I
F
=
20mA
I
FM
=
0.5V
V
R
=
4V
V
=
0, f
=
1kHz
V
CE
=
10V, I
F
=
0
I
C
=
0.1mA, I
F
=
0
I
E
=
10
μ
A, I
F
=
0
I
F
=
1mA, V
CE
=
2V
I
F
=
20mA, I
C
=
5mA
DC500V, 40 to 60%RH
V
=
0, f
=
1MHz
V
CE
=
2V, I
C
=
2mA, R
L
=
100
Ω
,
−
3dB
V
CE
=
2V, I
C
=
10mA, R
L
=
100
Ω
MIN.
−
−
−
−
−
35
6
6.0
−
5
×
10
10
−
1
−
−
TYP.
1.2
−
−
30
−
−
−
16.0
0.8
1
×
10
11
0.6
6
60
53
MAX.
1.4
3.0
10
250
1 000
−
−
75.0
1.0
−
1.0
−
300
250
(T
a
=
25˚C)
Unit
V
V
μ
A
pF
nA
V
V
mA
V
Ω
pF
kHz
μ
s
μ
s
Sheet No.: D2-A08401EN
4
PC815XJ0000F Series
■
Model Line-up
Through-Hole
SMT Gullwing Form
Sleeve
Taping
Package
100pcs/sleeve
2 000pcs/reel
DIN EN60747-5-2
Approved
Approved
−
−
Model No.
PC815XJ0000F PC815XYJ000F PC815XPJ000F PC815XPYJ00F
Lead Form
Please contact a local SHARP sales representative to inquire about production status.
Sheet No.: D2-A08401EN
