OPL530, OPL531, OPL535, OPL536, OPL550,
OPL551, OPL560, OPL561, OPL562, OPL563
Features:
Choice of four output options in low-cost side-looking package
Choice of two sensitivity options (OPL560/561/562/563)
High noise immunity
Direct TTL/LSTTL CMOS interface
Data rates to 250 kBaud for all except OPL560 series (200 kBaud)
Low power consumption
RoHS
Description:
All components in this series include a photodiode, amplifier, voltage regulator, Schmitt trigger and
NPN output transistor on a single silicon chip.
OPL560
chips also include a voltage regulator on the chip. All
devices in the series have a Photologic® chip that is encapsulated in a molded plastic side-looking package with
an integral lens (recessed integral lens for OPL535 and OPL536). This packaging provides enhanced optical
coupling, combined with mechanical protection. The hysteresis characteristics of the Schmitt trigger on each
device offers high immunity to noise on input and V
CC
.
OPL530, OPL531, OPL535
and
OPL536
include a 10 K Ω pull-up resistor (R
L
) from output to V
CC
. These
components exhibit very stable performance over supply voltages ranging from 4.5 V to 16 V and a wide range of
irradiance levels.
OPL550
and
OPL551
devices feature TTL/LSTTL compatible logic level output which can drive
up to 8 TTL loads without additional circuitry and medium-speed data rates to 250 kBaud, with typical rise and fall
times of 25 nanoseconds.
OPL560, OPL561, OPL562
and
OPL563
devices feature TTL/LSTTL compatible logic
level output which can drive up to 10 TTL loads over supply voltages ranging from 4.5 V to 16 V.
OPL530, OPL531, OPL550, OPL551, OPL560, OPL561, OPL562
and
OPL563
are mechanically and spectrally
matched to OP140 and OP240 LEDs.
OPL535
and
OPL536
are mechanically and spectrally matched to OP145
and OP245 series LEDs.
Applications:
Non-contact reflective object sensor, Assembly line automation, Machine automation, Machine safety, End of travel
sensor, Door sensor
Base Part Number
OPL530, OPL530-OC
OPL531A, OPL531-OCA
OPL535A, OPL535B
OPL536A, OPL536-OC, OPL536-OCA
OPL550, OPL550A, OPL550-OC, OPL550-OCA
OPL551A, OPL551-OC, OPL551-OCA
OPL560, OPL560A, OPL560-OCA
OPL561, OPL561-OC, OPL561-OCA
OPL562, OPL562A, OPL562-OC, OPL562-OCA
OPL563, OPL563-OC, OPL563-OCA
Package
Output Type - with Light
Internal 10K - High
Internal 10K - Low
Internal 10K - High
Internal 10K - Low
Totem Pole - High
Totem Pole - Low
Input Power Range
(mW/cm
2
) [Min/Max]
-
A
B
External Lens
Recessed
Lens
0.08/0.40
0.08/0.25
0.20/0.40
0.25/2.4
0.25/2.5
0.09/0.55
0.25/1.4
0.25/1.5
0.09/0.36
N/A
External Lens
Totem Pole - High
Totem Pole - Low
Totem Pole - High
Totem Pole - Low
N/A
0.025/0.23
0.025/0.14
N/A
OC = Open Collector Output
General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
© TT electronics plc
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com
Issue C
09/2016
Page 1
OPL530, OPL531, OPL535, OPL536, OPL550,
OPL551, OPL560, OPL561, OPL562, OPL563

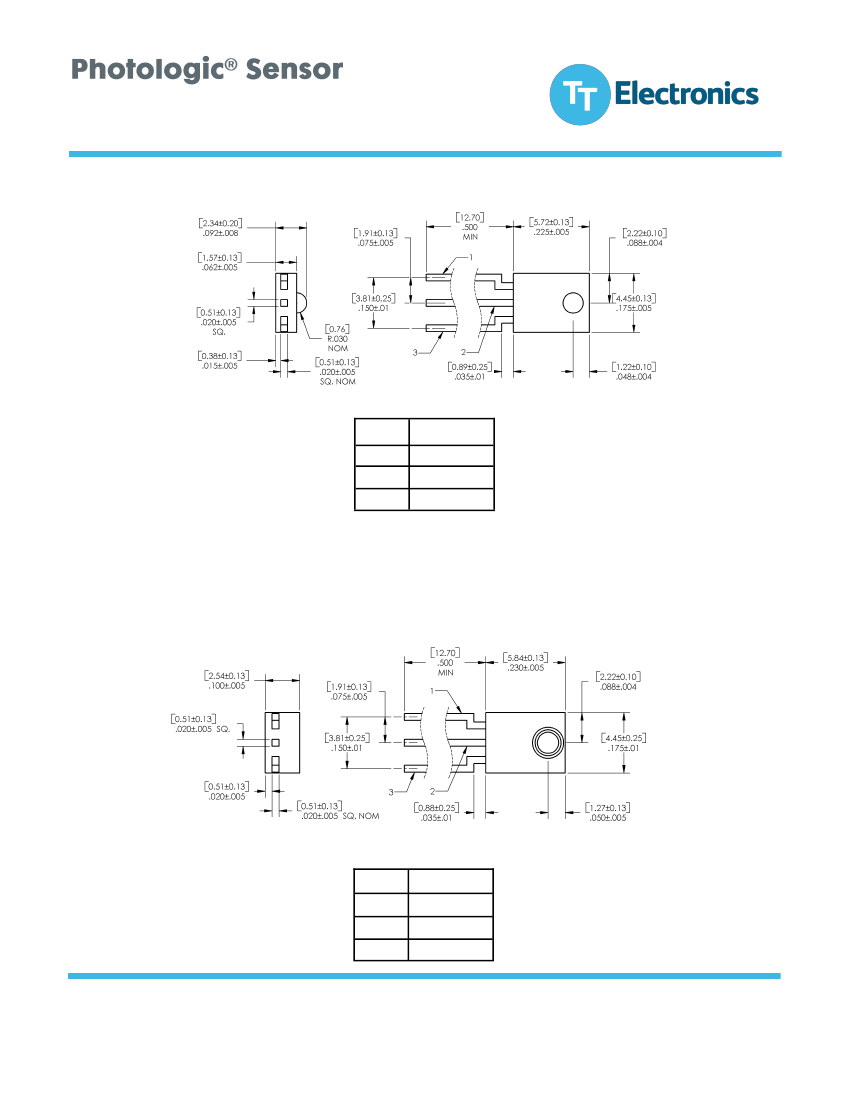

OPL530, OPL550, OPL560 Series
DIMENSIONS ARE IN:
[ MILLIMETERS]
INCHES
Pin #
1
2
3
Sensor
Ground
Output
V
CC
Pin #
1
2
3
Sensor
Ground
Output
Vcc
OPL535, OPL536 Series
DIMENSIONS ARE IN:
[ MILLIMETERS]
INCHES
Pin #
1
2
3
Sensor
Ground
Output
V
CC
Pin #
1
2
3
Sensor
Ground
Output
Vcc
General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
© TT electronics plc
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com
Issue C
09/2016
Page 2
OPL530, OPL531, OPL535, OPL536, OPL550,
OPL551, OPL560, OPL561, OPL562, OPL563

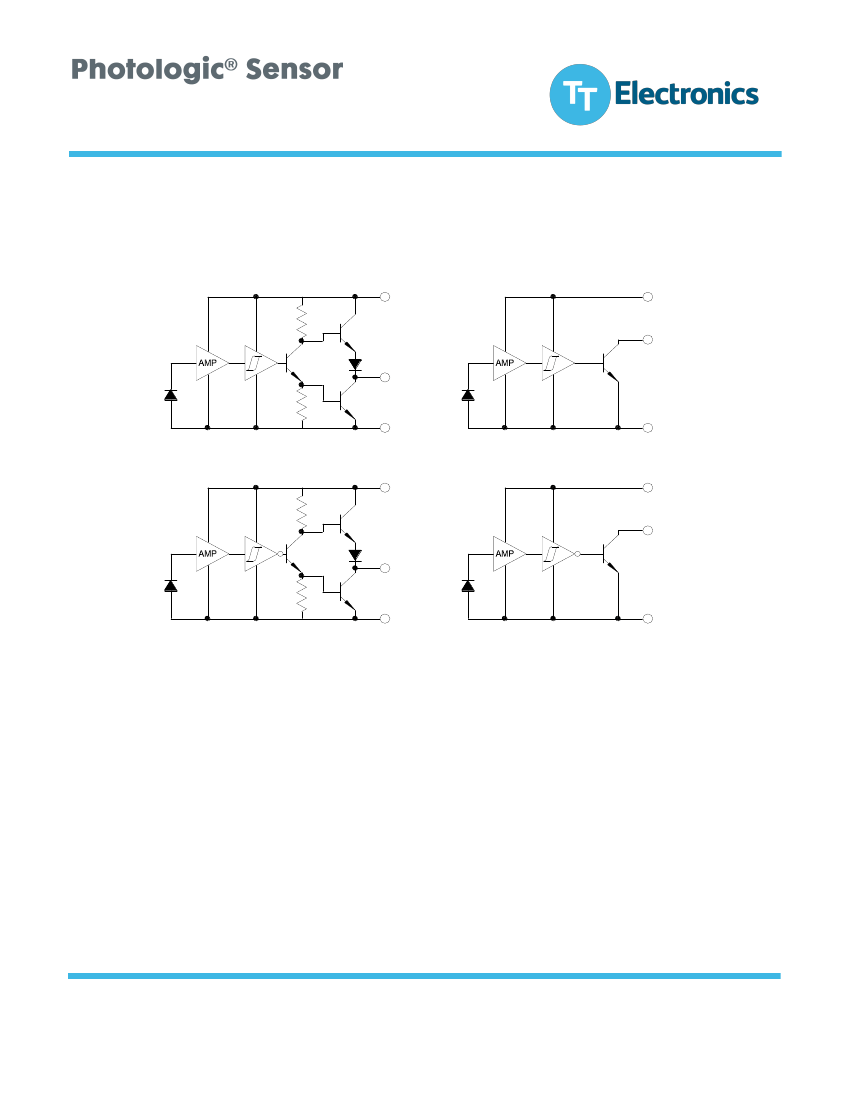

OPL530, OPL531, OPL535, OPL536, OPL550, OPL551, OPL560, OPL561, OPL562, OPL563 (-OC, -OCA, -OCB)
OPL550, OPL550A, OPL551A,
OPL560, OPL560A, OPL561, OPL562, OPL562A, OPL563, OPL563A
OPL550/550A/560/560A/562/562A Totem-Pole
V
CC
OPL530/535/550/560/562 (-OC, -OCA, -OCB) Open-Collector
V
CC
OUT
OUT
GND
OPL 551A/561/563/563A Inverted Totem-Pole
V
CC
GND
OPL 531/536/551/561/563 (-OC, -OCA, -OCB) Inverted Open-Collector
V
CC
OUT
OUT
GND
GND
General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
© TT electronics plc
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com
Issue C
09/2016
Page 3
OPL530, OPL531, OPL535, OPL536, OPL550,
OPL551, OPL560, OPL561, OPL562, OPL563

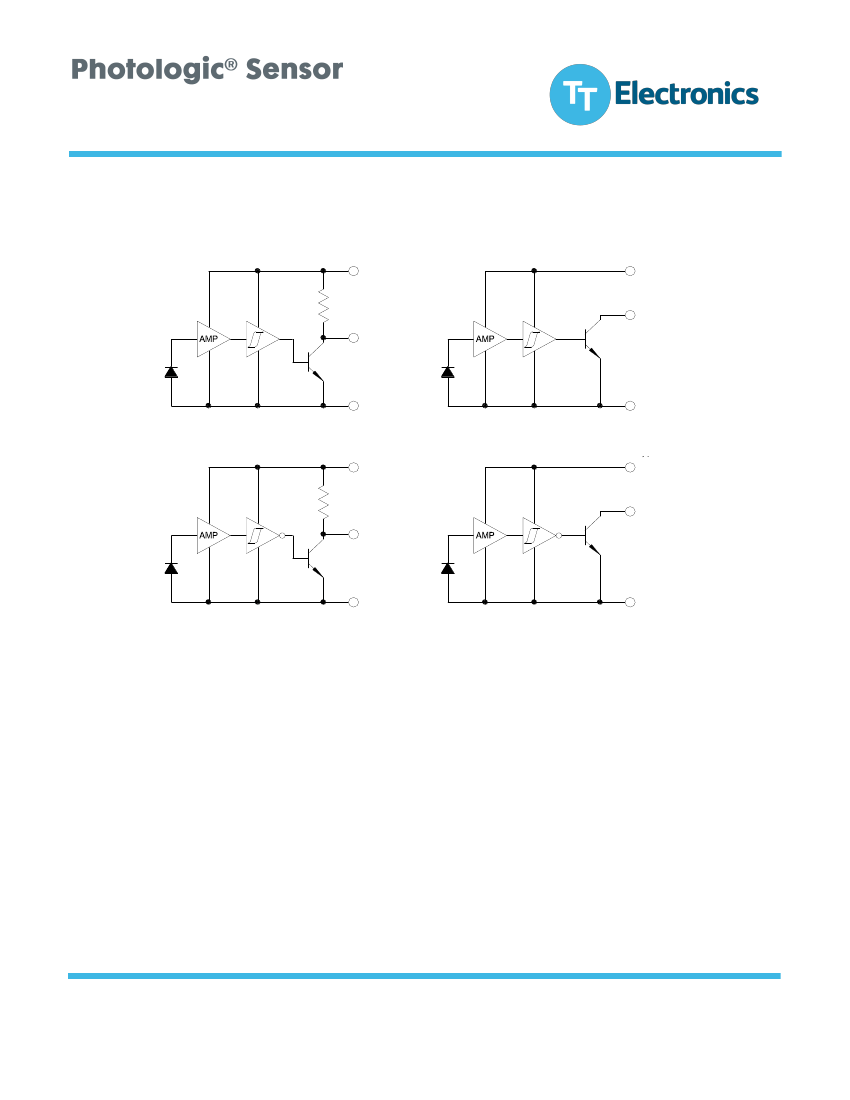

OPL530, OPL531A,
OPL535A, OPL535B, OPL536, OPL536A
OPL530, OPL535A/535B 10K Pull-Up
V
CC
OPL531A, OPL536/536A Inverted 10K Pull-Up
V
CC
OUT
OUT
GND
GND
V
CC
V
CC
OUT
OUT
GND
GND
General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
© TT electronics plc
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com
Issue C
09/2016
Page 4
OPL530, OPL531, OPL535, OPL536, OPL550,
OPL551, OPL560, OPL561, OPL562, OPL563
Absolute Maximum Ratings
(T
A
= 25° C unless otherwise noted)
Input Diode
Supply Voltage (V
CC
)
OPL530, OPL530-OC, OPL536-OC,
OPL550
OPL560, OPL561, OPL562, OPL563
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature [1/16 inch (1.6mm) from the case for 5 sec. with soldering iron]
Sourcing Current
OPL560, OPL561, OPL562, OPL563
Power Dissipation
OPL530, OPL530-OC, OPL536-OC
OPL550, OPL560, OPL561, OPL562, OPL563
Sinking Current
OPL530, OPL530-OC, OPL536-OC
OPL550
OPL560, OPL561, OPL562, OPL563
Voltage at Output Lead
(4)
OPL530, OPL530-OC, OPL536-OC
OPL550-OC, OPL551-OC
OPL561-OC, OPL562-OC, OPL563-OC
Duration of Output Short to V
CC
or Ground
OP550
Duration of Output Short to V
CC
OPL550-OC, OPL551-OC
OPL560, OPL561, OPL562, OPL563, OPL561-OC, OPL562-OC, OPL563-OC
Low Level Output Current
OPL550, OPL551 Series
High Level Output Current
OPL550, OPL551 Series
Irradiance
OPL550, OPL551 Series
OPL560, OPL561, OPL561-OC
OPL562, OPL562-OC, OPL563, OPL563-OC
18 V
10 V
18 V
-40° C to + 85° C
-40° C to + 100° C
260°C
10 mA
90 mW
200 mW
(2)
50 mA
-
50 mA
35 V
35 V
35 V
1 second
1 second
1 second
16 mA
1 mA
10 mW/cm
2
9 mW/cm
3 mW/cm
2
Notes:
(1) RMA flux is recommended. Duration can be extended to 10 sec. max. when flow soldering. For OPL530, OPL530-OC, OPL531, OPL531-OC,
OPL535, OPL535-OC, OPL536 and OPL536-OC, a maximum of 20 grams force may be applied to leads while at soldering temperatures.
(2) Derate linearly 2.67 mW/°C above 70° C for OPL530, OPL530-OC, OPL531, OPL531-OC, OPL535, OPL535-OC, OPL536 and OPL536-OC. De-
rate linearly 2.5 mW/° C above 25° C for all devices in the OPL550, OPL551, OPL560, OPL561, OPL562 and OPL563 series.
(3) Irradiance measurements are made with
λi
= 935 nm.
(4) This applies to OC versions only. For I
CC
on pull-up versions, add V
CC
/10 KΩ.
General Note
TT Electronics reserves the right to make changes in product specification without
notice or liability. All information is subject to TT Electronics’ own data and is
considered accurate at time of going to print.
© TT electronics plc
OPTEK Technology, Inc.
1645 Wallace Drive, Carrollton, TX 75006|Ph: +1 972 323 2200
www.optekinc.com | www.ttelectronics.com
Issue C
09/2016
Page 5
