586-2202-202F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 586-2202-202F

586-2202-202F: DescriptionLED Replacement Lamps - Based LEDs WEDGE BASED T3 1/4 GRN, 12V; CategoryLED optoelectronic/LED photoelectric; File Size108KB，3 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric View All

586-2202-202F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	586-2202-202F	-	-	View	Buy Now

586-2202-202F Overview

LED Replacement Lamps - Based LEDs WEDGE BASED T3 1/4 GRN, 12V

586-2202-202F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	compliant
color	GREEN
Configuration	SINGLE
Maximum forward current	0.019 A
Nominal luminous intensity	380.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	24 mm
method of packing	BULK
shape	CYLINDRICAL
surface mount	NO
T code	T-3 1/4
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES / BENEFITS

RoHS Compliant

Unique multi-LED design provide superior illumination and

ability to mix colors

True non-polarized design

Incorporating AlInGaP and InGaN technology

Mounts directly into industry standard socket

High brightness with low current draw - uses up to 90% less

energy than incandescent

Long Life - up to 100K hours

No heat generated

Resistant to shock and vibration

Colors include red, green, yellow, blue and white, as well as

white/yellow and white/orange combinations

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

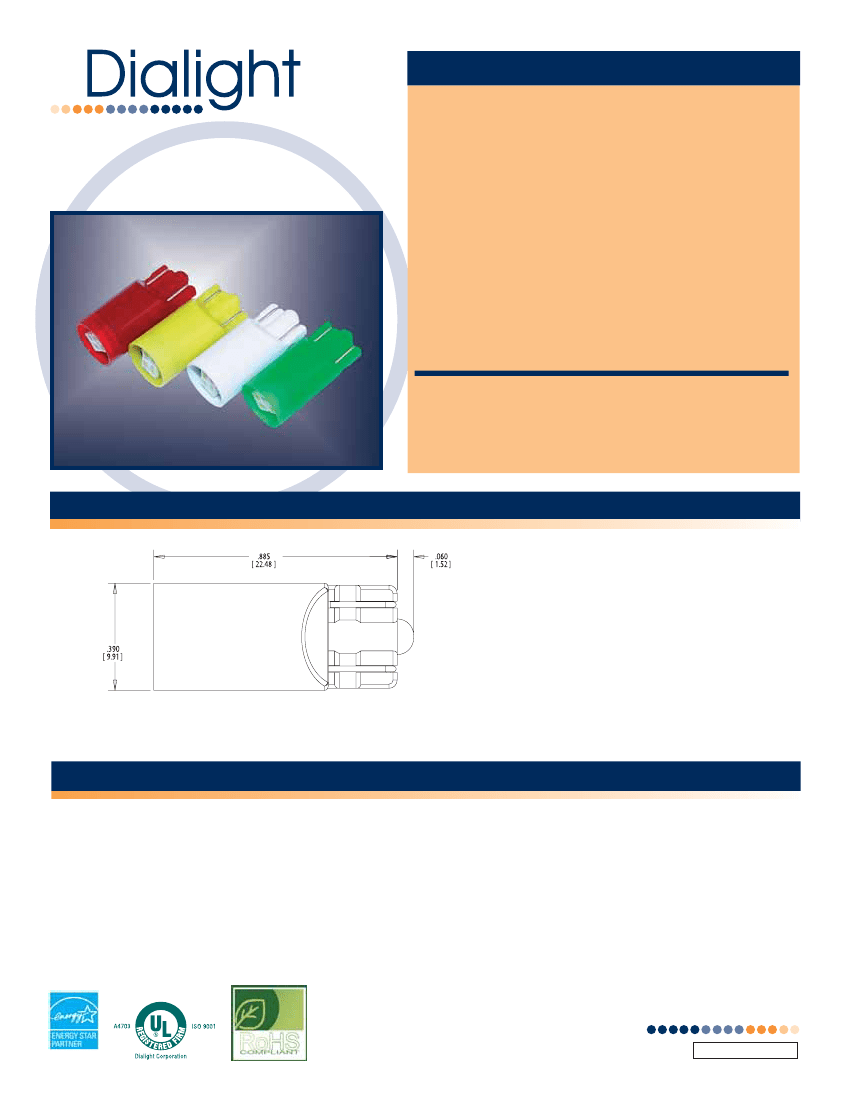

586 Series BASED LED

T3 1/4 WEDGE (T10)

SPECIFICATIONS

Operating Voltages: 6,12,14 and 24 VDC

Non-polarized

Operating temperature: -30

to +

Storage temperature: -40

to +

100

Replaces incandescent lamp numbers*: 159,

259, 444, 447, 555, 124, 158, 161, 168, 193

194, 658, 184, 3-505, 3-507

Measurements are typical

Dimensions are inches [mm]

*See Dialight’s Incandescent lamp/based LED

cross reference for a complete listing

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.

If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,

which will optimize the light output.

Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL586K001_C
