XMLEZW-00-0000-0B0HU330F: DescriptionHigh Power LEDs - White Easywhite 320lm XLamp XML LED; CategoryLED optoelectronic/LED; File Size1MB，22 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

XMLEZW-00-0000-0B0HU330F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XMLEZW-00-0000-0B0HU330F	-	-	View	Buy Now

XMLEZW-00-0000-0B0HU330F Overview

High Power LEDs - White Easywhite 320lm XLamp XML LED

XMLEZW-00-0000-0B0HU330F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Cree
Product Category	High Power LEDs - White
RoHS	Details
Package / Case	SMD-2
Illumination Color	White (Warm White)
Wavelength/Color Temperature	3000 K
Luminous Intensity	-
Luminous Flux/Radiant Flux	320 lm
Color Rendering Index - CRI	80
Viewing Angle	115 deg
Lens Color/Style	Water Clear
If - Forward Current	700 mA
Vf - Forward Voltage	6 V
Power Rating	13 W
Mounting Style	SMD/SMT
Length	5 mm
Width	5 mm
Height	3.02 mm
Maximum Operating Temperature	-
Minimum Operating Temperature	-
Packaging	Reel
Features	-
Type	XLamp XM-L EasyWhite LEDs
LED Size	5 mm x 5 mm x 3.02 mm
Lens Shape	Dome
Color Temperature	3000 K
Lens Dimensions	4.52 mm
NumOfPackaging	1
Factory Pack Quantity	1000
Vr - Reverse Voltage	5 V
Unit Weight	0.007055 oz

Preview

Download Datasheet

View All

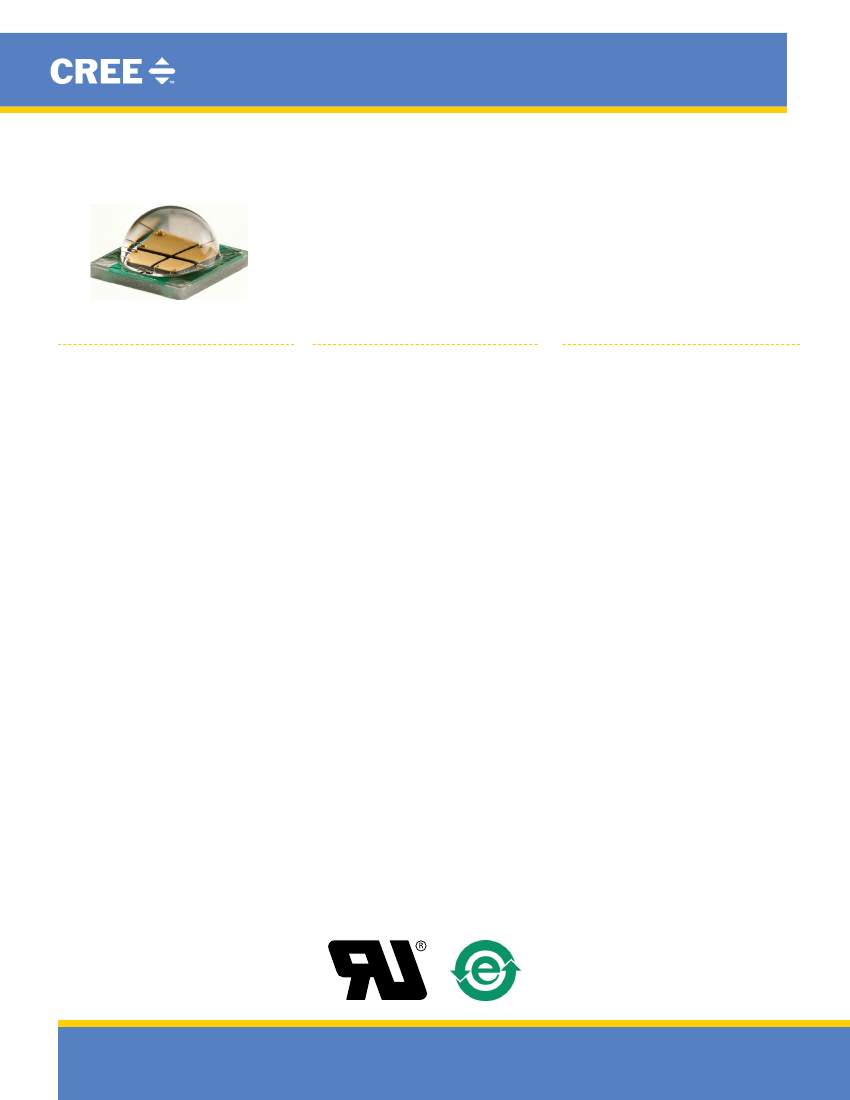

CLD-DS38 Rev 8G

Product family data sheet

Cree

XLamp

XM-L™ EasyWhite

LEDs

ProDuCt DEsCriPtion

The XLamp

XM-L™ easyWhite

(eZW)

LeD eliminates chromaticity binning, and

enables luminaire and bulb manufacturers

to deliver the consistent color and high

efficacy light output of a multi‑die LED in

the compact XM-L footprint. XLamp XM-L

easyWhite LeDs can reduce LeD-to-LeD

color variation to within a 2-step MacAdam

ellipse, 94% smaller than the total area of

the corresponding ANSI C78.377 color

region.

The XLamp XM-L easyWhite LeD is the

perfect choice for lighting applications

where moderate to high luminous flux

output is required from a single, small

point

source.

Example

applications

include: LED retrofit bulbs, commercial/

retail display spotlights, and other indoor

general-illumination applications.

FEAturEs

•

Available in 4-step and 2-step

EasyWhite bins at 2700 K, 3000 K,

3500 K, 4000 K, 5000 K CCT

•

Wide range of operating current – up

to 2 A @ 6 V

85 °C binning and characterization

Available in 6‑V and 12‑V versions

Low thermal resistance: 2.5 °C/W

Wide viewing angle: 115°

Wide variety of CRI choices: standard

CRI as well as 80-, 85-, 90-minimum

CRI

•

electrically neutral thermal path

Unlimited floor life at ≤ 30 ºC/85%

Reflow solderable ‑ JEDEC

J‑STD‑020C

RoHS and ReACh compliant

recognized component

(E349212)

tAbLE oF ContEnts

Characteristics ...........................................2

Flux Characteristics, Standard Order

Codes and Bins, 6‑Volt XM‑L EZW

............3

Flux Characteristics, Standard Order

Codes and Bins, 12‑Volt XM‑L EZW

..........6

Relative Spectral Power Distribution ........9

Relative Flux vs. Junction Temperature

....9

electrical Characteristics .........................10

Relative Flux vs. Current

..........................11

Relative Chromaticity vs. Current and

Temperature .............................................12

Typical Spatial Distribution......................13

Thermal Design ........................................13

Performance Groups – Brightness

.........14

Performance Groups – Chromaticity

......14

Cree easyWhite

Bins Plotted on the

1931 CIE Color Space

..............................15

Cree ANSI White Bins Plotted on the

1931 CIE Color Space

..............................16

Bin and Order Code Formats

...................16

Reflow Soldering Characteristics

............17

Notes ........................................................18

Mechanical Dimensions ..........................20

Tape and Reel ...........................................21

Packaging .................................................22

WWW.CREE.CoM/XLAMp

, XLamp

and

EasyWhite

are registered trademarks and the Cree logo and XM-L™ are trademarks of Cree, Inc. UL

and the UR logo are registered trademarks of UL

LLC.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300
