20.32mm (0.8INCH) SINGLE DIGIT NUMERIC
DISPLAY
Part Number: SA08-12CGKWA
Green
Features
0.8 inch digit height.
Excellent character appearance.
High light output.
Easy mounting on P.C. boards or sockets.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The Green source color devices are made with AlGaInP on
GaAs substrate Light Emitting Diode.

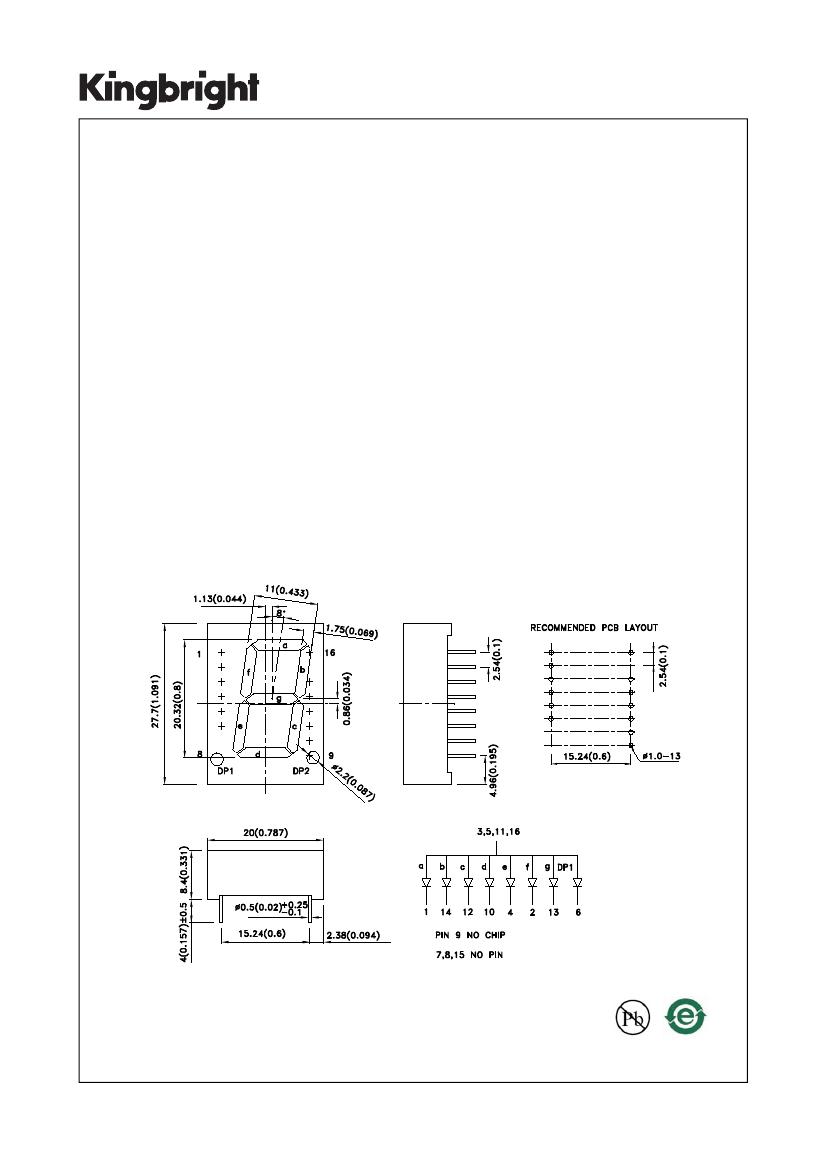

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAM8402
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: JAN/20/2013
DRAWN: Y.Liu
PAGE: 1 OF 6
ERP: 1301003067
Selection Guide
Iv (ucd) [1]
@ 10mA
Part No.
Dice
Lens Type
Min.
14000
SA08-12CGKWA
Green (AlGaInP)
White Diffused
*3600
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
*
Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
25000
*8700
Common Anode,Lt
HandDecimal.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
574
570
20
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Green
75
30
150
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAM8402
APPROVED: WYNEC
REV NO: V.1A
CHECKED: Joe Lee
DATE: JAN/20/2013
DRAWN: Y.Liu
PAGE: 2 OF 6
ERP: 1301003067
