TM
CNX722 Series
0.866” (22mm) Ruggedized
LED Panel Mount Indicator
Ruggedized CNX722 Series with built-in LED offers fast, easy installation
in harsh environments.
LED
COLOR
OPTIONS
MOUNTING
HOLE
Ø 22mm
WIDE
VIEWING
ANGLE
FlexVolt™
120 VAC
IP67
Applications
•
Industrial Machinery
•
Transportation Dashboards
•
Instrument Panels
•
Control Cabinets
• Disinfection and Sterilization
•
Switching Stations
• Slot, Gaming and Vending Machines
•
Outdoor Signs
Key Features
• Safety Applications
• Military Aircraft
• Outdoor visibility in direct sunlight.
• For panel hole diameter: 0.866" (22mm)
• Designed for extreme harsh and outdoor
environments.
• Variety of connection options for fast, easy
• Built-in LED can be used with FlexVolt
TM
• Fast pitch threads ease assembly, requiring
• Nut assembly by finger-tightening or with 1
inch hex key.
• RoHS and REACH Compliant.
only one turn.
(5 to 28 VDC) or 120VAC circuits
installation.
• Available in six solid colors (red, green,
white, blue, soft yellow and yellow).
• Wide Viewing Angle
• Resistant to shock and vibration.
• Optional bezel available in many colors
• Moisture sealed, IP67, protected from total
dust ingress and withstanding water immersion
between 15 cm and 1 meter for 30 minutes.
• Lead wire options with custom wire length
• Other colors (single and bicolor) are available
upon request.
available.
your first call for illuminated components
www.vcclite.com
1
1.800.522.5546
08/17 Rev 3

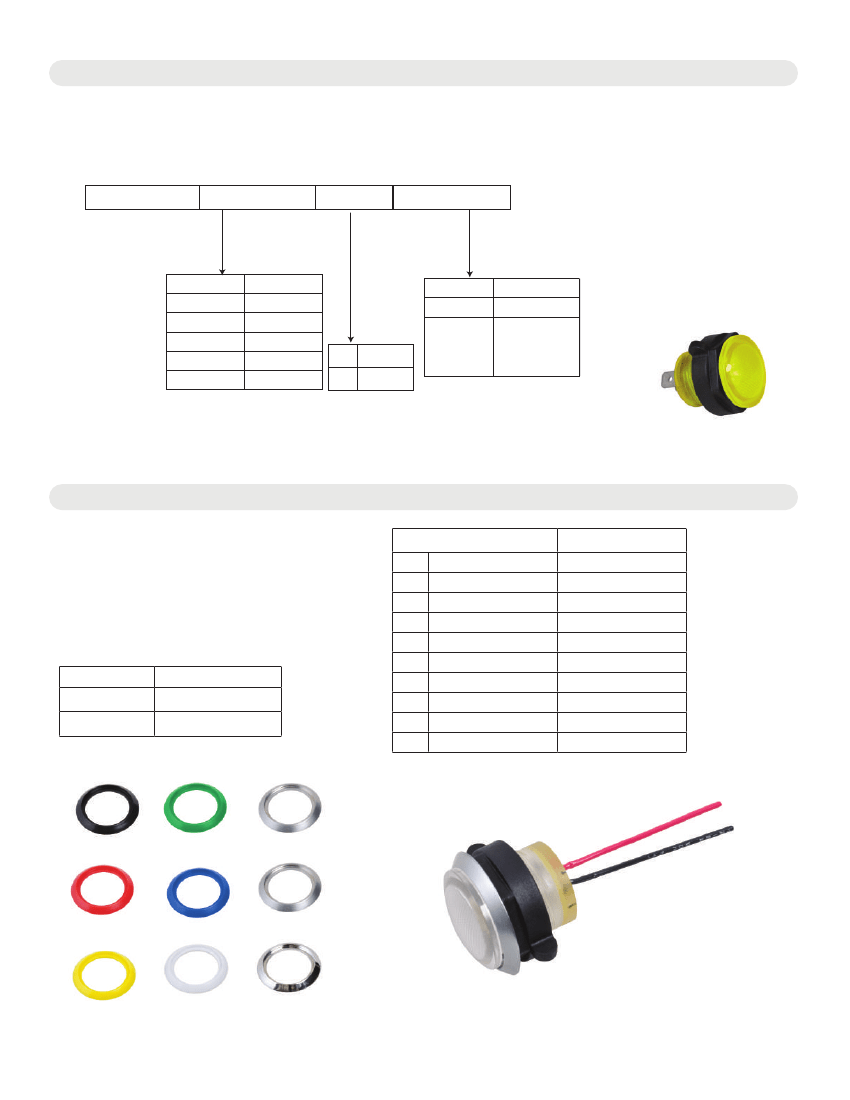

Ordering Data
The CNX722 Series is available in a range of standard features and options.
To specify your Panel Mount Indicator, select one option from each column.
LED Color
Voltage
Termination Style
CNX722C
CNX722C:
Colored Body
200
400*
401
500
600
900
Example:
CNX722C401120T
Yellow
120V
Quick Disconnect
Screw Block
Wire Leads
Quick
Disconnect/
Terminals
Red
Soft Yellow
Yellow
Green
Blue
White
B*
W
FV
120
5-28VDC
120VAC
T
* Not Available for the 120VAC Version
Accessories
Optional sealed bezel: BZL722-
Sealed Bezel IP67
•
Material - either plastic or metal
•
For indoor and outdoor applications, protects
against falling dirt. Also protects against water or
oil and the effects of ice formation.
moisture seal
bezel-plastic
bezel-metal
ABS, UL 94-HB
aluminum alloy
EPDM
0
2
4
5
6
9
A
B
C
Bezel Color
color
black
red
yellow
green
blue
white
actual aluminum
brushed aluminum
chrome
Material
plastic
plastic
plastic
plastic
plastic
plastic
metal
plastic
plastic
Example:
CNX722C900FVW
White
with BZL722-A
Actual Aluminum
Bezel
0
5
A
2
6
B
4
9
C
www.vcclite.com
1.800.522.5546
08/17 Rev 3
your first call for illuminated components

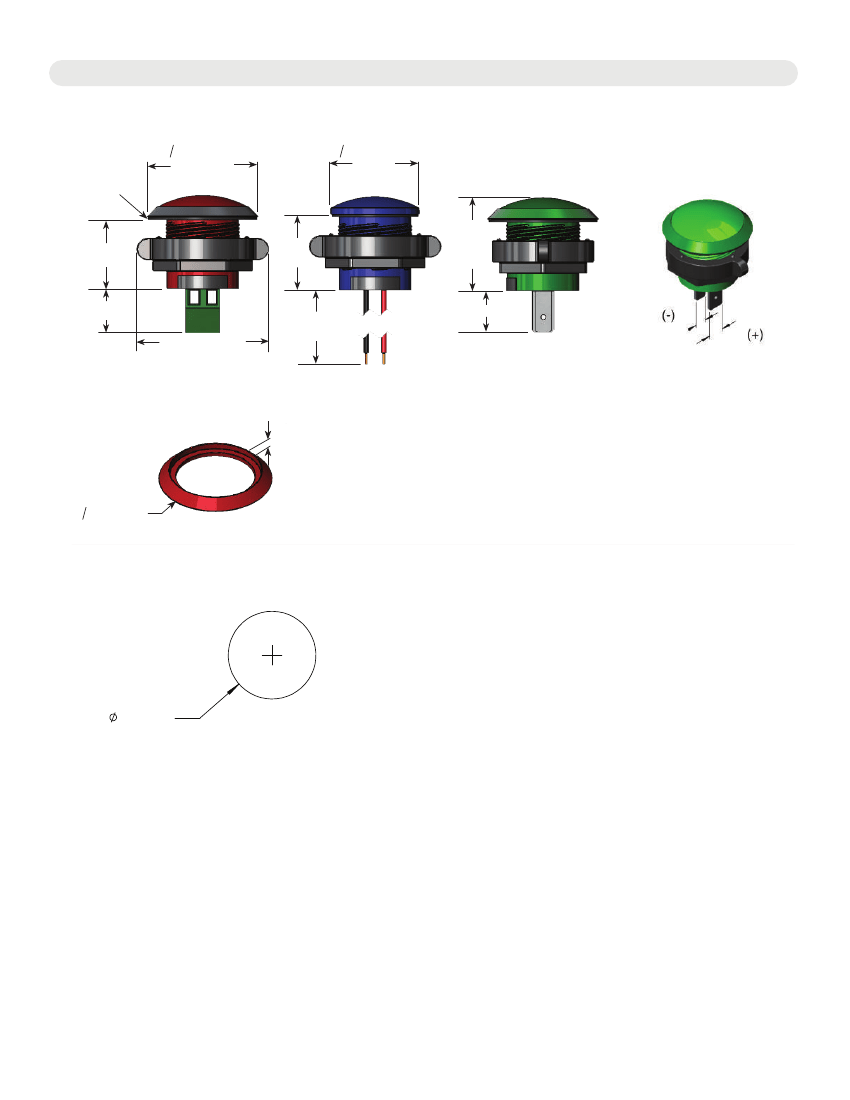

2
