1-1703930-2 datasheet, PDF - EEWORLD Datasheet

1-1703930-2: DescriptionNANOMQS, RECEPTACLE TERMINAL; CategoryThe connector; File Size167KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1703930-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1703930-2	-	-	View	Buy Now

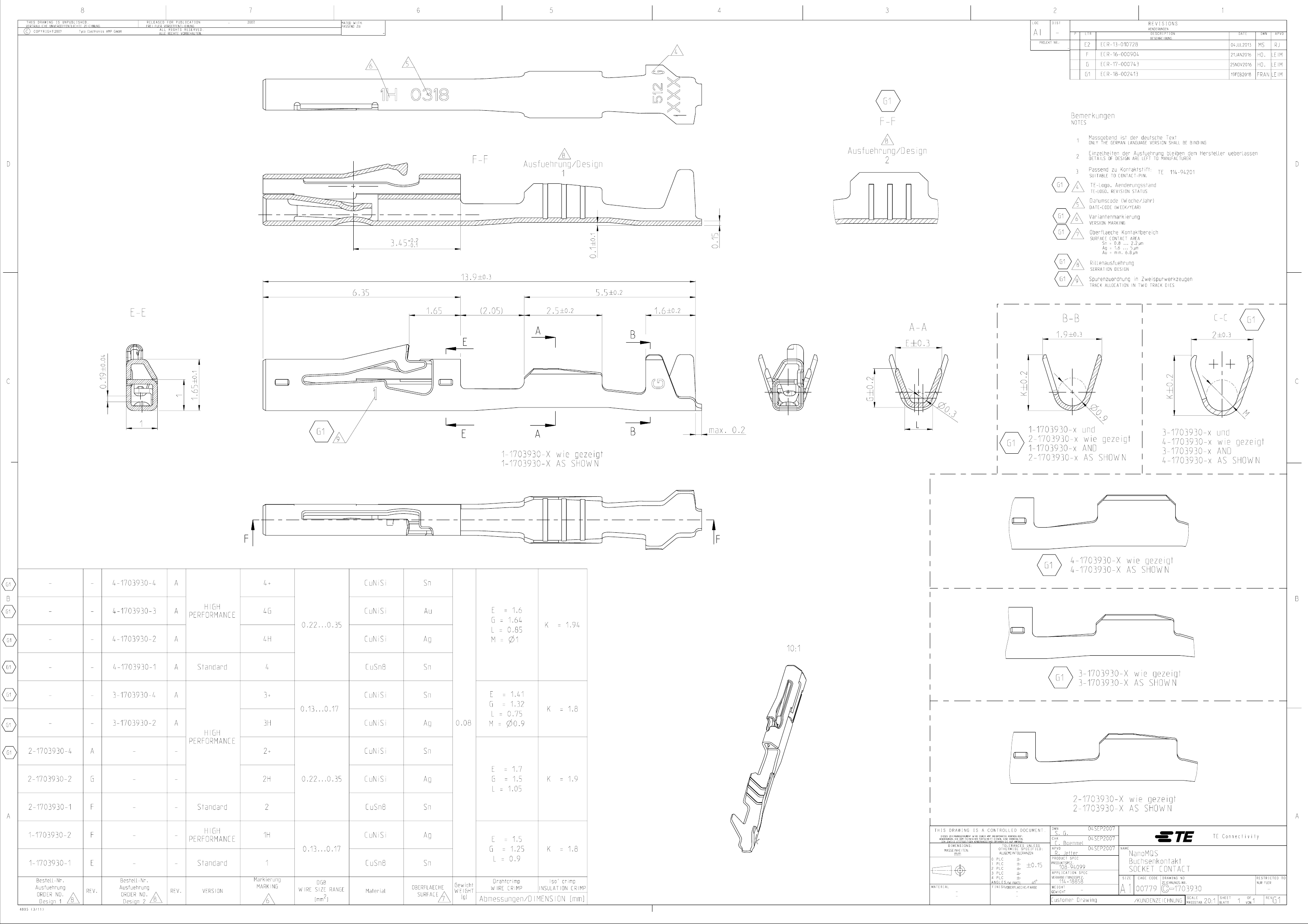

NANOMQS, RECEPTACLE TERMINAL

Parameter Name	Attribute value
Sealable	no
Main locking features	lock gun
Wire type	copper
Socket type	180°
Crimp type	F type crimp
Typical rated current (A)	3
Terminal and connector types	Receptacle
Width of docking male end	.5 mm [ .02 in ]
Butt male end thickness	.4 mm [ .016 in ]
Contact surface plating	Silver(Ag)
Terminal termination area plating material	Tin (Sn)
Termination method	crimp
Wire Size (AWG)	26 – 25, 26 – 25
Wire Size (mm²)	.13 – .17
Wire diameter lookup (AWG)	26
Wire diameter search (mm²)	.13, .17
Wire insulation diameter	.85 – 1.1 mm [ .033 – .043 in ]
Working group temperature range	-40 – 170 °C [ -40 – 338 °F ]
Agencies/Standards	LV214
Encapsulation method	roll
Terminal conduction	0 – 24 A (low power)

	1-1703930-2	2-1703930-2
Description	NANOMQS, RECEPTACLE TERMINAL	NANOMQS, RECEPTACLE TERMINAL
Sealable	no	no
Main locking features	lock gun	lock gun
Wire type	copper	copper
Socket type	180°	180°
Crimp type	F type crimp	F type crimp
Typical rated current (A)	3	6
Terminal and connector types	Receptacle	Receptacle
Width of docking male end	.5 mm [ .02 in ]	.5 mm [ .02 in ]
Butt male end thickness	.4 mm [ .016 in ]	.4 mm [ .016 in ]
Contact surface plating	Silver(Ag)	Silver(Ag)
Terminal termination area plating material	Tin (Sn)	Tin (Sn)
Termination method	crimp	crimp
Wire Size (AWG)	26 – 25, 26 – 25	24 – 22, 24 – 22
Wire Size (mm²)	.13 – .17	.22 – .35
Wire diameter lookup (AWG)	26	22, 23
Wire diameter search (mm²)	.13, .17	.2, .22, .25, .3, .35
Wire insulation diameter	.85 – 1.1 mm [ .033 – .043 in ]	.95 – 1.3 mm [ .037 – .051 in ]
Working group temperature range	-40 – 170 °C [ -40 – 338 °F ]	-40 – 170 °C [ -40 – 338 °F ]
Agencies/Standards	LV214	LV214
Encapsulation method	roll	roll
Terminal conduction	0 – 24 A (low power)	0 – 24 A (low power)
